Sewing motor
108 Service Instructions M-TYPE DELTA - 00.0 - 12/2019
18.2 Disassembling the sewing motor

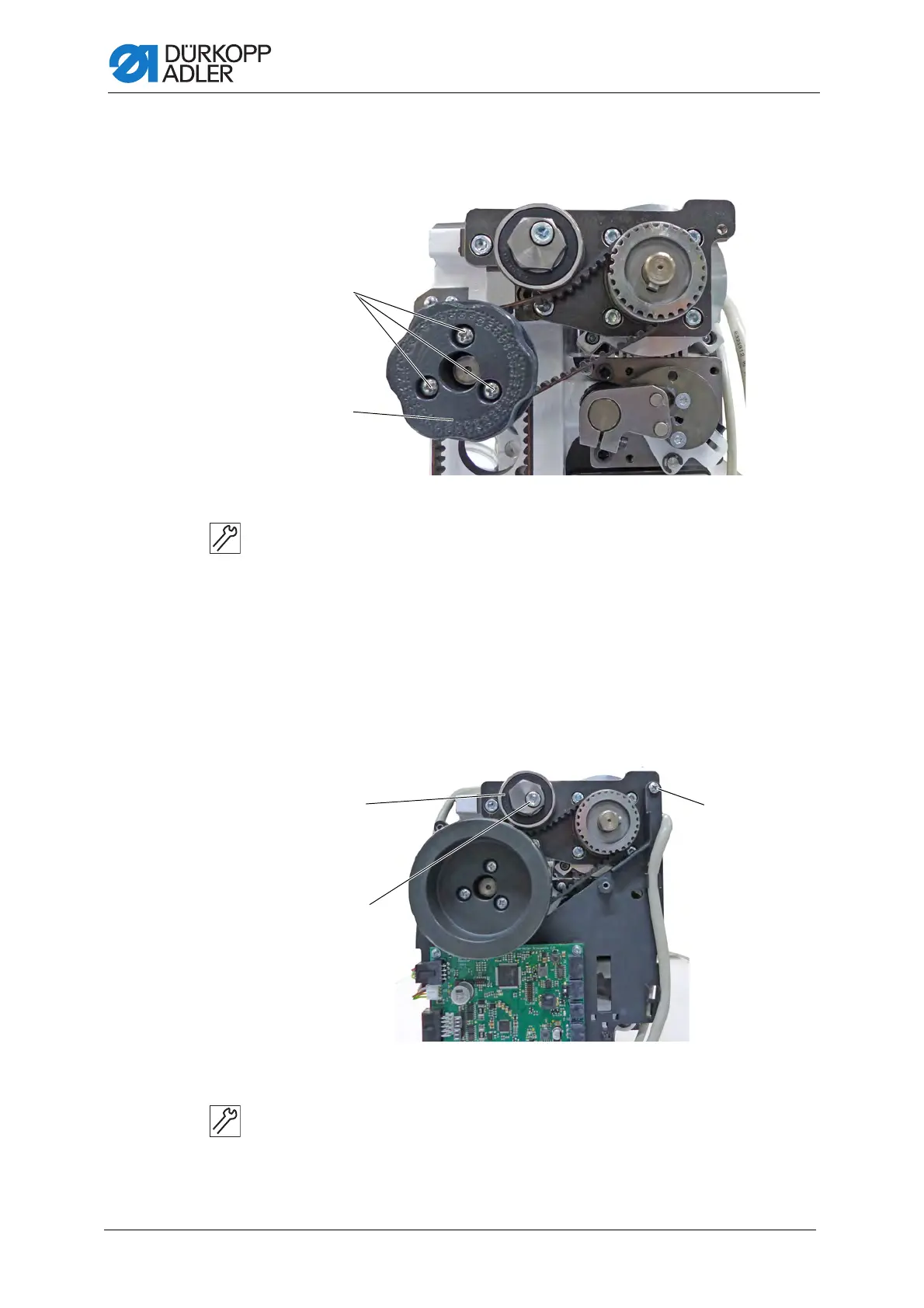

Fig. 91: Disassembling the sewing motor (1)
To disassemble the sewing motor:
1. Switch off the machine.
2. Disassemble the arm cover ( p. 19).
3. Disassemble the toothed belt cover ( p. 23).
4. Disassemble the motor cover ( p. 22).
5. Disassembling the front cover ( p. 20)
6. Loosen screws (1) on the handwheel (2).
7. Remove the handwheel (2).
Fig. 92: Disassembling the sewing motor (2)
8. Loosen the screw (5).
The holder is not taken off.
(1) - Screws (2) - Handwheel
①
②
(3) - Tensioning roller
(4) - Screw
(5) - Screw
③
④
⑤
