Adjusting feed dog and needle bar linkage
Service Instructions M-TYPE DELTA - 00.0 - 12/2019 47
10. Tighten the threaded pins (1).
In the process, make sure that the feed dog height has the correct
setting ( p. 51).
11. Finish the service routine.
7.3 Aligning the needle bar linkage sideways

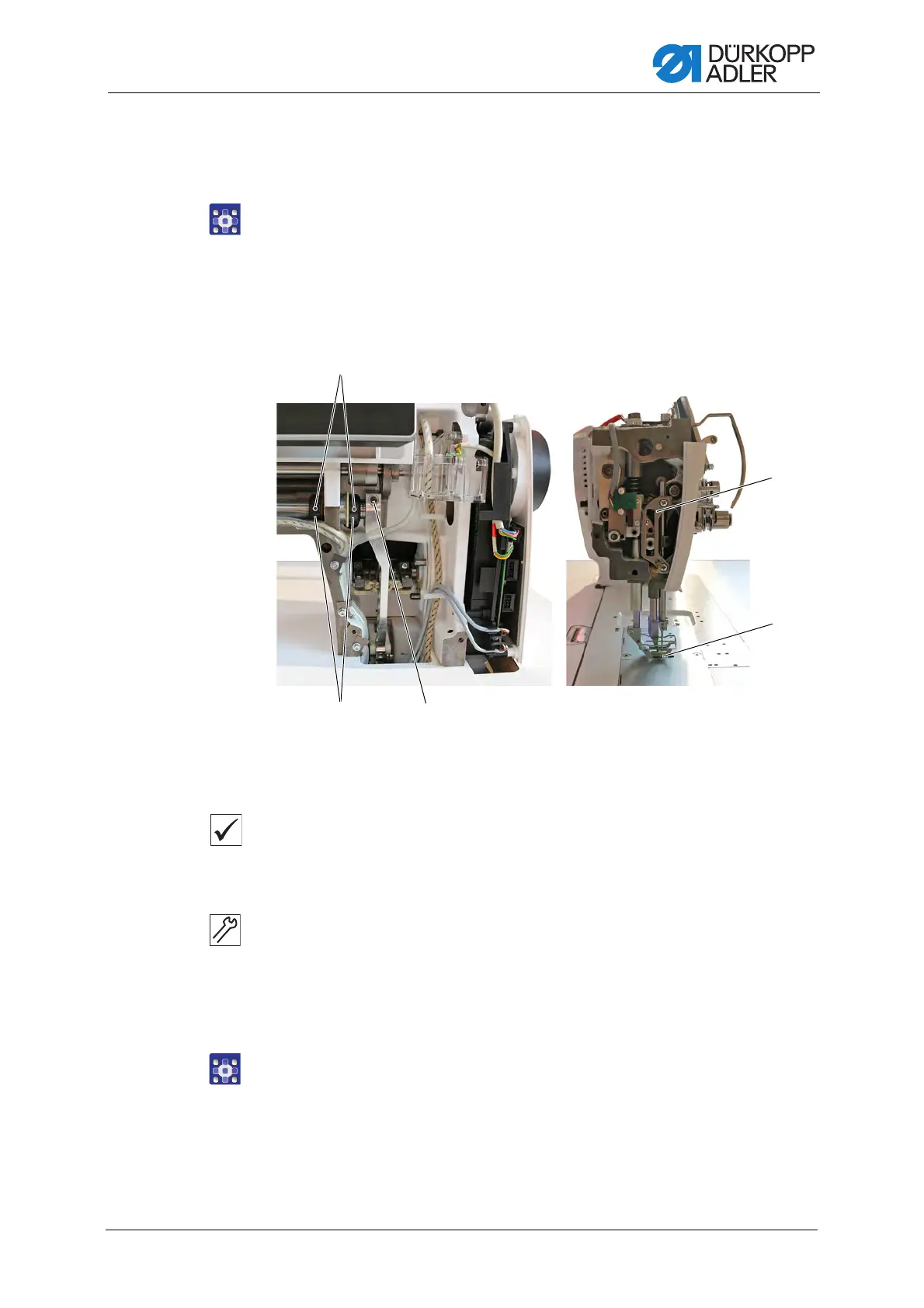

Fig. 33: Aligning the needle bar linkage sideways (1)
Proper setting
If the stitch length is 0, the needle pierces exactly in the center of the
needle hole.
To align the needle bar linkage sideways:
1. Switch off the machine.
2. Disassemble the front cover ( p. 20).
3. Disassemble the head cover ( p. 21).
4. Switch on the machine.
5. Execute the service routine Needle-Hook > Needle bar ( p. 14).
The software is used to define the necessary presettings on the
machine.
6. Loosen the threaded pins (1) on the set collars (2).
7. Loosen the screw (3).
(1) - Screws
(2) - Set collars
(3) - Screw
(4) - Needle hole
(5) - Needle bar linkage
