Toothed belt
102 Service Instructions M-TYPE DELTA - 00.0 - 12/2019

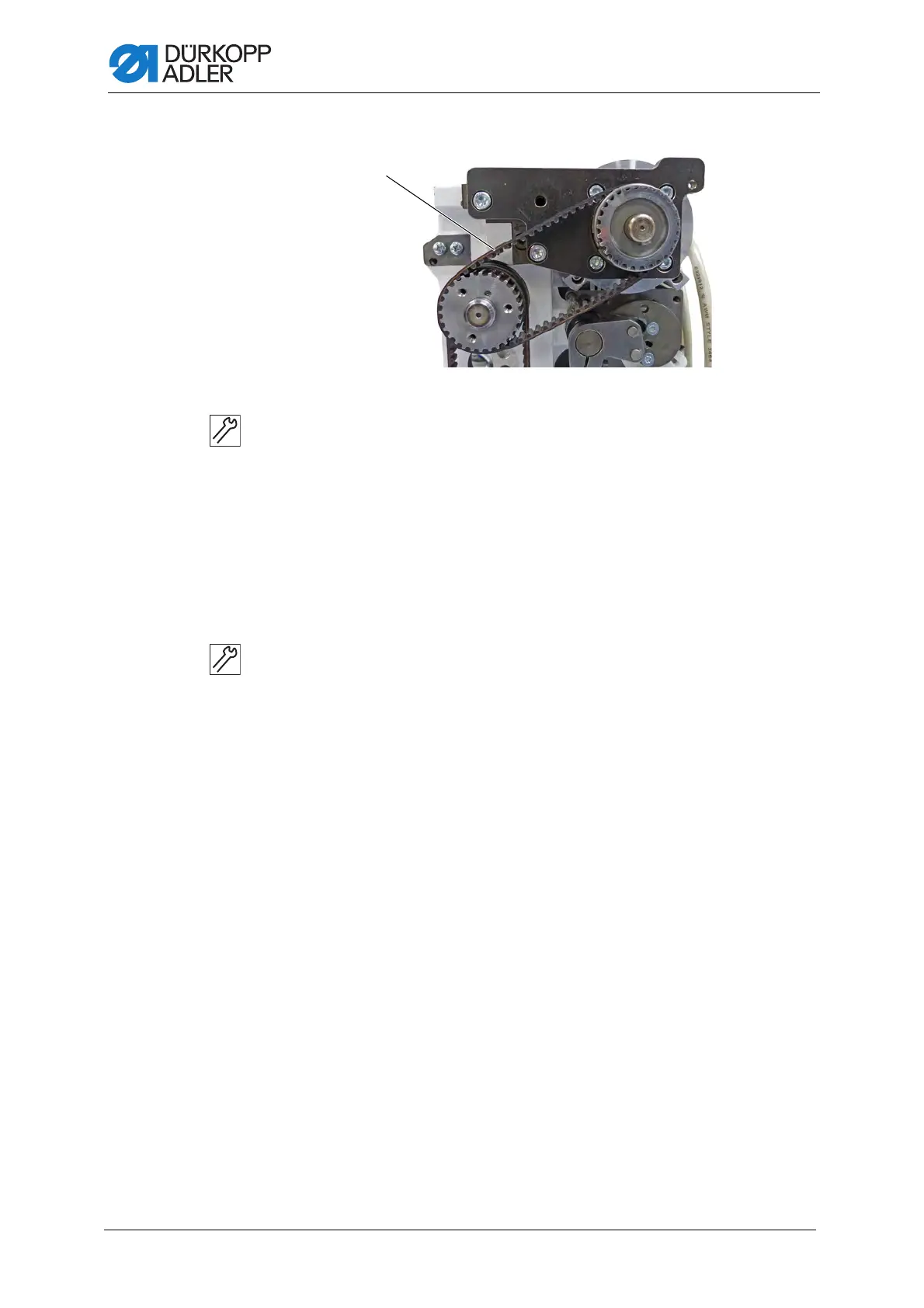

Fig. 84: Changing the upper toothed belt (2)
8. Remove the toothed belt (3).
9. Place the new toothed belt.
10. Fit the tensioning roller (1).
11. Use a wrench to tension the tensioning roller (1).
 It should not be possible to twist the toothed belt more than 45°.
12. Tighten the screw (2).
17.2 Changing the lower toothed belt
To change the lower toothed belt:
1. Switch off the machine.
2. Disassemble the front cover ( p. 20).
3. Disassemble the arm cover ( p. 19).
4. Disassemble the handwheel and toothed belt cover ( p. 23).
5. Disassemble the motor cover ( p. 22).
(3) - Toothed belt
③
