Long thread trimmer (LFA)
92 Service Instructions M-TYPE DELTA - 00.0 - 12/2019
15 Long thread trimmer (LFA)
15.1 Adjusting the height of the thread-pulling knife

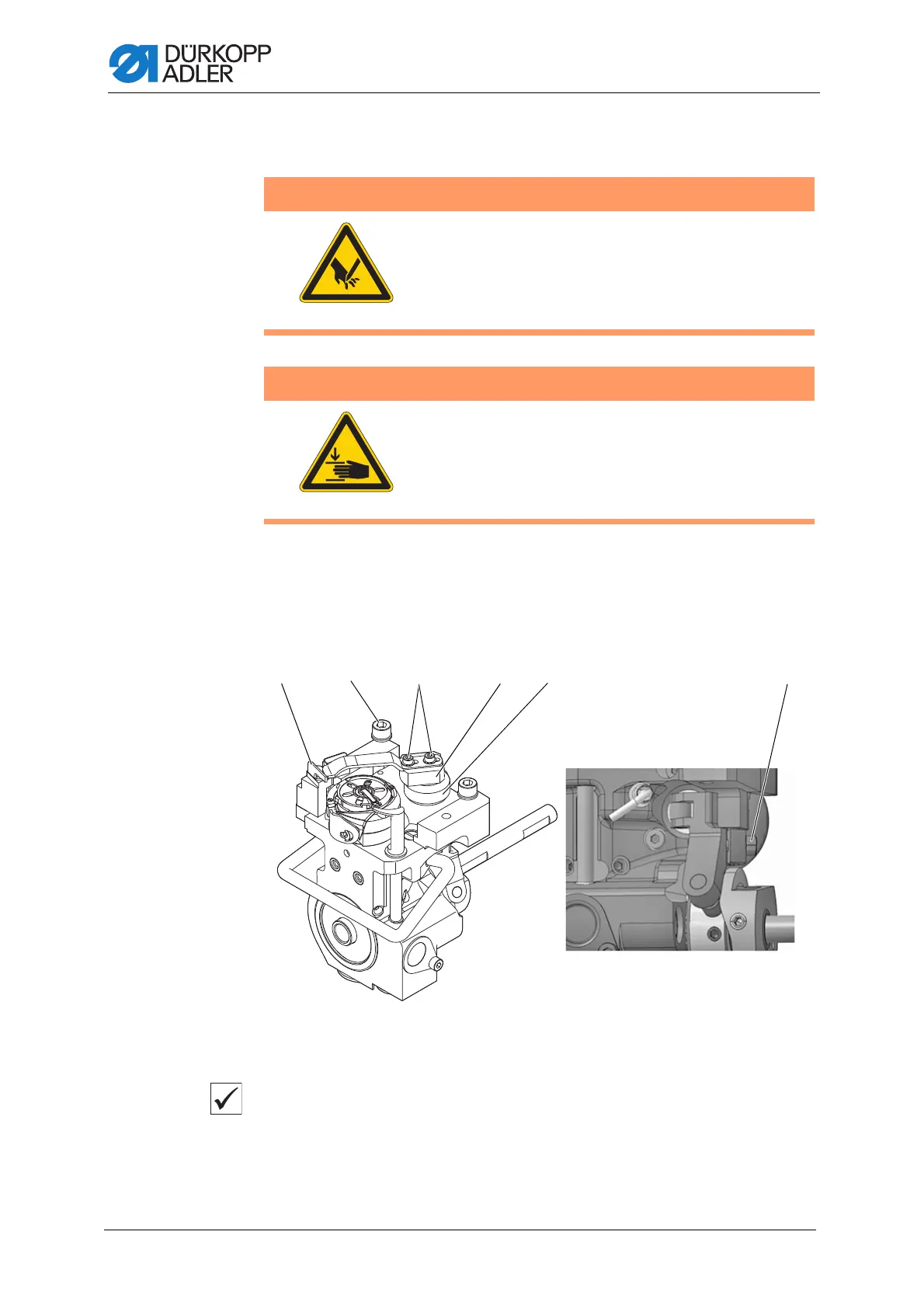

Fig. 76: Adjusting the height of the thread-pulling knife
Proper setting
The thread-pulling knife (2) pivots as closely as possible above the hook
and is at the same height as the counter blade (1).
WARNING
Risk of injury from sharp parts!
Cutting injuries may be sustained.
Switch off the machine before setting the long
thread trimmer.
WARNING
Risk of injury from moving parts!
Crushing possible.
Switch off the machine before setting the long
thread trimmer.
(1) - Counter blade
(2) - Thread-pulling knife
(3) - Screws
(4) - Knife carrier
(5) - Set collar
(6) - Screw
①② ③ ④⑤ ⑥
