Position of the hook and needle
54 Service Instructions M-TYPE DELTA - 00.0 - 12/2019
Order
Then, check the following settings:
• Position of the needle guard ( p. 56)
• Timing of cutting by the thread trimmer ( p. 82); ( p. 96)
• a needle with the correct needle strength has been inserted
8.2 Adjusting the hook side clearance
Order
First, check the following settings:
• Needle bar linkage is aligned correctly ( p. 47), ( p. 49)
• Looping stroke position ( p. 52)

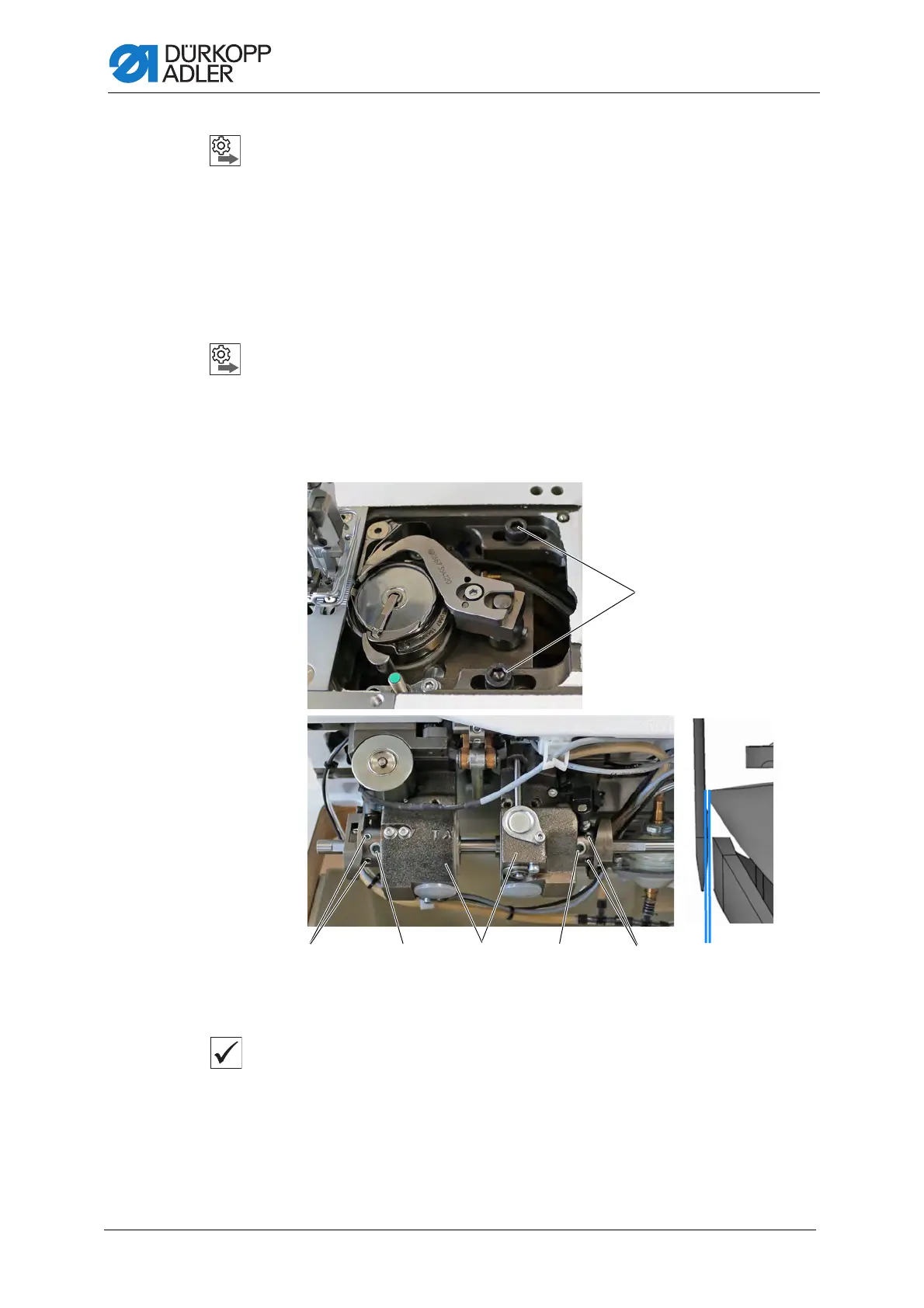

Fig. 40: Adjusting the hook side clearance
Proper setting
The distance between the hook tip and the groove of the needle is no
greater than 0.1 mm.
(1) - Threaded pins
(2) - Threaded pin
(3) - Hook support
(4) - Screws
Max. 0.1 mm
①② ①②③
④
