3.9 Adjusting the handwheel into position

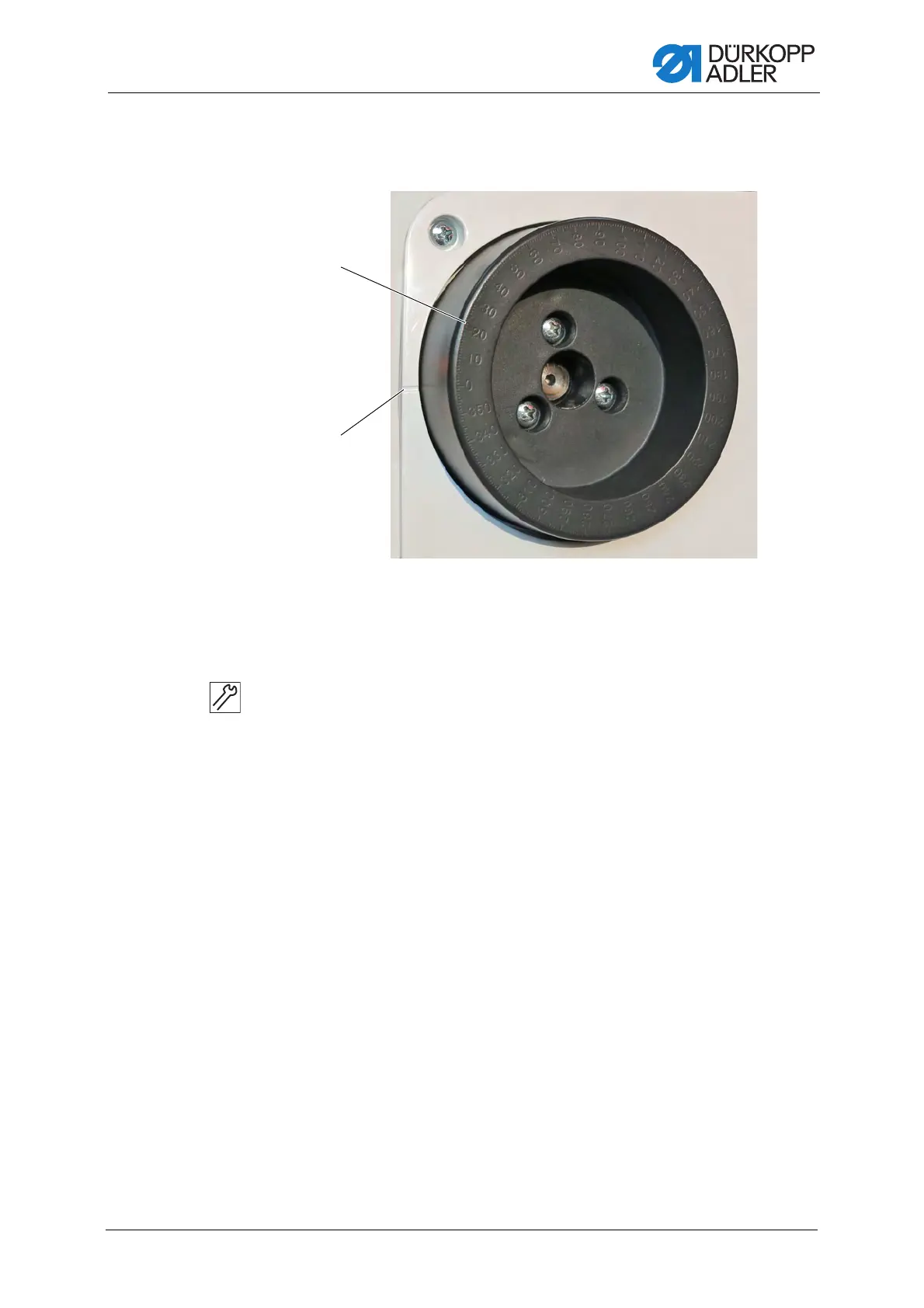

Fig. 22: Adjusting the handwheel into position
For some settings, the graduated scale on the handwheel has to be
moved manually to a certain position.
In some setting programs, the handwheel is adjusted electronically.
To adjust the handwheel into position:
1. Turn the handwheel until the specified number on the graduated
scale (1) is next to the marking (2).
(1) - Graduated scale (2) - Marking
