Winder
Service Instructions M-TYPE DELTA - 00.0 - 12/2019 77
12.3 Adjusting the bobbin thread guide

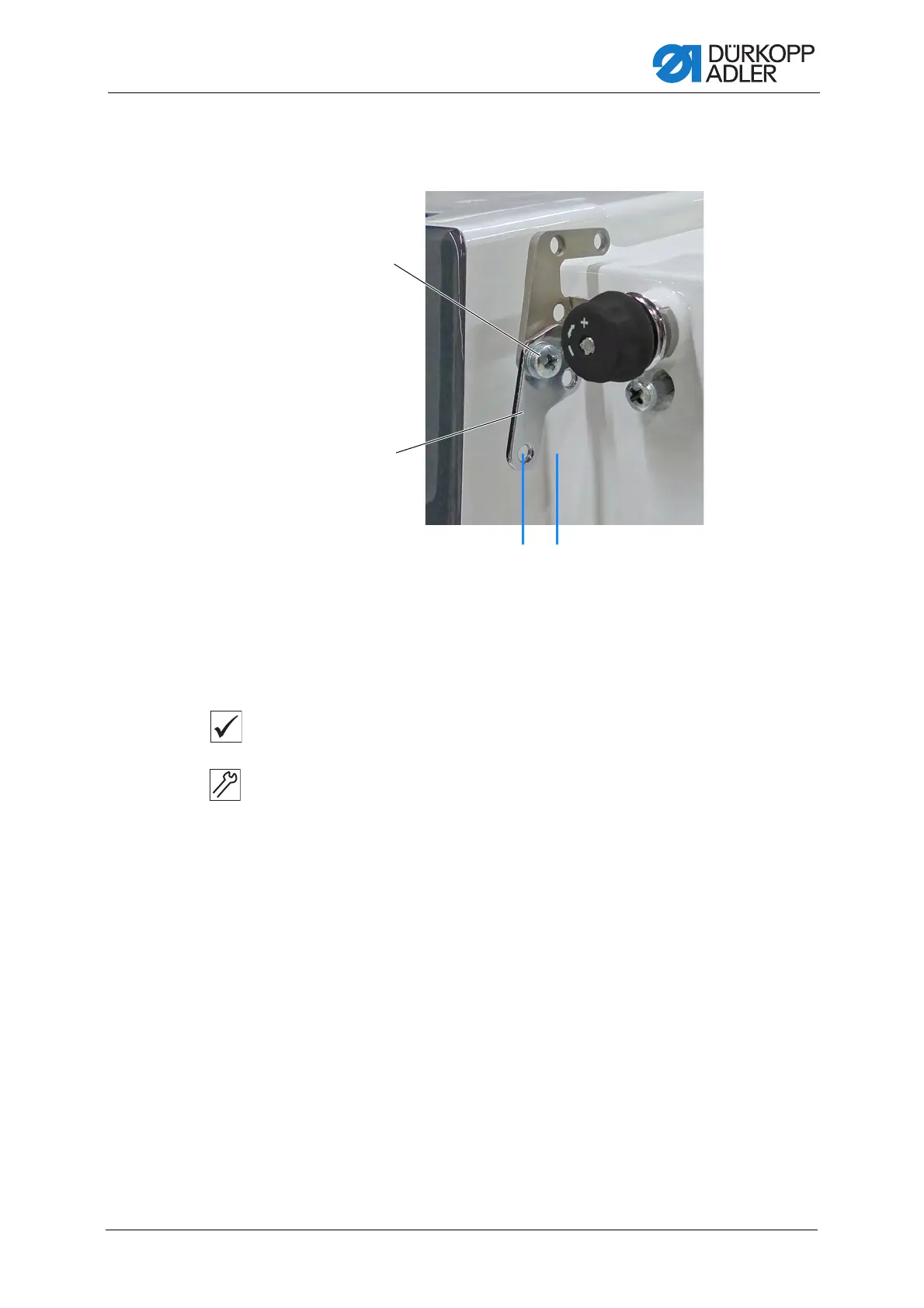

Fig. 63: Adjusting the bobbin thread guide
The position of the bobbin thread guide determines how the bobbin thread
is wound onto the bobbin.
The distance preset at the factor between bobbin thread guide and machine
housing is 20.9 mm
Proper setting
The bobbin thread is wound on evenly over the entire width of the bobbin.
To adjust the bobbin thread guide:
1. Loosen the screw (1).
2. Turn the bobbin thread guide (2):
• The bobbin thread will be wound on further to the front:
Turn the bobbin thread guide (2) to the front
• The bobbin thread will be wound on further to the rear:
Turn the bobbin thread guide (2) to the rear
3. Tighten the screw (1).
(1) - Screw (2) - Bobbin thread guide
