3.4.5 Disassembling and assembling the motor cover

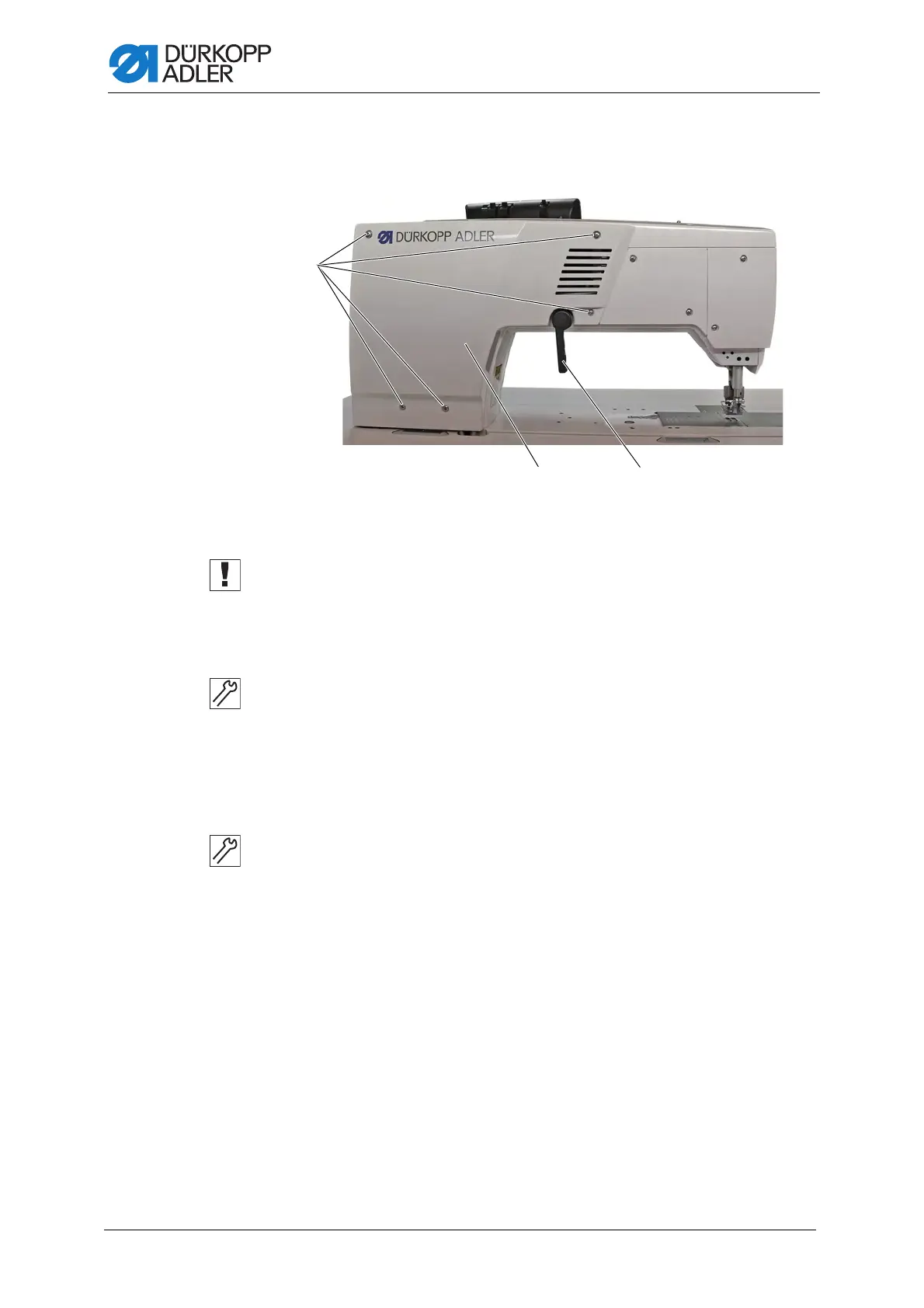

Fig. 10: Disassembling and assembling the motor cover
Important
When disassembling and assembling the motor cover, be sure not to pull
off any cables.
Disassembling the motor cover
To disassemble the motor cover:
1. Set the lever (3) vertical.
2. Loosen the screws (1).
3. Remove the motor cover (2).
Assembling the motor cover
To assemble the motor cover:
1. Set the lever (3) vertical.
2. Place the motor cover (2).
3. Tighten the screws (1).
(1) - Screws
(2) - Motor cover
(3) - Lever
③②
①
