Short thread cutter (KFA)
88 Service Instructions M-TYPE DELTA - 00.0 - 12/2019
14.3 Adjusting the bobbin case support

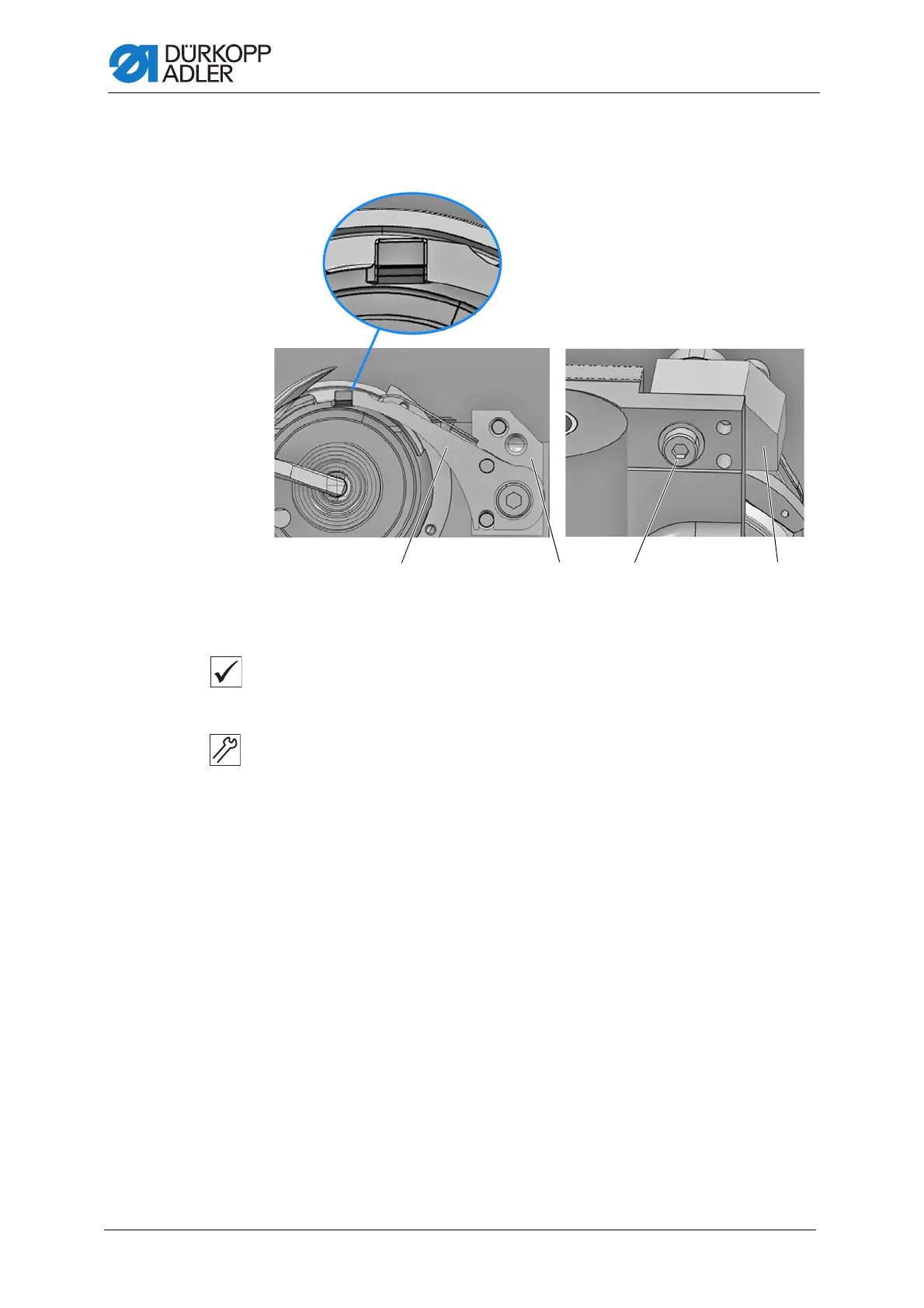

Fig. 72: Adjusting the bobbin case support
Proper setting
The front edge of the bobbin case support (1) lines up flush with the nose
of the bobbin case.
To adjust the bobbin case support:
1. Loosen the screw (3) on the underside of the hook bearing.
2. Turn the block (2) with the bobbin case support (1) such that the front
edge of the bobbin case support (1) lines up flush with the nose of
the bobbin case.
3. Tighten the screw (3).
(1) - Bobbin case support
(2) - Block
(3) - Screw
