Adjusting feed dog and needle bar linkage
46 Service Instructions M-TYPE DELTA - 00.0 - 12/2019
7.2 Moving the feed dog carrier sideways
The feed dog carrier is connected to the stitch regulator gear via the pusher
shaft and can be moved on this shaft.

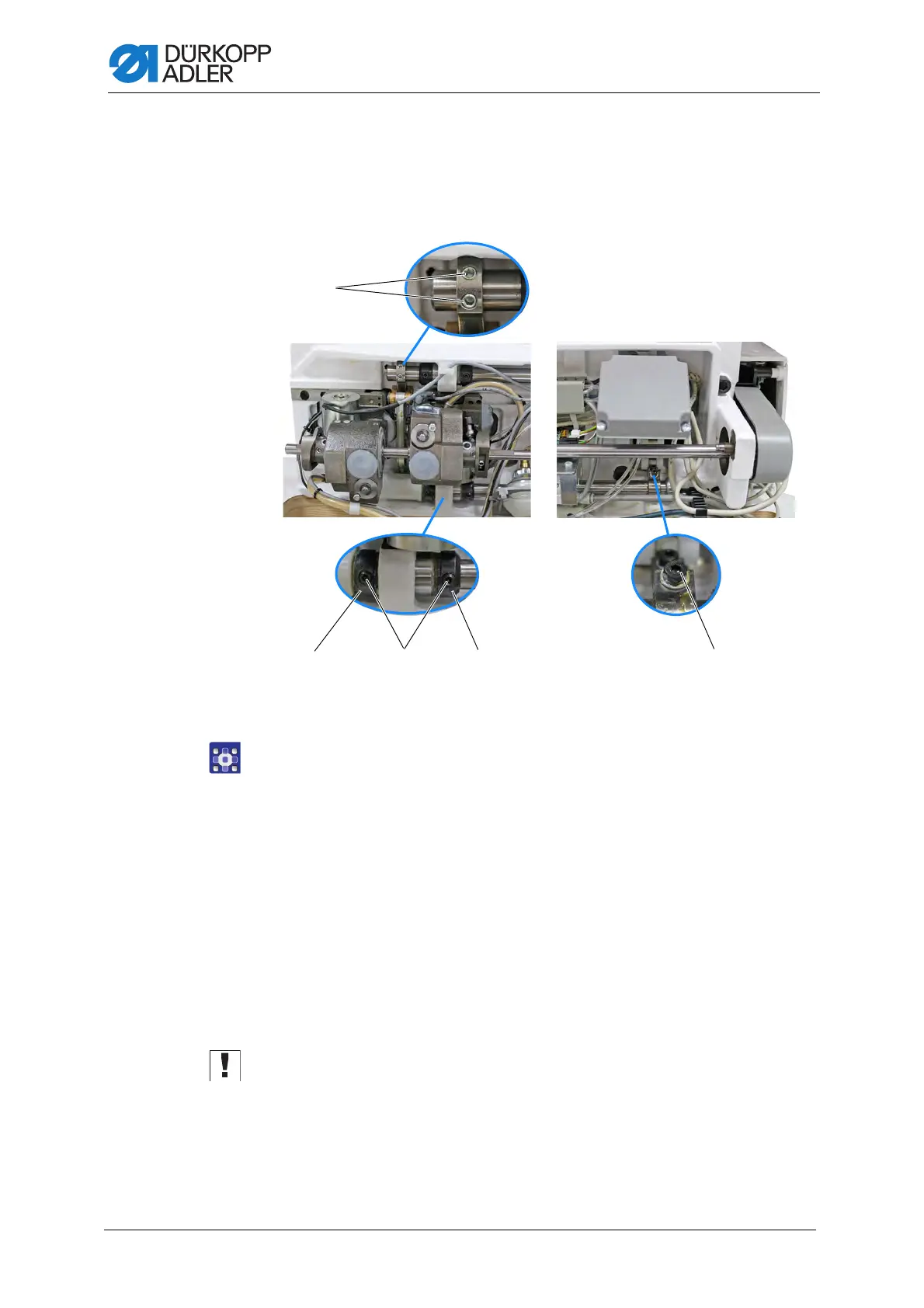

Fig. 32: Moving the feed dog carrier
To move the feed dog carrier sideways:
1. Execute the service routine Feed dog > Position to
needle ( p. 14).
The software is used to define the necessary presettings on the
machine.
2. Tilt the machine head ( p. 18).
3. Loosen the threaded pins (1).
4. Loosen the threaded pins (3).
5. Loosen the screw (4).
6. Move the feed dog carrier perpendicular to the sewing direction so that
the feed dog is exactly in the center of the throat plate cutout.
7. Push the set collars (2) toward each other as far as they will go.
Important
Make sure that the pusher shaft is tightened by the set collars and does
not have any axial play.
8. Tighten the screw (4).
9. Tighten the threaded pins (3).
(1) - Threaded pins
(2) - Set collars
(3) - Threaded pins
(4) - Screw
