Sewing motor

Service Instructions M-TYPE DELTA - 00.0 - 12/2019 109

9. Loosen the screw (4) on the tensioning roller (3).

 The toothed belt tension is slack.

10. Remove the tensioning roller (3).

Make sure not to lose the washer.

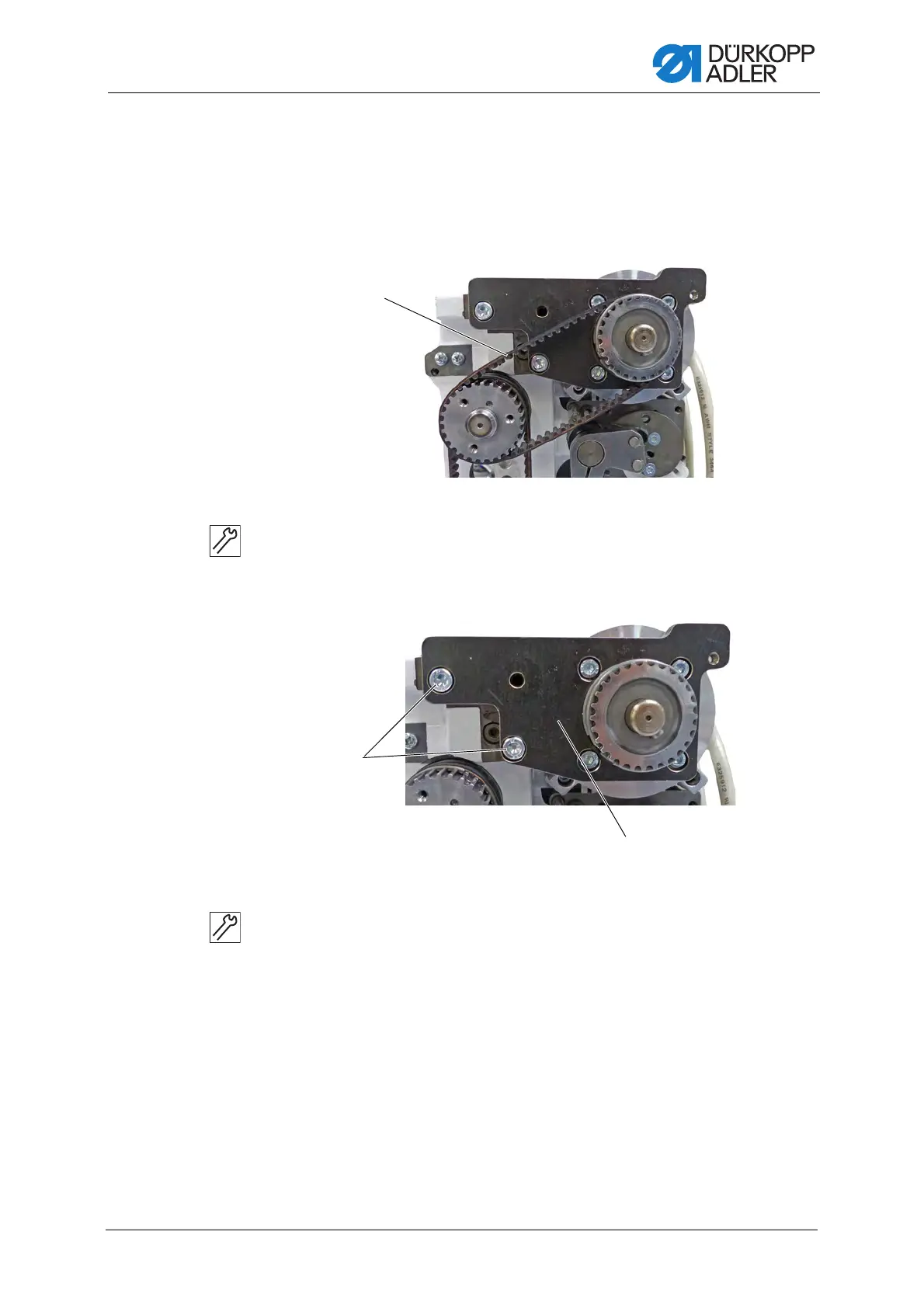

Fig. 93: Disassembling the sewing motor (3)

11. Remove the toothed belt (6).

Fig. 94: Disassembling the sewing motor (4)

12. Loosen the screws (7) on the support plate (8).

13. Remove the support plate (8) together with the motor.

(6) - Toothed belt

⑥

(7) - Screw (8) - Support plate

⑦

⑧
