Sewing motor
110 Service Instructions M-TYPE DELTA - 00.0 - 12/2019

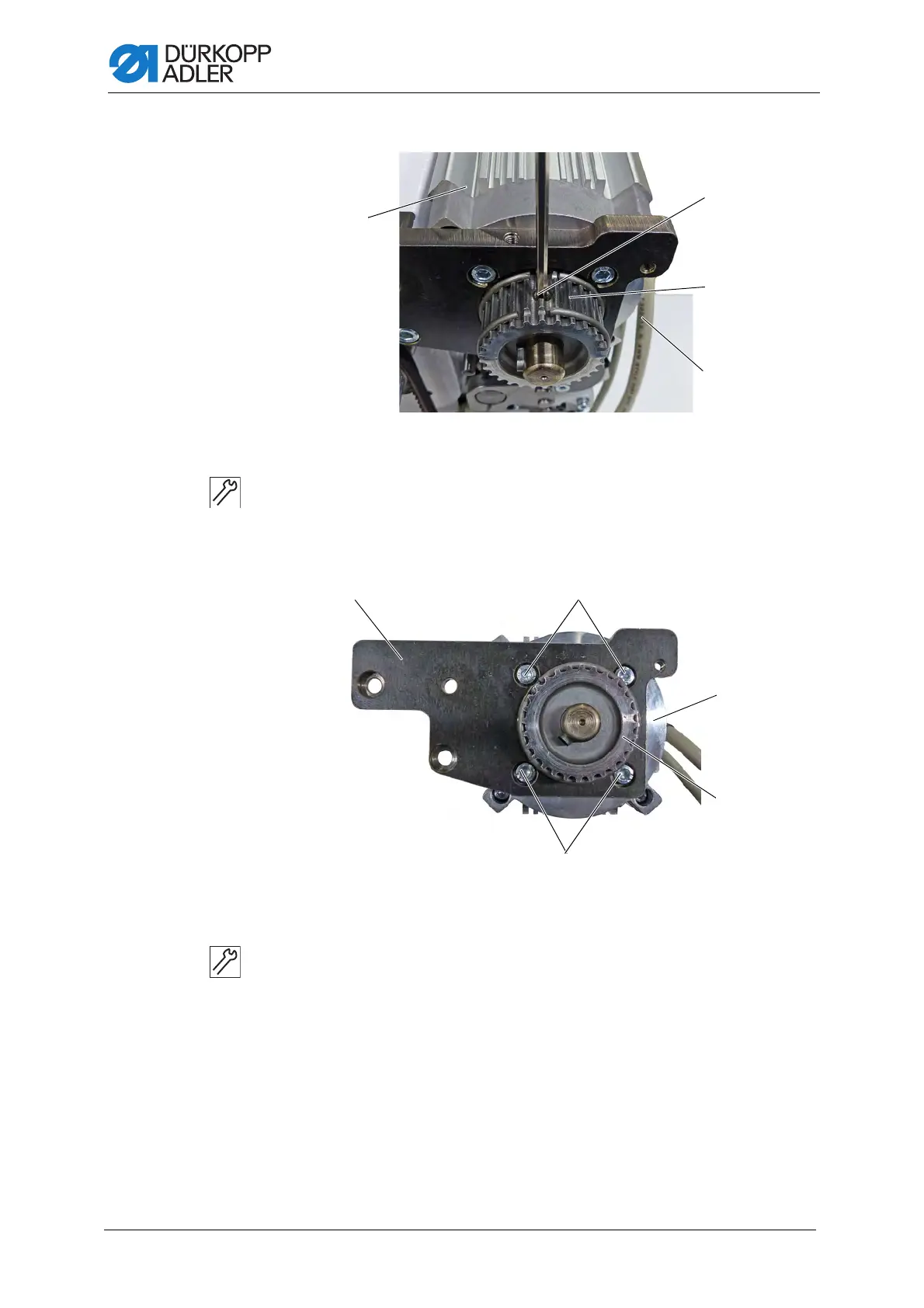

Fig. 95: Disassembling the sewing motor (5)
14. Trace the cables (10) from the motor (9) to the control and pull the plug
out of the control.
15. Loosen the threaded pin (12) on the toothed belt wheel (11).
Fig. 96: Disassembling the sewing motor (6)
16. Pull off the toothed belt wheel (11).
17. Loosen the screws (13) on the support plate (8).
18. Pull off the motor (9) and replace it with a new one ( p. 111).
(9) - Motor
(10) - Cable
(11) - Toothed belt wheel
(12) - Threaded pin
⑨
⑩
⑫
⑪
(8) - Support plate
(9) - Motor
(11) - Toothed belt wheel
(13) - Screws
⑧
⑬
⑬
⑨
⑪
