Sewing feet
Service Instructions M-TYPE DELTA - 00.0 - 12/2019 69

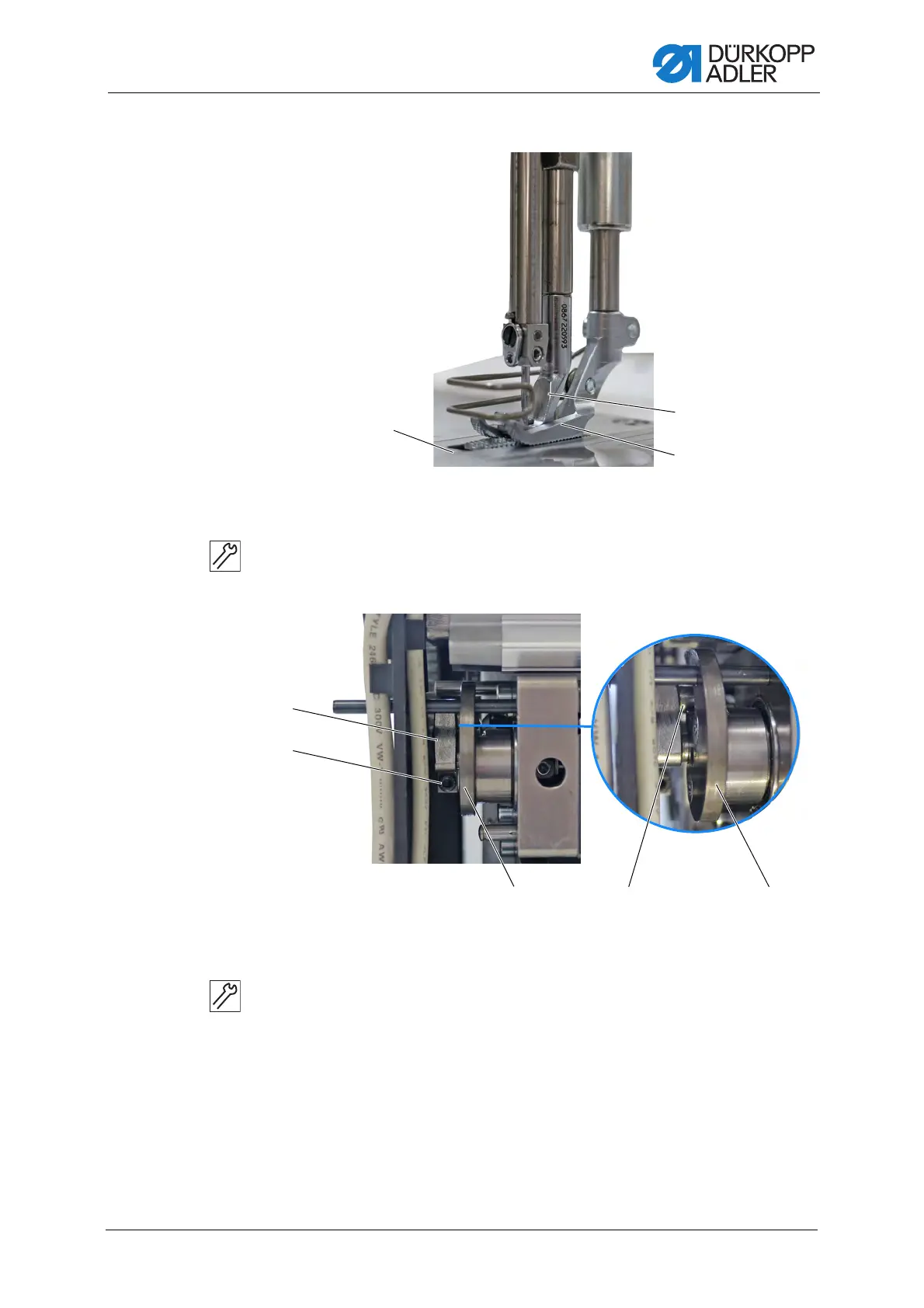

Fig. 55: Adjusting the sewing foot pressure and sewing foot lift (2)
5. Presser foot (4) and walking foot (3) must rest on the throat plate (2):
if necessary, align using the handwheel.
Fig. 56: Adjusting the sewing foot pressure and sewing foot lift (3)
6. Loosen the screw (6).
7. Turn the curve (7) until the roller (8) is seated in the recess of the
curve (7).
8. Align the lever (5) sideways: The roller (8) must be flush with the
curve (7).
9. Tighten the screw (6).
10. Remove the locking peg (1).
(2) - Throat plate
(3) - Walking foot
(4) - Presser foot
(5) - Lever
(6) - Screw
(7) - Curve
(8) - Roller
