Maintenance
200 Service Instructions M-TYPE DELTA - 00.0 - 12/2019
Assembling and aligning the thread clamp

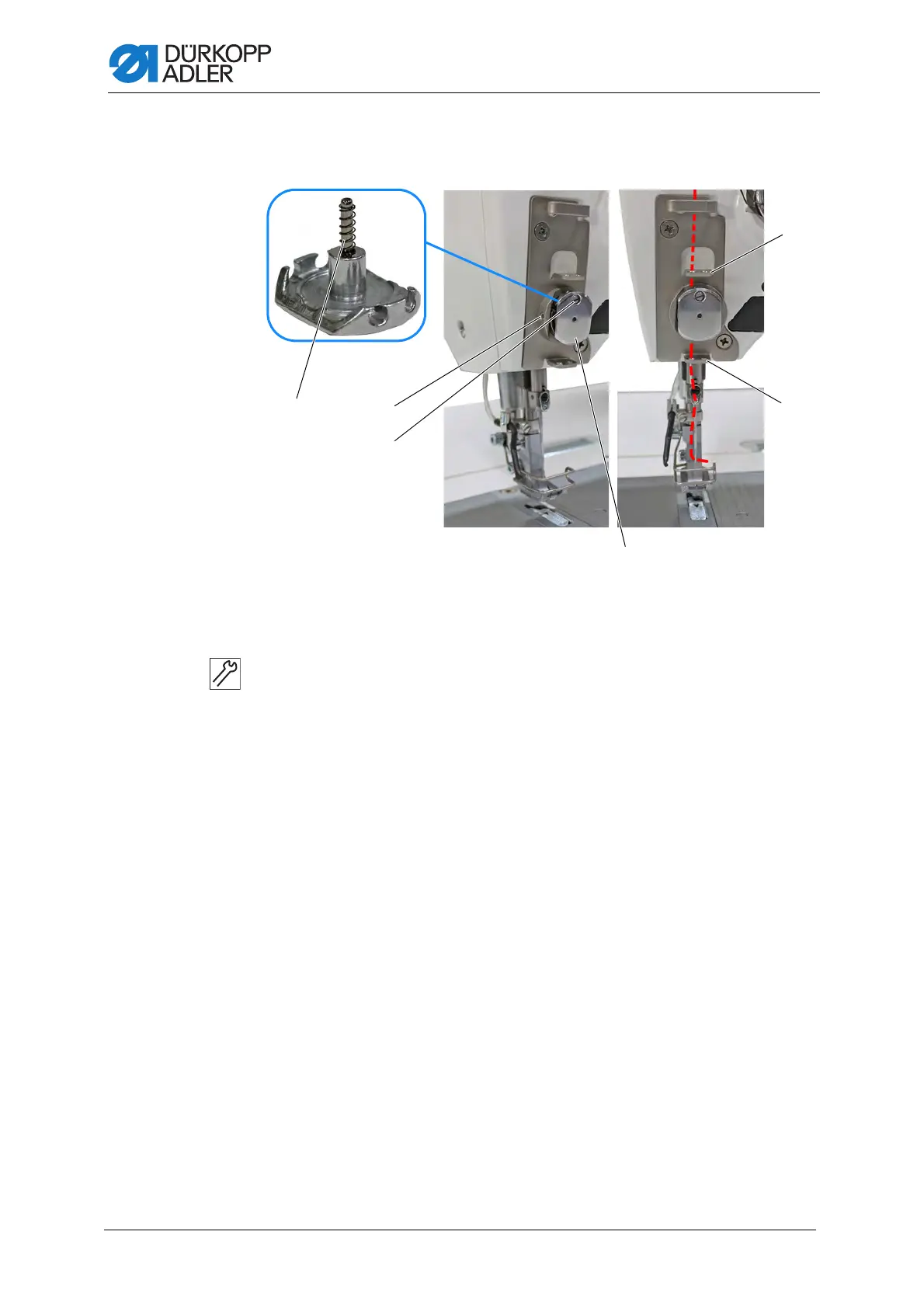

Fig. 139: Cleaning the thread clamp (2)
To assemble and align the thread clamp:
1. Slip the spring (1) onto the thread clamp (3).
2. Assemble the thread clamp (3).
3. Tighten the screw (2).
4. Loosen the threaded pin (5).
5. Press on the thread clamp (3) and align it with thread guides (7) and (6).
Turn the thread clamp (3) to align it.
The thread is fed straight through the thread clamp (3) from thread
guide (7) to thread guide (6).
6. Tighten the threaded pin (5).
(1) - Spring
(2) - Screw
(3) - Thread clamp
(5) - Threaded pin
(6) - Thread guide
(7) - Thread guide
