Sewing motor

112 Service Instructions M-TYPE DELTA - 00.0 - 12/2019

3. Tighten the toothed belt wheel (3) using the threaded pin (6).

4. Lay the cables (5) from the motor (4) through the tabletop and insert

the plugs into the marked slots on the control.

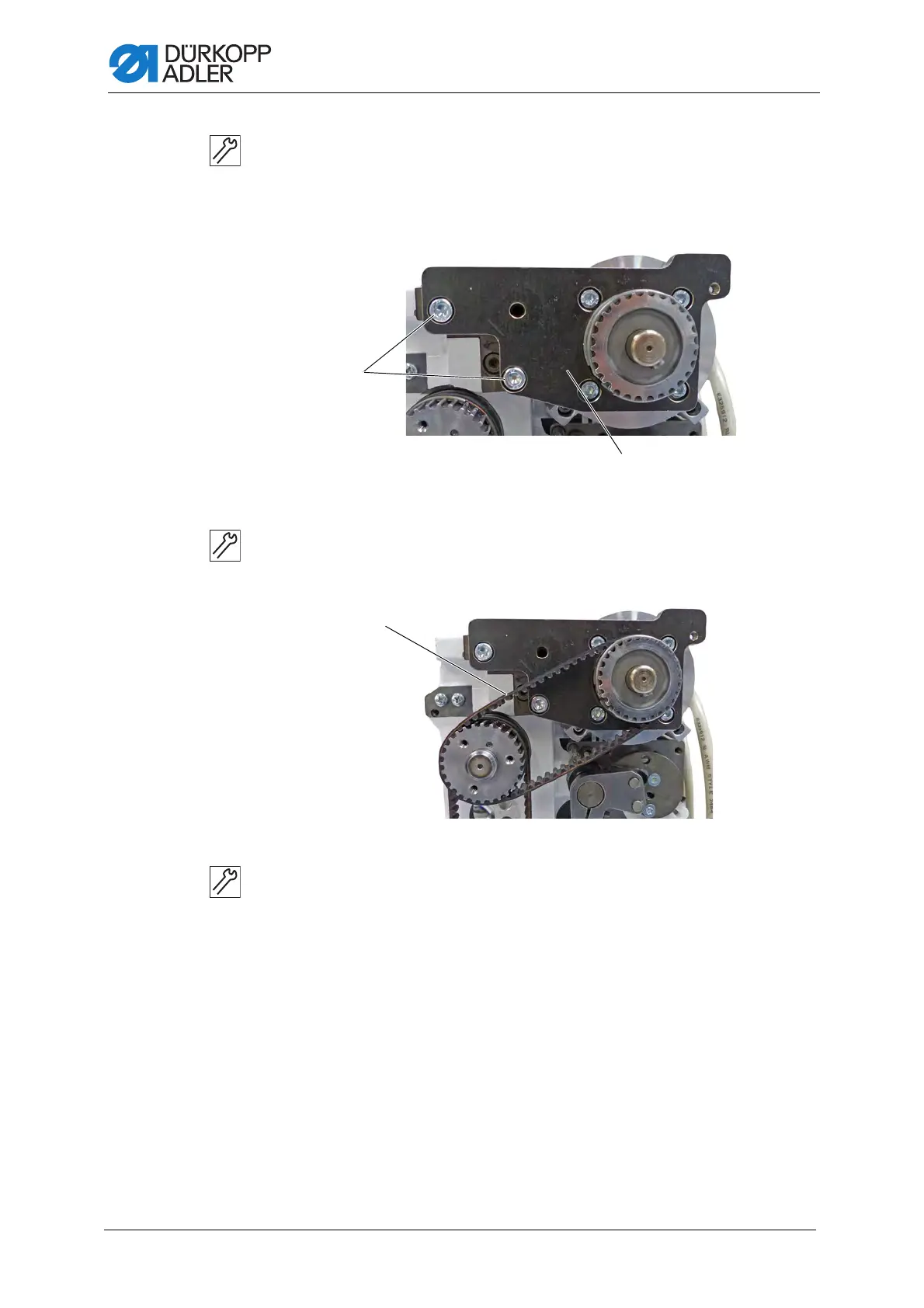

Fig. 99: Assembling the sewing motor (3)

5. Fix the support plate (1) in place along with the motor (4) using the two

screws (7) on the left.

Fig. 100: Assembling the sewing motor (4)

6. Place the toothed belt (8).

(7) - Screw (1) - Support plate

⑦

①

(8) - Toothed belt

⑧

Default Chapter3
