Restoring the basic eccentric settings
Service Instructions M-TYPE DELTA - 00.0 - 12/2019 37
Cover
• Disassembling the front cover ( p. 20)
• Disassembling the arm cover ( p. 19)
Adjusting the eccentric for the feed dog lift

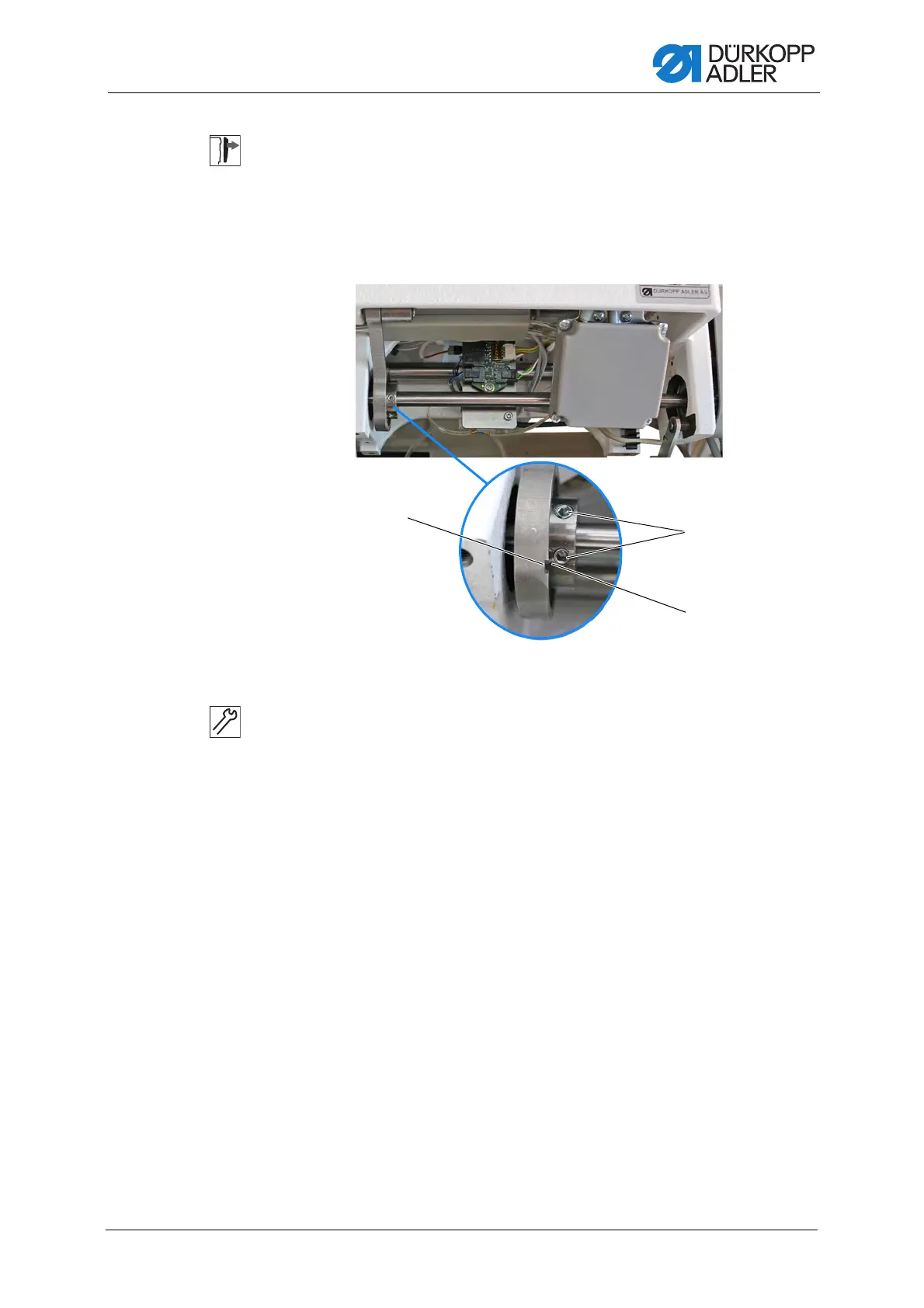

Fig. 25: Adjusting the eccentric for the feed dog lift
To adjust the eccentric for the feed dog lift:
1. Switch off the machine.
2. Lock the machine in place ( p. 32).
3. Switch on the machine.
4. Press the Service Stop button.
5. Tilt the machine head.
6. Loosen the screws (3).
7. Turn the eccentric until slot (1) lines up with slot (2).
8. Tighten the screws (3).
(1) - Slot
(2) - Slot
(3) - Screws
