Working basis
24 Service Instructions M-TYPE DELTA - 00.0 - 12/2019
Assembling the toothed belt cover
To assemble the toothed belt cover:
1. Place the toothed belt cover (2); start by attaching the plates (3) first.
2. Tighten the screws (1).
Toothed belt cover with large handwheel

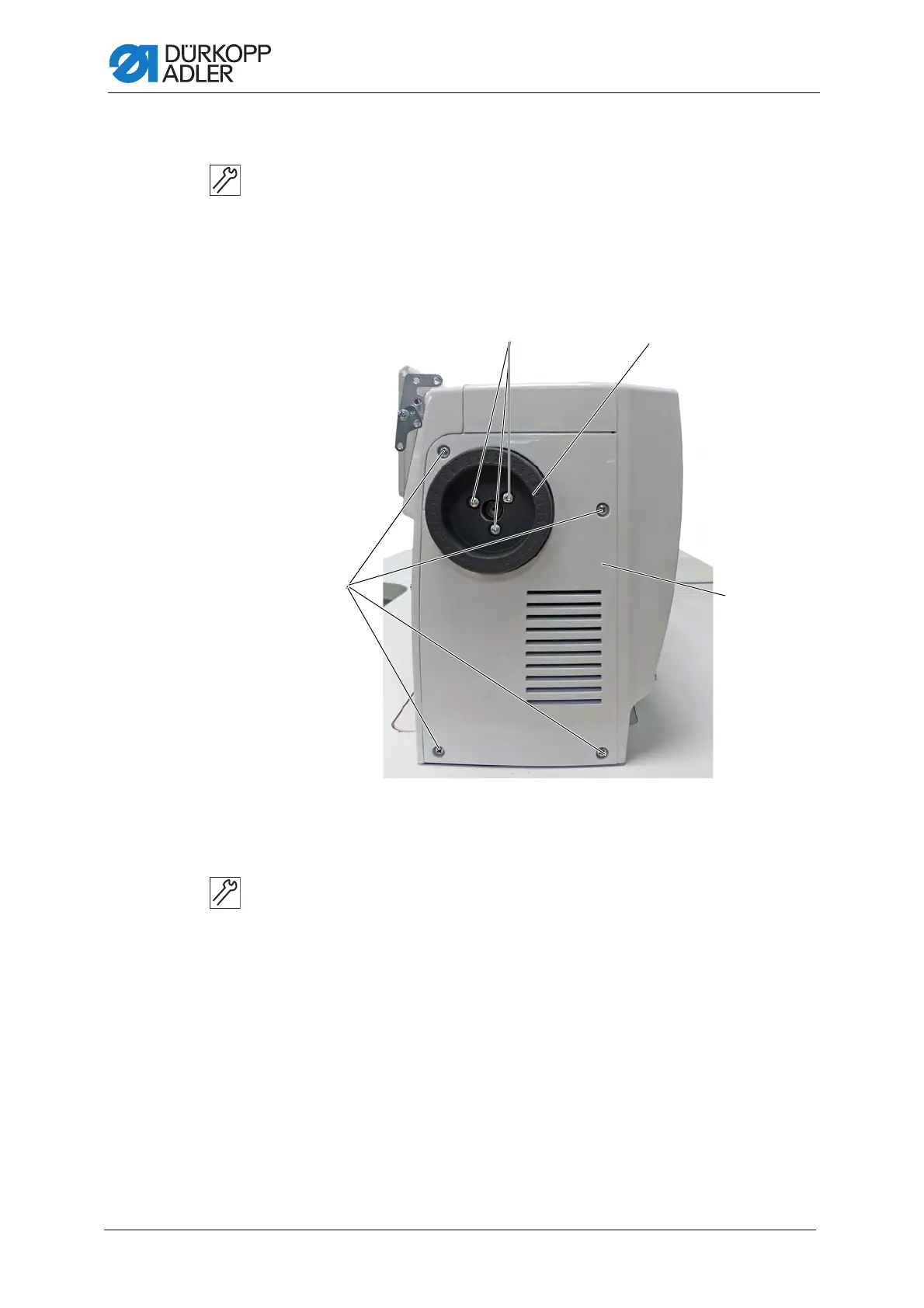

Fig. 13: Toothed belt cover with large handwheel (1)
Disassembling the toothed belt cover
To disassemble the toothed belt cover:
1. Loosen screws (5) on the handwheel (4).
2. Remove the handwheel (4).
3. Loosen the screws (1).
4. Remove the toothed belt cover (2); start by disassembling the cover
from below.
(1) - Screws
(2) - Toothed belt cover
(4) - Handwheel
(5) - Screws
