Working basis
Service Instructions M-TYPE DELTA - 00.0 - 12/2019 25
Assembling the toothed belt cover
To assemble the toothed belt cover:
1. Place the toothed belt cover (2); start by attaching the plates (3) first.
2. Tighten the screws (1).

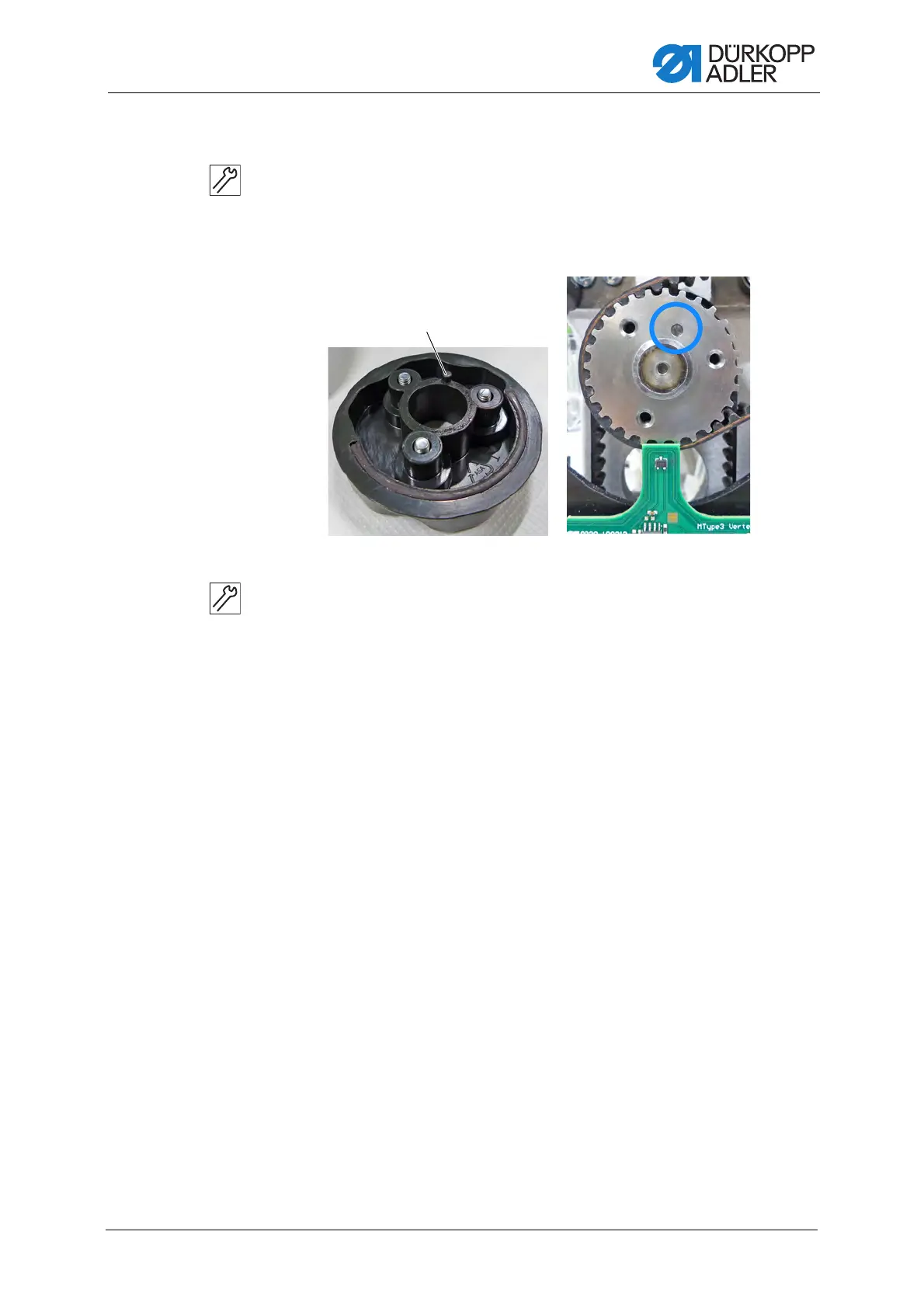

Fig. 14: Toothed belt cover with large handwheel (4)
3. Place the handwheel (4), making sure that the centering pin (6) is posi-
tioned correctly (otherwise, referencing by the hall sensor will not work
properly).
4. Tighten the screws (5).
(6) - Centering pin
⑥
