Height Calibration of Edge Guide (only for 2-axis edge guide)
To calibrate the height of the edge guide:
1. Call up the Service > Calibration > Edge Guide Height
menu item.
The control panel displays the value 5mm.
2. Place the locking peg included in the accessory pack under the edge
guide.
3. Use the -/+ buttons to move the edge guide until the edge guide slightly
clamps the locking peg.
The value on the display will NOT change.
4. Confirm the entry with Next.
The calibration is complete.
Calibration of the Needle thread tension
Proper setting
The calibration is performed with the following thread: Serafil 30/3 black.
The measurement is taken with a thread scale (range up to 300cN).
The thread tension is set to 50 cN.
To calibrate the needle thread tension:
1. Insert the needle thread and guide it up to the thread lever.
2. Take the thread tensioning spring out of operation.
3. Call up the Service > Calibration > Needle thread tension
menu.
The thread tension is activated, and a percentage value is displayed
(e.g. 26%):

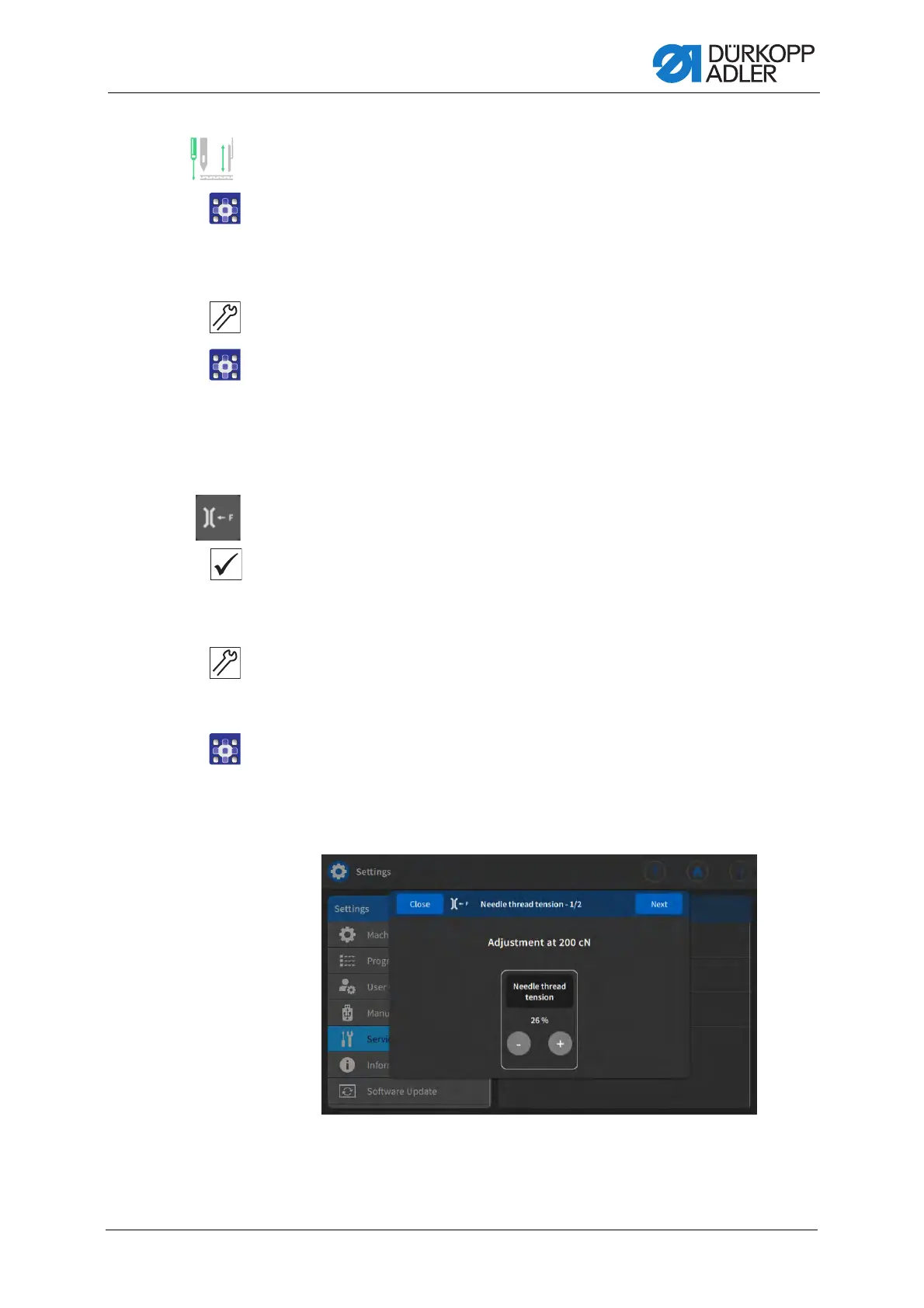

Fig. 126: Calibration of the needle thread tension
