Sewing feet
66 Service Instructions M-TYPE DELTA - 00.0 - 12/2019

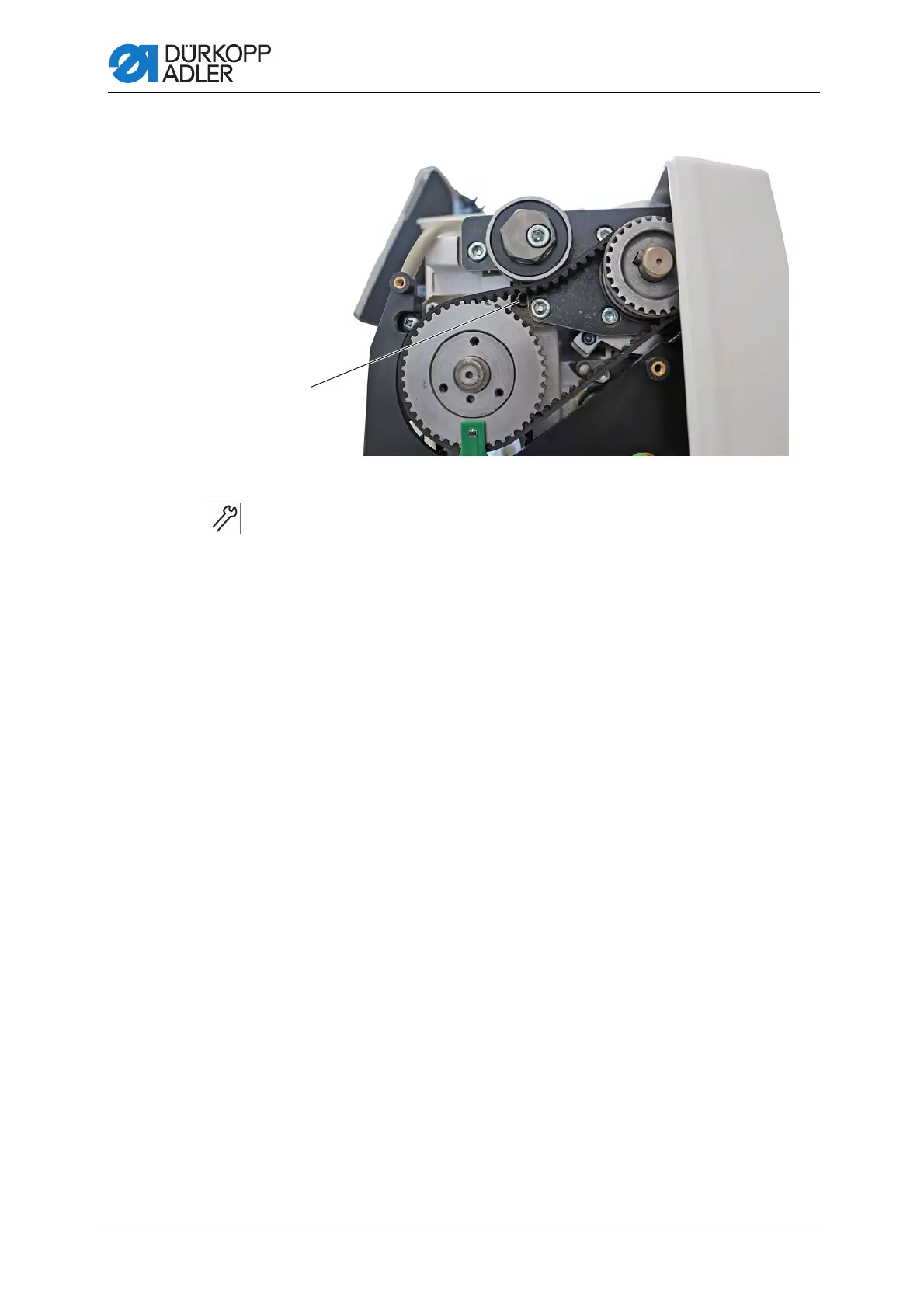

Fig. 51: Adjusting the sewing foot lifting gear (4)
14. Turn the spring clockwise using the screw (9) until the gear (7) is at
the 0 position.
The plates of the lifting gear are parallel to one another.
15. Tension the spring clockwise by 45° using screw (9) before fixing it in
place using screw (4).
16. Use your hand to test if the gear (7) is pushed to the 0 position by
the spring.
17. Assemble the PCB (3) again.
18. Attach the plug at the PCB (3).
19. Place the cover (1) of the PCB.
20. Connect the plug (2).
(9) - Screw
