Sewing feet
Service Instructions M-TYPE DELTA - 00.0 - 12/2019 65

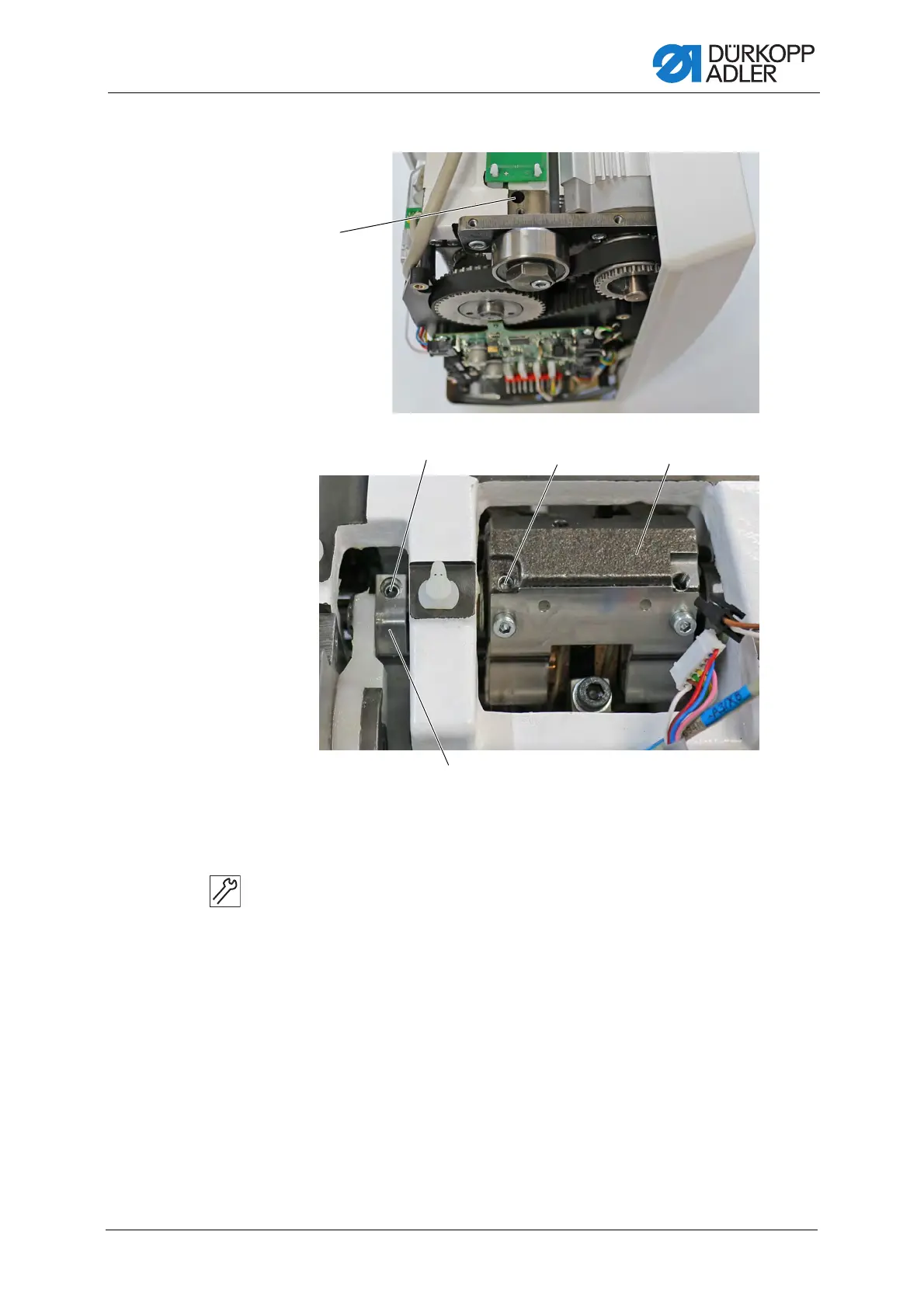

Fig. 50: Adjusting the sewing foot lifting gear (3)
10. Loosen the screw (4).
The spring pushing the gear (7) back to the 0 position when the
machine is switched off disengages.
11. Tighten the threaded pin (5) on the flat through the hole on the clamping
block (8).
12. Loosen the threaded pin (6).
Check if the threaded pin underneath is firmly seated on the flat.
If not, tighten the threaded pin so that there is no play.
13. Tighten the threaded pin (6).
(4) - Screw
(5) - Threaded pin
(6) - Threaded pin
(7) - Gear
(8) - Clamping block
