Thread trimmer (FA)
Service Instructions M-TYPE DELTA - 00.0 - 12/2019 81
Adjusting the end position of the knife
11. Loosen the clamping screw (8).

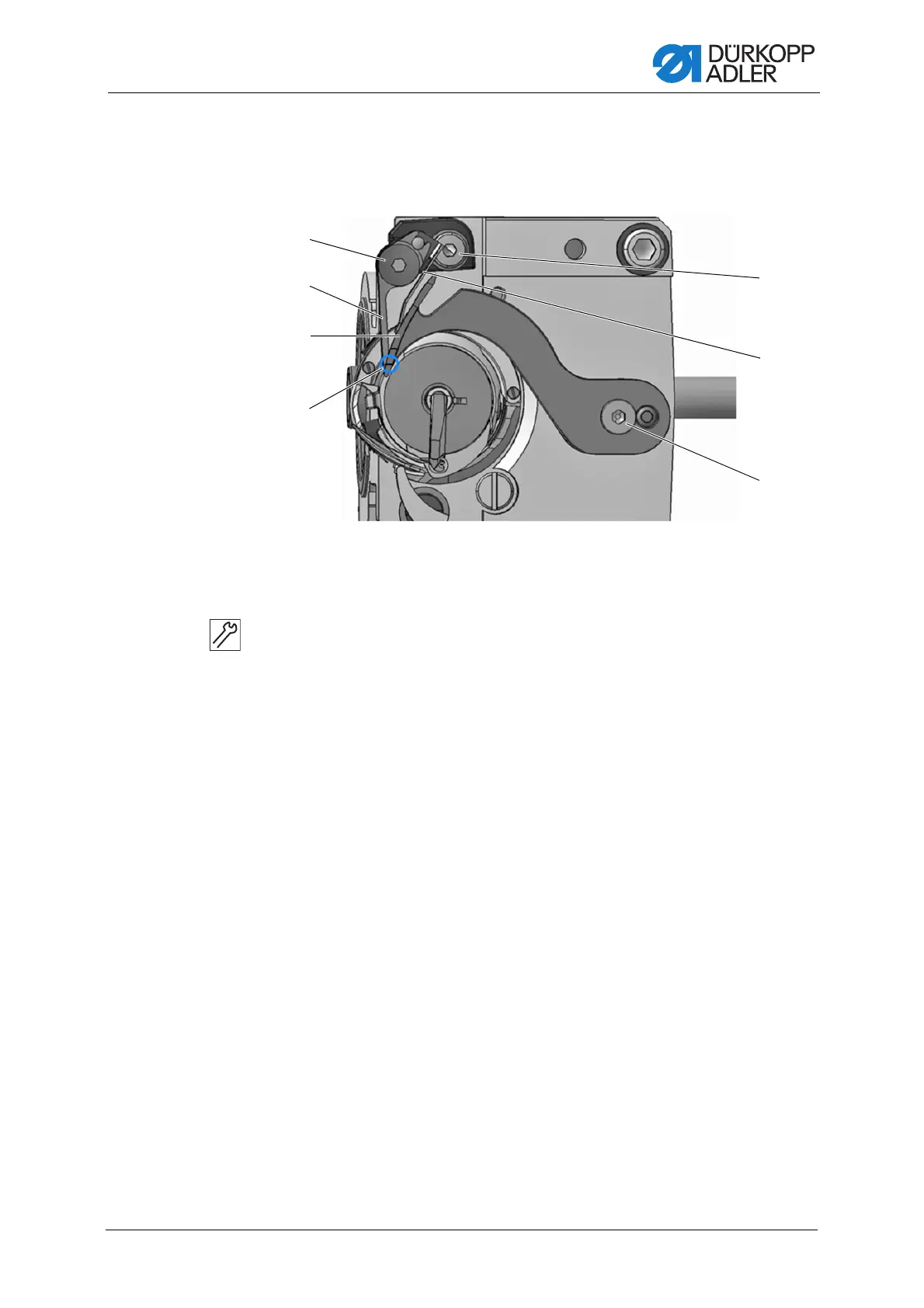

Fig. 66: Adjusting the cutoff curve (2)
12. Turn the thread-pulling knife (12) so that the marking indicating the
end position (13) is exactly next to the tip of the counter blade (11).
13. Tighten the clamping screw (8) on the lever (7) such that the lever (7)
has no axial play.
14. Loosen the threaded pins (3).
15. Push the set collar (2) to the right as far as it will go and against
the control cam (4).
16. Check the looping stroke position ( p. 52).
17. Tighten the threaded pins (3).
(10) - Screw
(11) - Counter blade
(12) - Thread-pulling knife
(13) - End position marking
(14) - Screw
(15) - Hook thread clamp
(16) - Screw
