Section 5: Detailed Description of I/O
Modules
5.1 Digital Input Module EP-1214

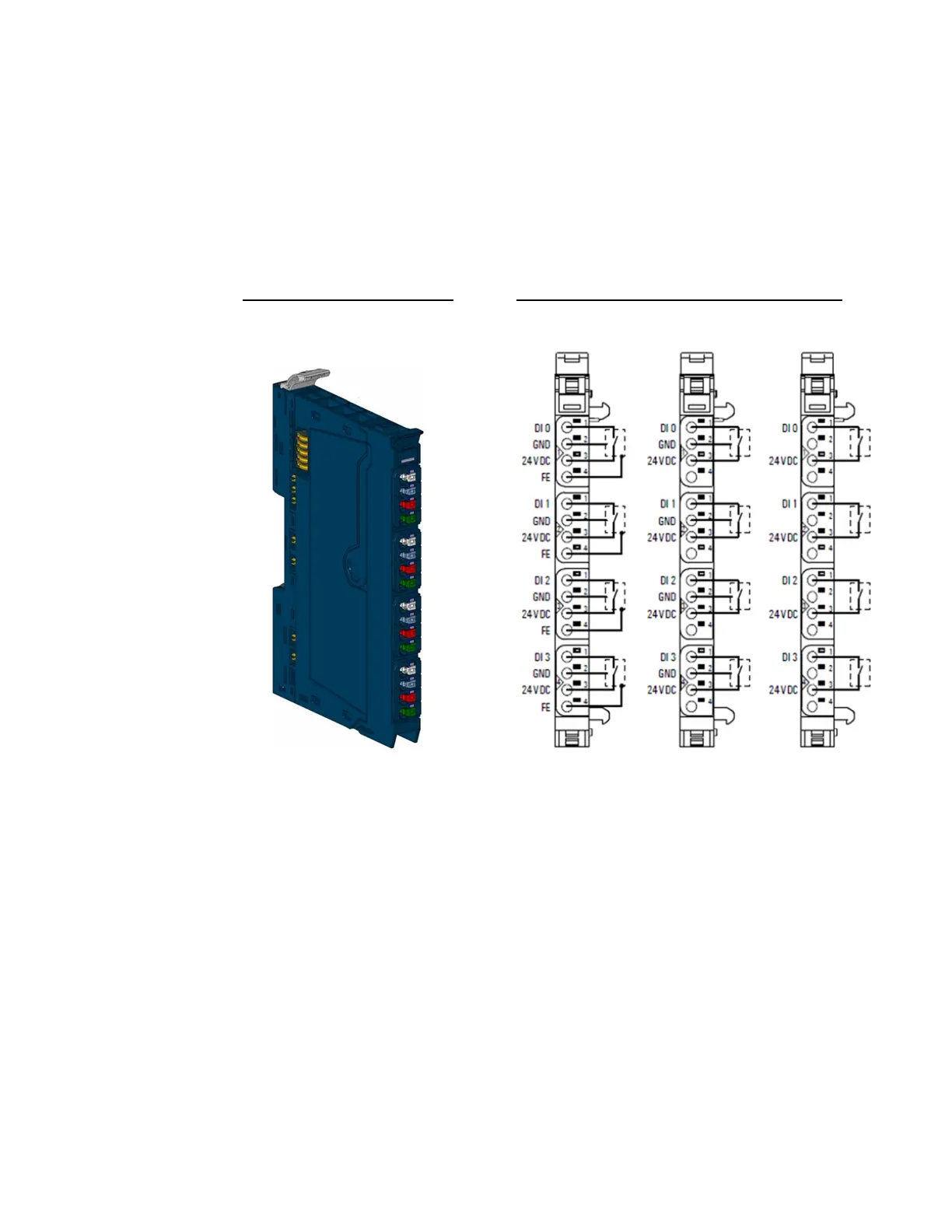

Figure 52: Digital Input
Module EP 1214
Figure 53: Connection Diagram EP-1214
The digital input module EP-1214 can detect up to 4 input signals. One sensor can be
connected to each connector using a 2-wire, 3-wire or 3-wire + FE connection. A status
LED is assigned to each channel. The module electronics supply the connected sensors
with power from the input current path (IIN).
