Manual start: the output current path is only switched on again if the start button has
been held down for a preset length of time.
With the delay module (EP-1922), switching off can be delayed by a defined time so that,
for example, a machine can be shut down in a controlled manner. The delay time can be set
in four steps between 0 and 60 seconds (corresponds to stop category 1 as per EN 60204.
Note: All product-specific information and notes on the use of EP-19xx modules can be
found in the Modules for Functional Safety Manual (GFK-2956).
5.38 Potential Distribution Module for Input Current
Path EP-711F

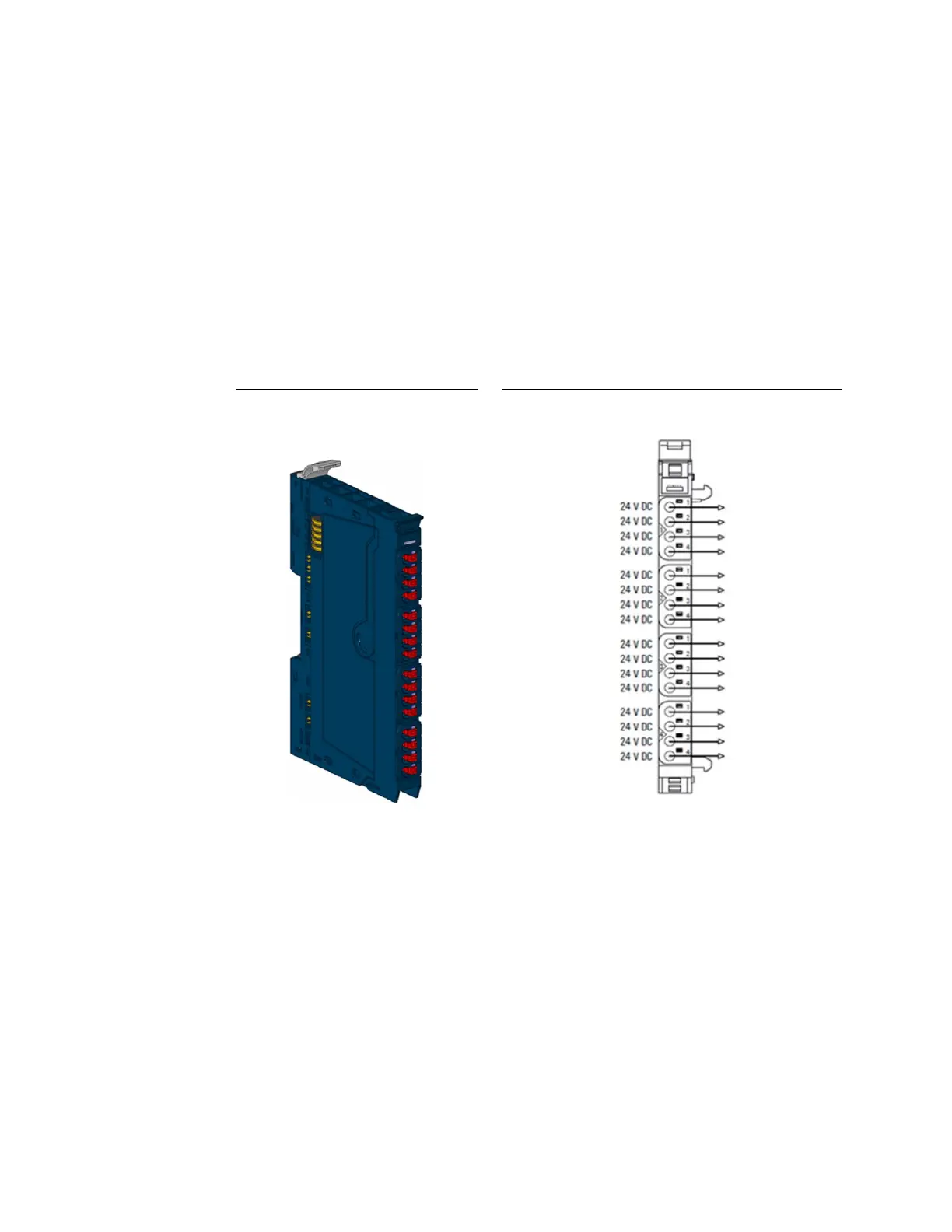

Figure 218: Power-feed Module
for Output Current Path EP-711
Figure 219: Connection Diagram EP-711F
The potential distribution module EP-711F provides 16 connections for +24 V from the input
current path. Potential distribution modules are passive modules without fieldbus
communication, therefore they are not considered during configuration.
Note: A maximum of three passive modules (power-feed module, potential distribution
module, and empty slot module) may be installed in succession, however the next
module to be installed must be an active module.
