User Manual Section 6
GFK-2958L May 2021
Installation 413

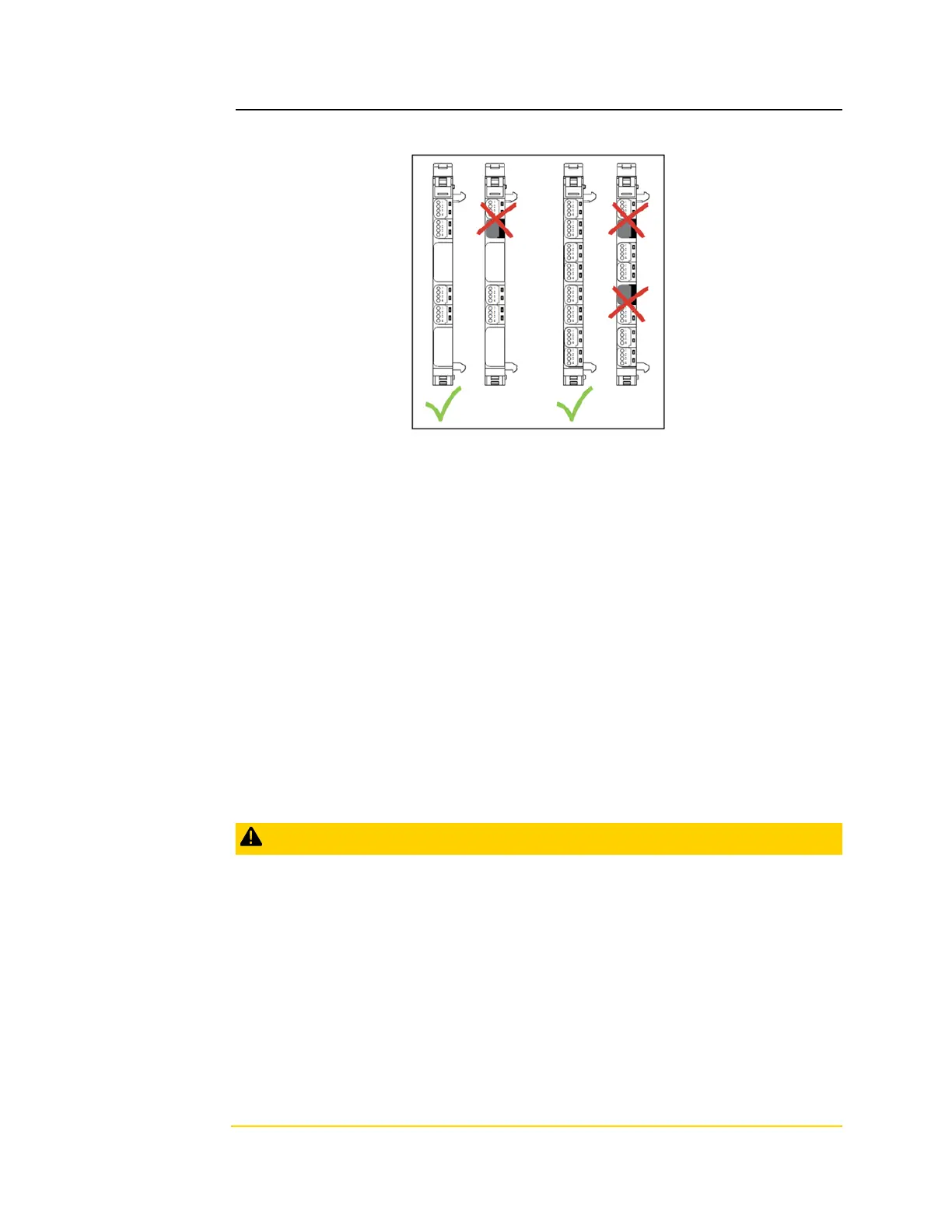

Figure 247: Application of HD Connectors
•
Each cable must be the optimal length, so the bending radii observe the manufacturer’s
specifications.
•
Strip the insulation from the cable to a length of approx. 20 mm (0.8 in) using the multi-
stripax 6-16.
•
Insert all wires according to wiring diagram as far as they will go into the clamping unit
of the connector. Note the marking (pin 1 to 4) on the transparent presorted.
•
Apply the pressing tool and check whether all wires are inserted as far as they will go.
•
Press the HD connector using the pressing tool.
•
Insert the wired connector into the module’s connector frame.
6.5 Insulation Test
Insulation tests on the RSTi-EP station must be done according to regulations, in any case,
they are necessary before each commissioning.
CAUTION
The product can be destroyed by a test voltage which is too high.
Note during insulation test:
•
Within one channel the test voltage between 24 V and GND must not exceed 28.8 V
†
•
A maximum test voltage of 500 V can be applied to all other connection points.
•
Up to 4,000 V can be applied to the modules EP-2814 and
•
EP-2714:
−
between the four channels
−
between one channel and the system voltage.
