Detailed Description of I/O Modules 187
5.11.5 Process Data Outputs EP-2218
Byte
Bit
Description
OB0
OX0.0
DO0
OX0.1
DO1
OX0.2
DO2
OX0.3
DO3
OX0.4
DO4
OX0.5
DO5
OX0.6
DO6
OX0.7
DO7

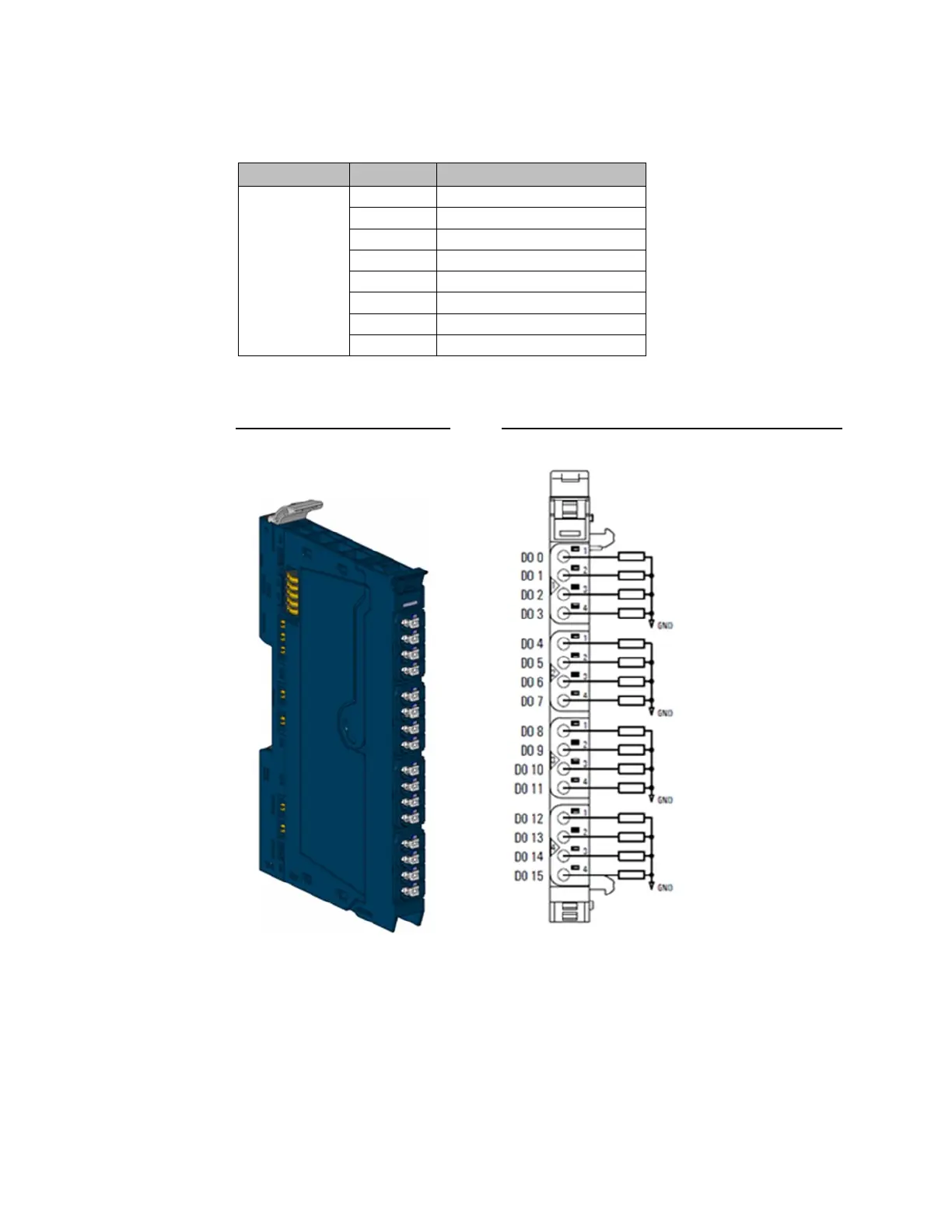

5.12 Digital Output Module EP-225F
Figure 93: Digital Output
Module EP-225F
Figure 94: Connection Diagram EP-225F
The EP-225F digital output module can control up to 16 discrete outputs, each with a
maximum of 0.5 A. Four discrete outputs can be connected to each connector. A status LED
is assigned to each channel. The outputs are supplied with power from the output current
path (IOUT).
