Emerson PACSystems RSTi-EP - Addressing

User Manual Section 4
GFK-2958L May 2021
Detailed Descriptions of the Fieldbus Network Adapters 60

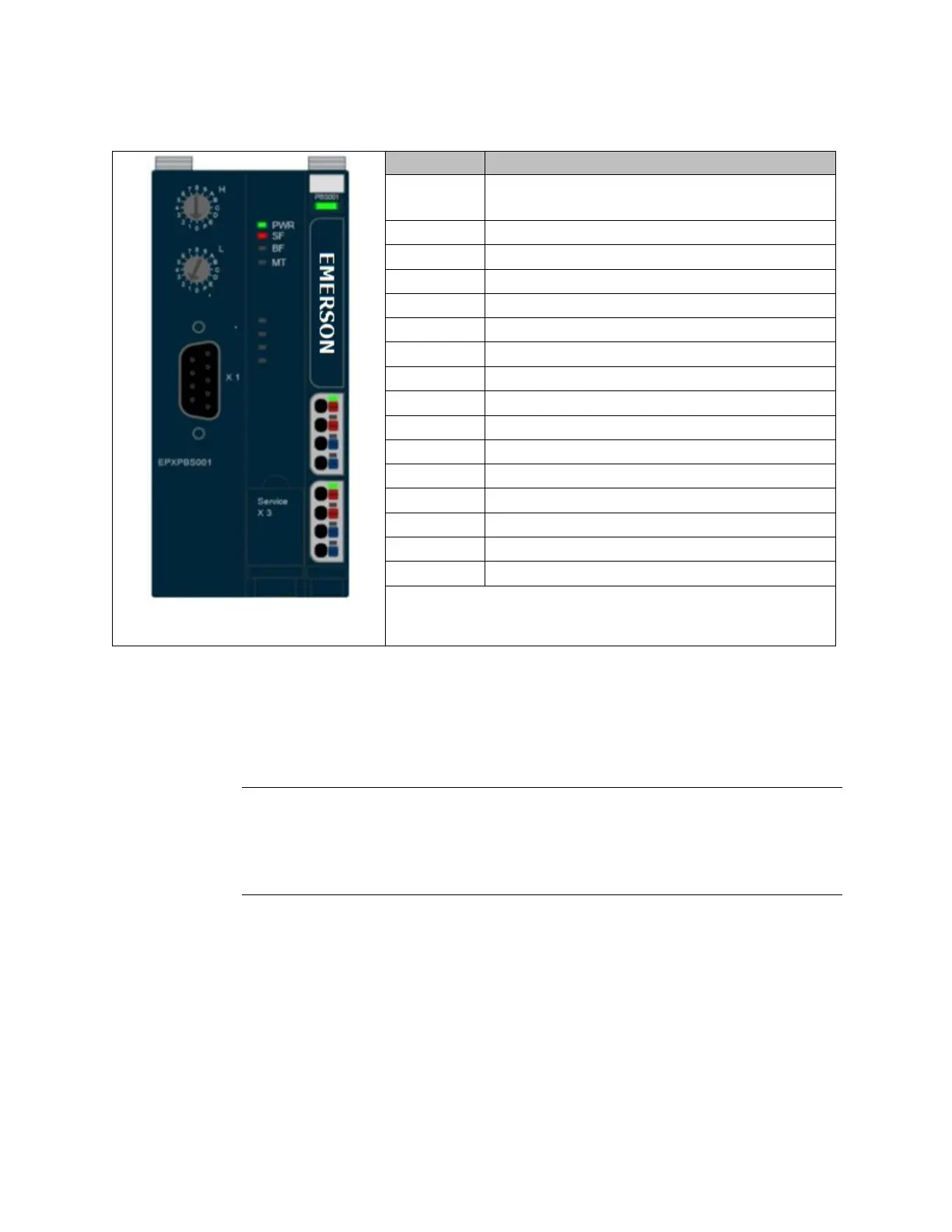

LED Indicators EPXPBS001
LED
EPXPBS001
Power Supply
Green: Supply voltage > 18Vdc
Red: At least one current path < 18 V
3.1
Green: Input current path supply voltage > 18Vdc
3.2
Red: Input current path supply voltage < 18Vdc
3.3
3.4
Red: Internal fuse defective
4.1
Green: Output current path supply voltage > 18Vdc
4.2
Red: Output current path supply voltage < 18Vdc
4.3
4.4
Red: Internal fuse defective
For error messages, refer to Section 12, LED Indicators and Troubleshooting.
4.1.2 Addressing
The network adapter on the PROFIBUS-DP is addressed via the two rotary switches.
Note: A maximum of 125 addresses (1 to 125) can be assigned. Each address may be assigned
only once in the overall bus structure. Addresses 1 and 2 are generally used by the control
systems. Bus addresses 000 plus 126 and higher may not be used.
The most significant digit is set with rotary switch H, the least significant digit with rotary
switch L. The switches are labelled in the hexadecimal numbering system (0 to 9, A=10,
B=11, C=12, … F = 15). A hexadecimal to decimal conversion table is provided in the annex.
Coding: Address = (H*16) + L
