Detailed Descriptions of the Fieldbus Network Adapters 61

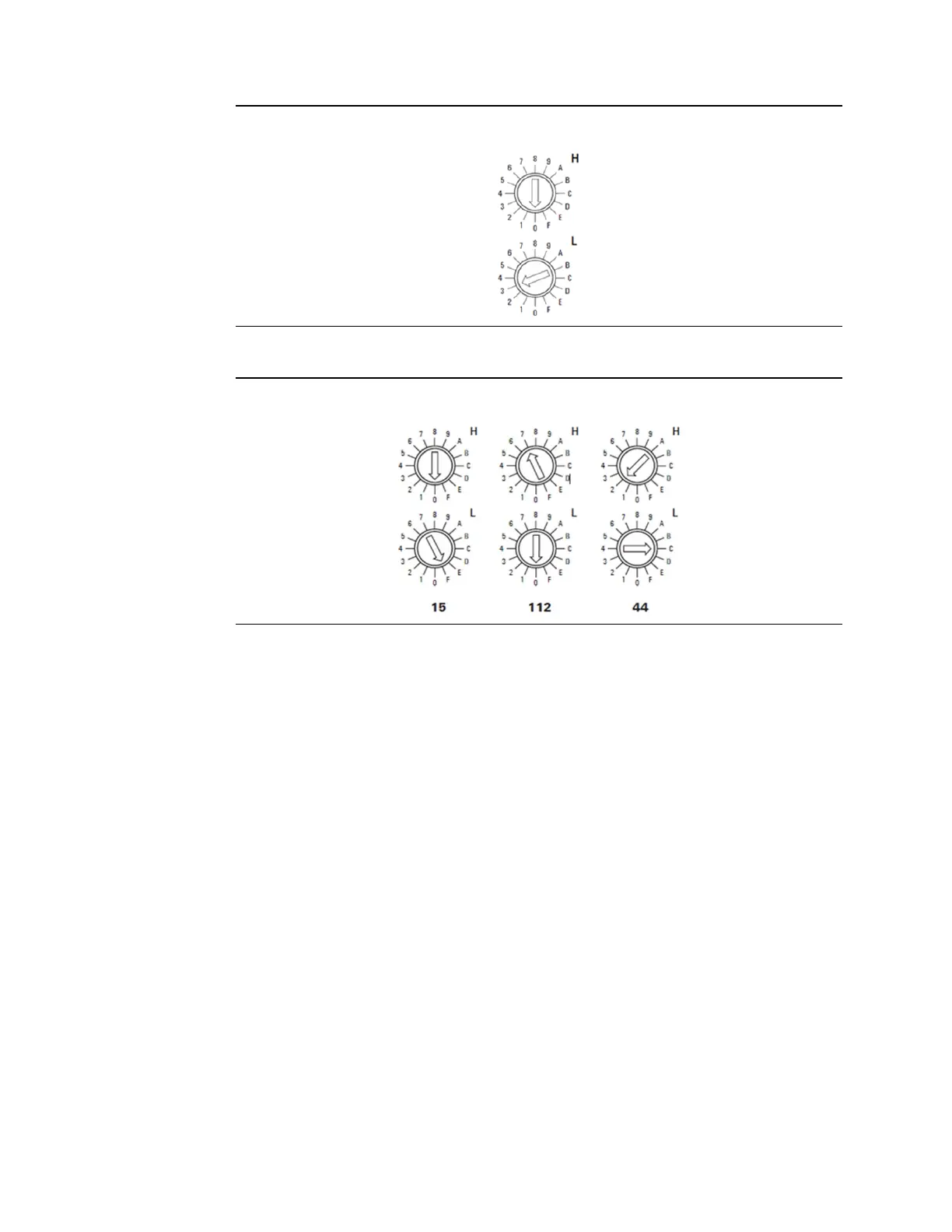

Figure 19: Rotary Switch Default Setting EPXPBS001: Address = 3
Addressing examples:
Figure 20: Examples for Addressing the EPXPBS001
PROFIBUS address 15: H = 0, L = F
PROFIBUS address 112: H = 7, L = 0
PROFIBUS address 44: H = 2, L = C
