5.31 Analog Output Module EP-4264

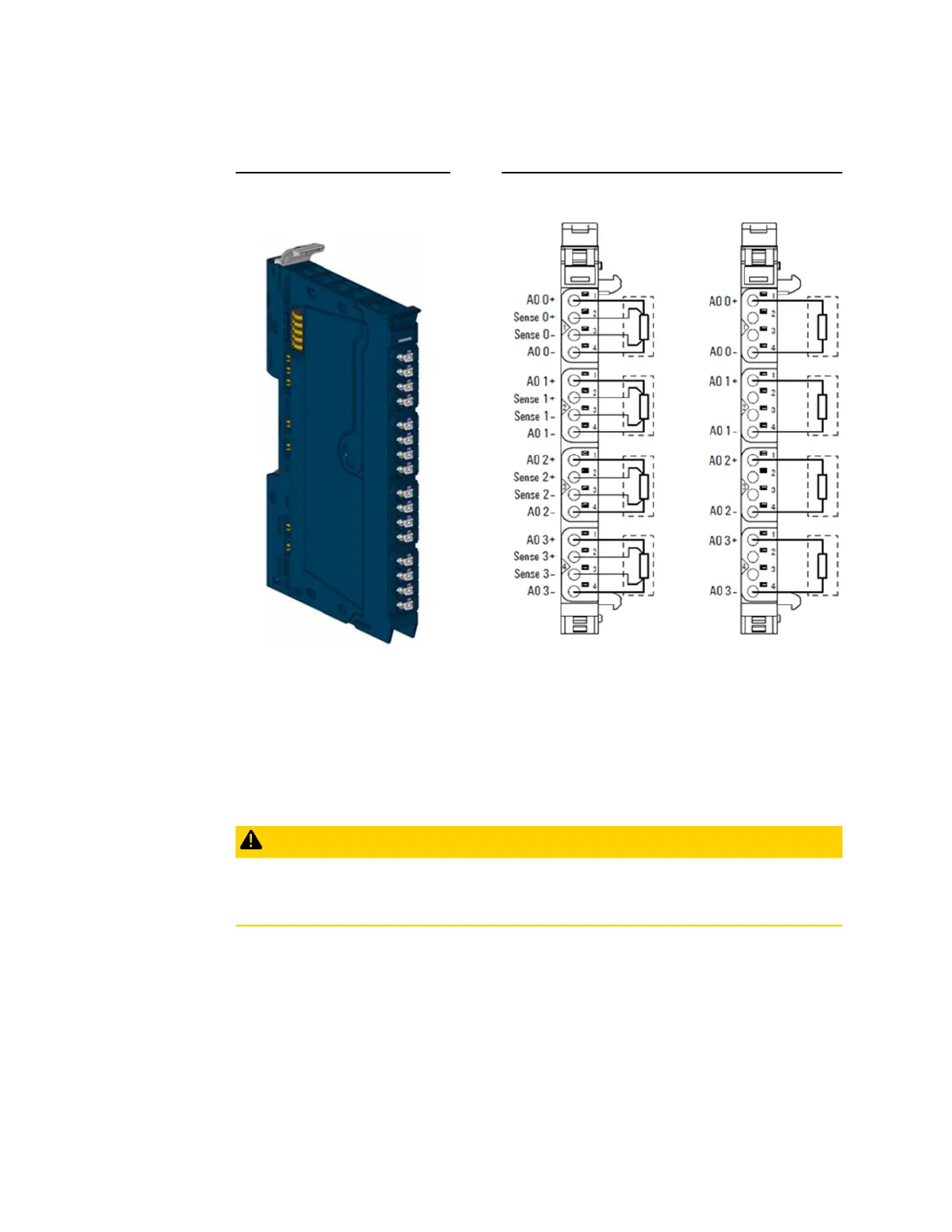

Figure 192: Analog Output
Module EP-4264
Figure 193: Connection Diagram EP-4264
The analog output module EP-4264 can control up to four analog actuators with ±10 V, ±5
V, 0-10 V, 0-5 V, 2-10 V, 1-5 V, 0-20 mA or 4-20 mA. The resolution is 16 bits per channel.
An output can be connected to each connector, the internal switching is carried out
automatically. The output range is defined using parameterization. A status LED is assigned
to each channel. The outputs are supplied with power from the output current path (IOUT).
The module provides individual channel diagnosis with channel related error messages.
CAUTION
The outputs as well as the sense-lines of the AO modules must not be used as power
outputs.
