5.9 Digital Output Module EP-2614

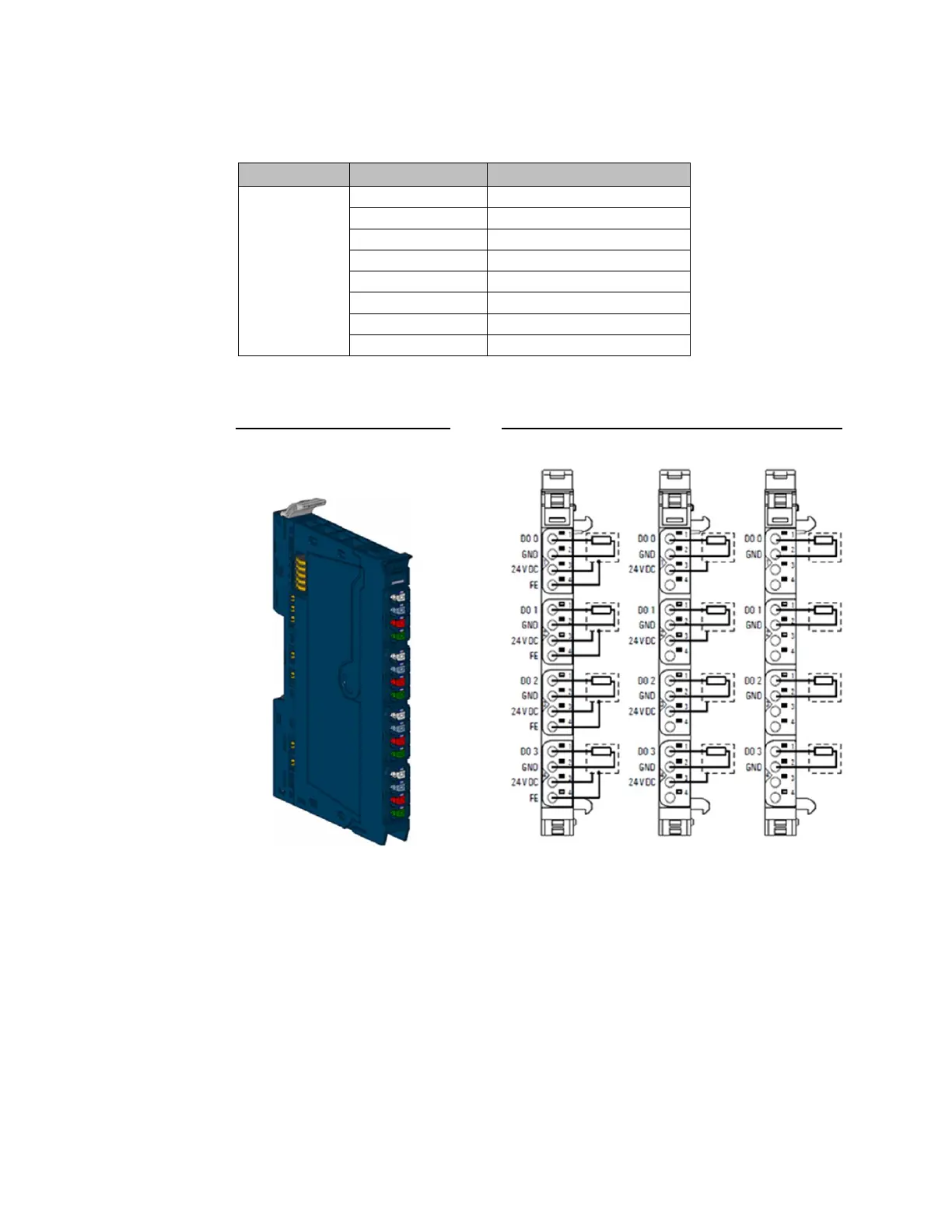

Figure 84: Digital Output
Module EP-2614
Figure 85: Connection Diagram EP-2614
The digital output module EP-2614 can control up to 4 discrete outputs, each with a
maximum of 2 A. One discrete output can be connected to each connector using a 2-wire,
3-wire or 3-wire connection + FE. A status LED is assigned to each channel. The outputs are
supplied with power from the output current path (IOUT).
