5.22.1 LED Indicators EP-5442
Green: Communication over the system bus
Red: Module System Fault or Diagnostic Fault
Yellow: PWM output 0 – 100%, P-switching
Yellow flashing at 2 Hz: PWM output 0 is > 0 and < 100%,
PN-switching or P-switching
Yellow: PWM output 1 – 100%, P-switching
Yellow flashing at 2 Hz: PWM output 0 is > 0 and < 100%,
PN-switching or P-switching
For error messages refer to Section 12, LED Indicators and Troubleshooting.

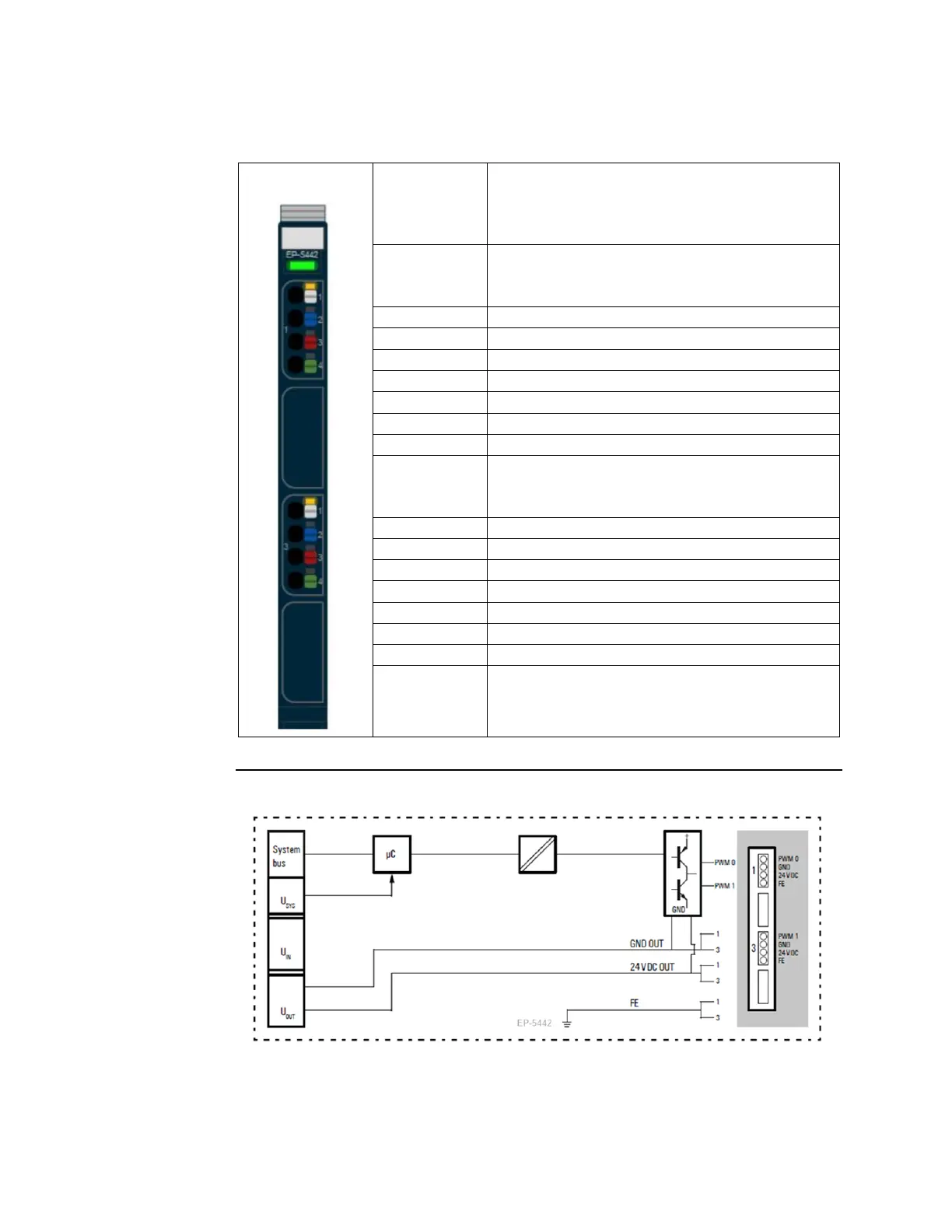

Figure 158: Block Diagram EP-544
