Emerson PACSystems RSTi-EP - Accessing Network Adapter Parameters; Displaying Module Data and Editing Parameters

User Manual Section 9
GFK-2958L May 2021
Web Server 463
\

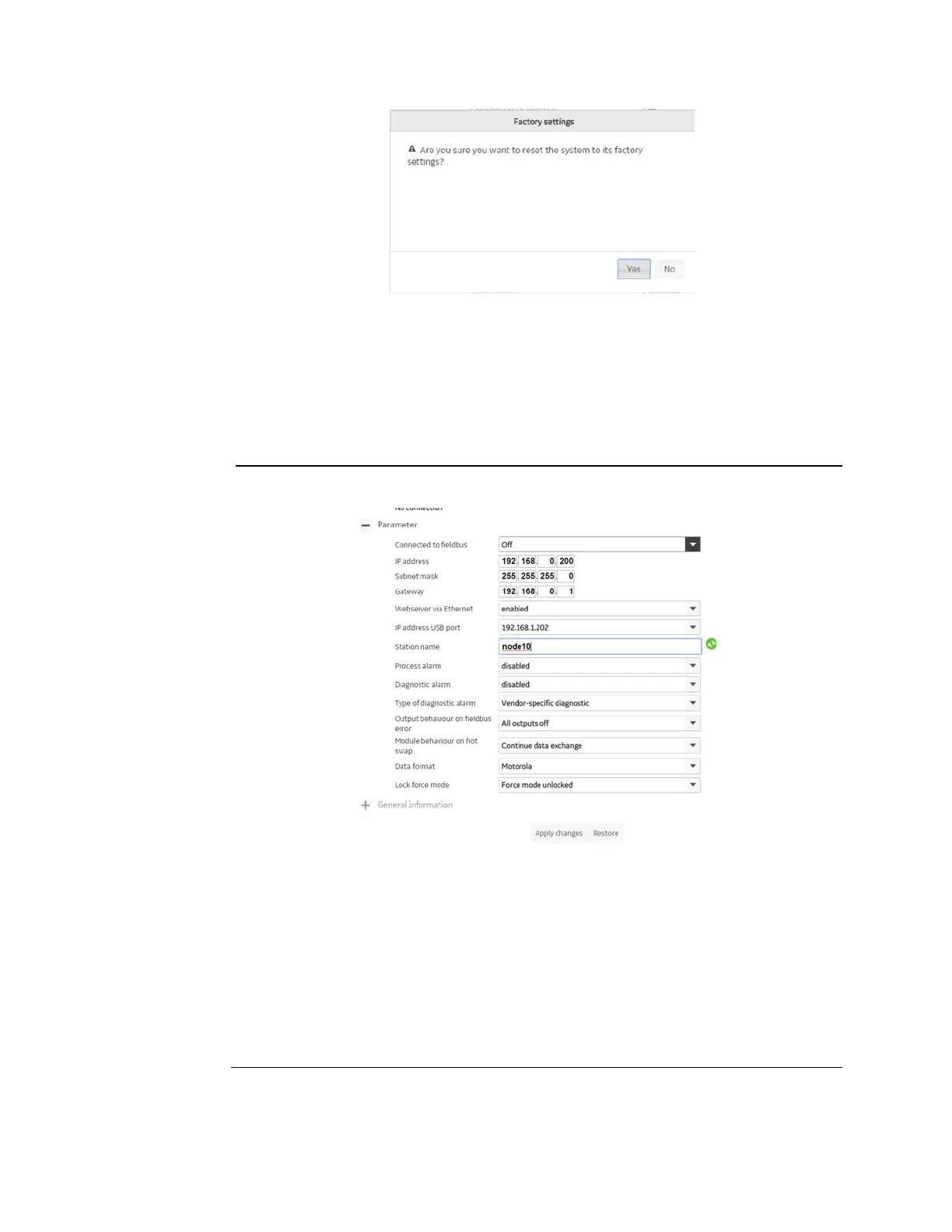

3. Click Yes to confirm that you would like to reset the network adapter to the
factory settings.
9.5.3 Accessing Network Adapter Parameters
•
To access network adapter parameters: Navigate to the Network Adapter Status
dialog box and click Parameters. All the parameters are then listed in a new window.
Figure 311
For parameters that can be edited, enter the changes in the entry fields or select alternative
settings from a dropdown menu.
9.6 Displaying Module Data and Editing
Parameters
Note: These functions are only accessible when Force mode is not activated.
Parameters can only be written when the field bus is not active.
•
To display module data and edit parameters
1. Click on a module to view its properties. A window with all status values displays.
