Emerson PACSystems RSTi-EP - Specifications EP-700 F; 0-V Potential Distribution Module for Input Current Path EP-710 F

User Manual Section 5
GFK-2958L May 2021
Detailed Description of I/O Modules 396
5.40.1 Specifications EP-700F
Specifications
Description
Supply
Supply voltage
20.4V – 28.8V
General data
Weight
84 g (2.96 oz)
For additional general data, refer to Section,
General Technical Data for I/O Modules.
5.41 0-V Potential Distribution Module for Input
Current Path EP-710F

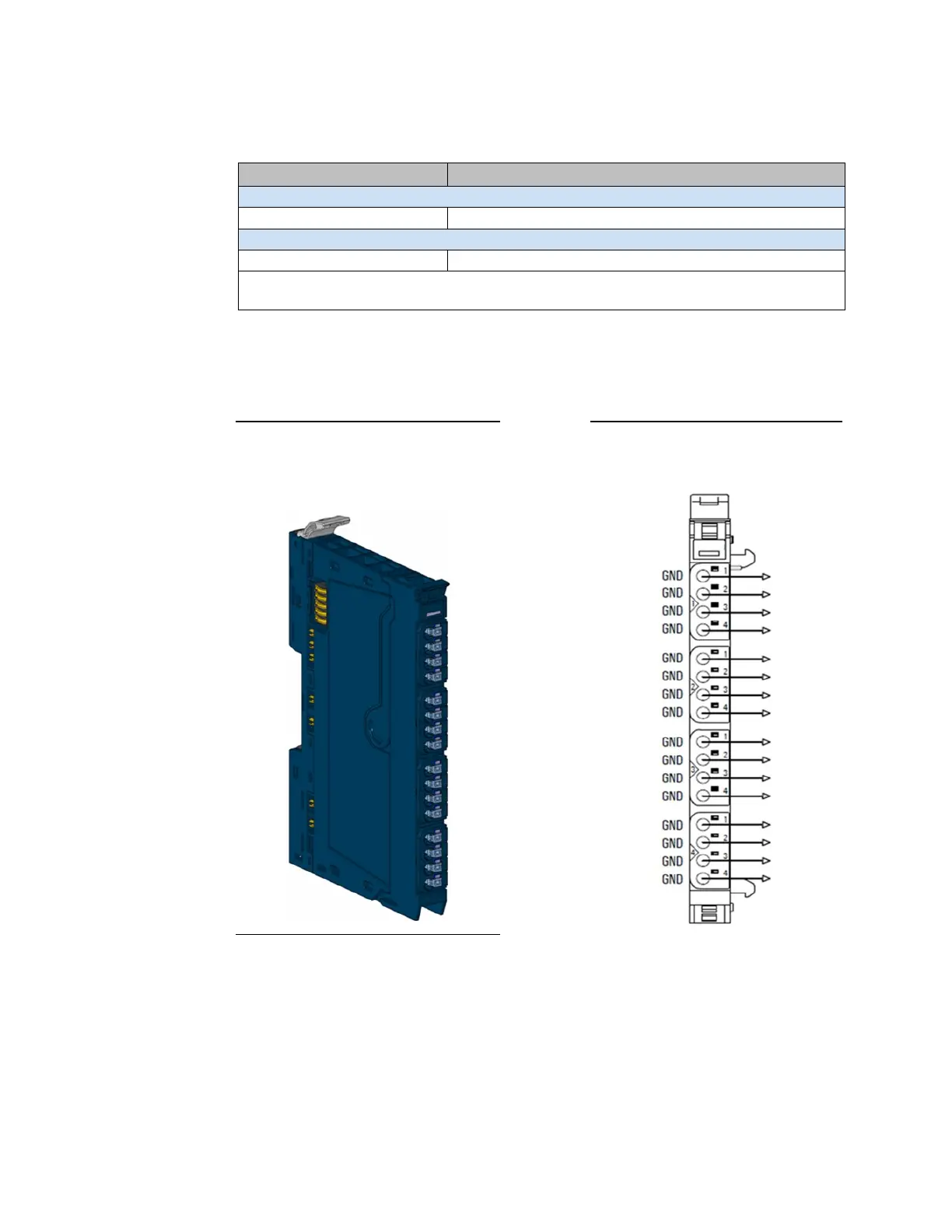

Figure 227: 0V Potential Distribution
Module for the Input Current path
EP-710F
Figure 228: Connection Diagram
EP-710F
The potential distribution module EP-710F provides 16 connections for ground from the
input current path. Potential distribution modules are passive modules without fieldbus
communication, therefore they are not considered during configuration.
Note: A maximum of three passive modules (power-feed module, potential distribution
module, and empty slot module) may be installed in succession, however the next
module to be installed must be an active module.
