8.7 Configuring EP-5324
Updating the Firmware
Refer to section, ‘’Updating Firmware’’ & Update the firmware of the Network Adapter and
that of the EP-5324 modules to the latest version.
Integrating & Parameterizing IO-Link port with PAC Machine Edition
The IO-Link ports are parameterized using the IO-Link master parameters. An overview of
all parameters is presented in section “Modifiable Parameters of EP-5324”.
1. Profinet EPXPNS001/EPXPNS101
1.
To configure EPXPNS001/EPXPNS101 with latest GSDML file refer to Section,
“Configuring EPXPNS001/EPXPNS101”
2.
Double-click the EP-5324 module in the module list.
3.
The EP-5324 window opens.
4.
Select the General Parameters tab
The list of all parameters is displayed.

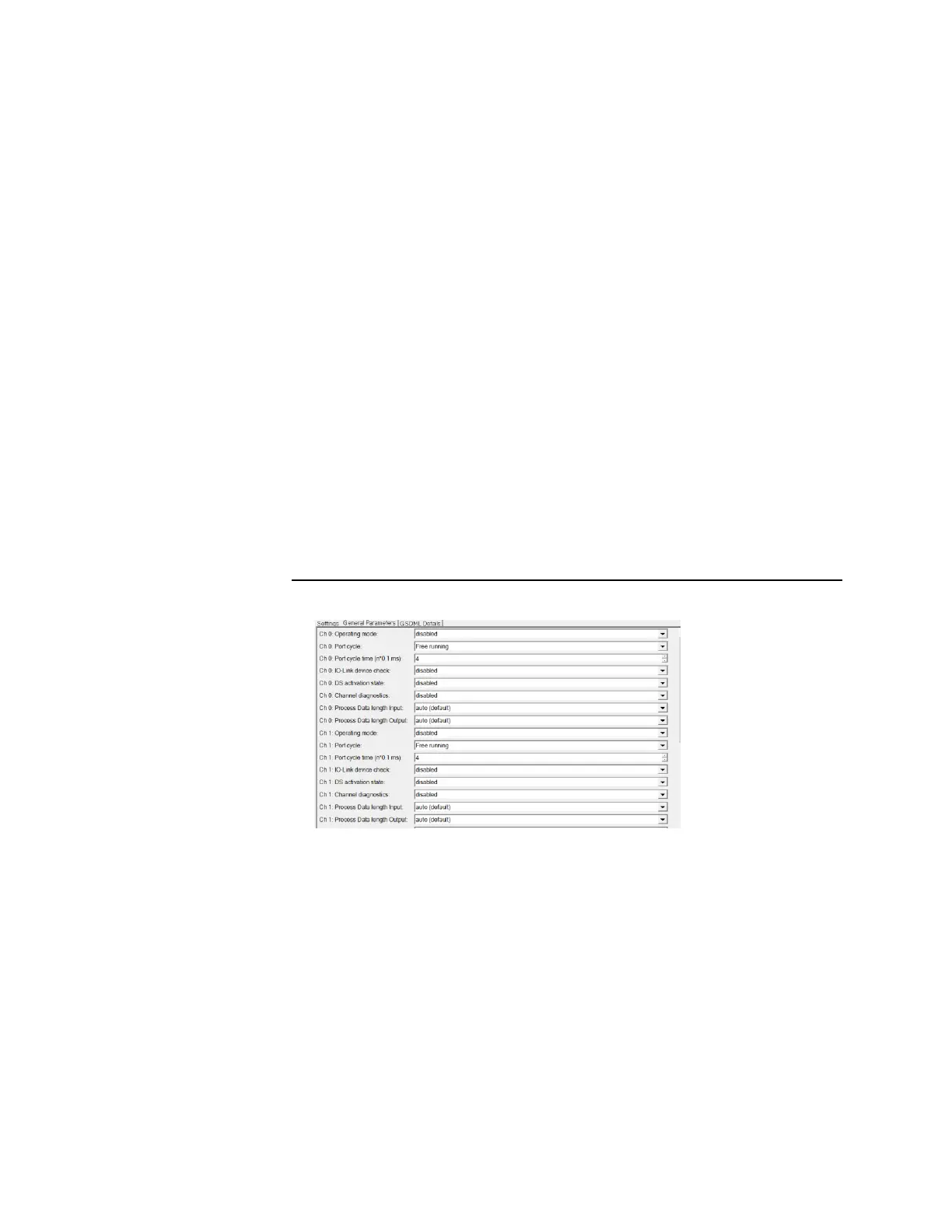

Figure 293 Editing module parameters
5.
Click the parameter that you would like to change and
6.
Set the “Operating mode” parameter of the IO-Link port to the value “IO-Link”.
7.
Set each of the parameters “Process data length input “and “Process data length
output” to the value “auto”.
8.
Use this method to edit all of the parameters that you want to change.
9.
Click OK to save the settings.
10.
All settings only take effect once they have been
11.
loaded into the component.
