Emerson PACSystems RSTi-EP - LED Indicators EP-5324

User Manual Section 5
GFK-2958L May 2021
Detailed Description of I/O Modules 288

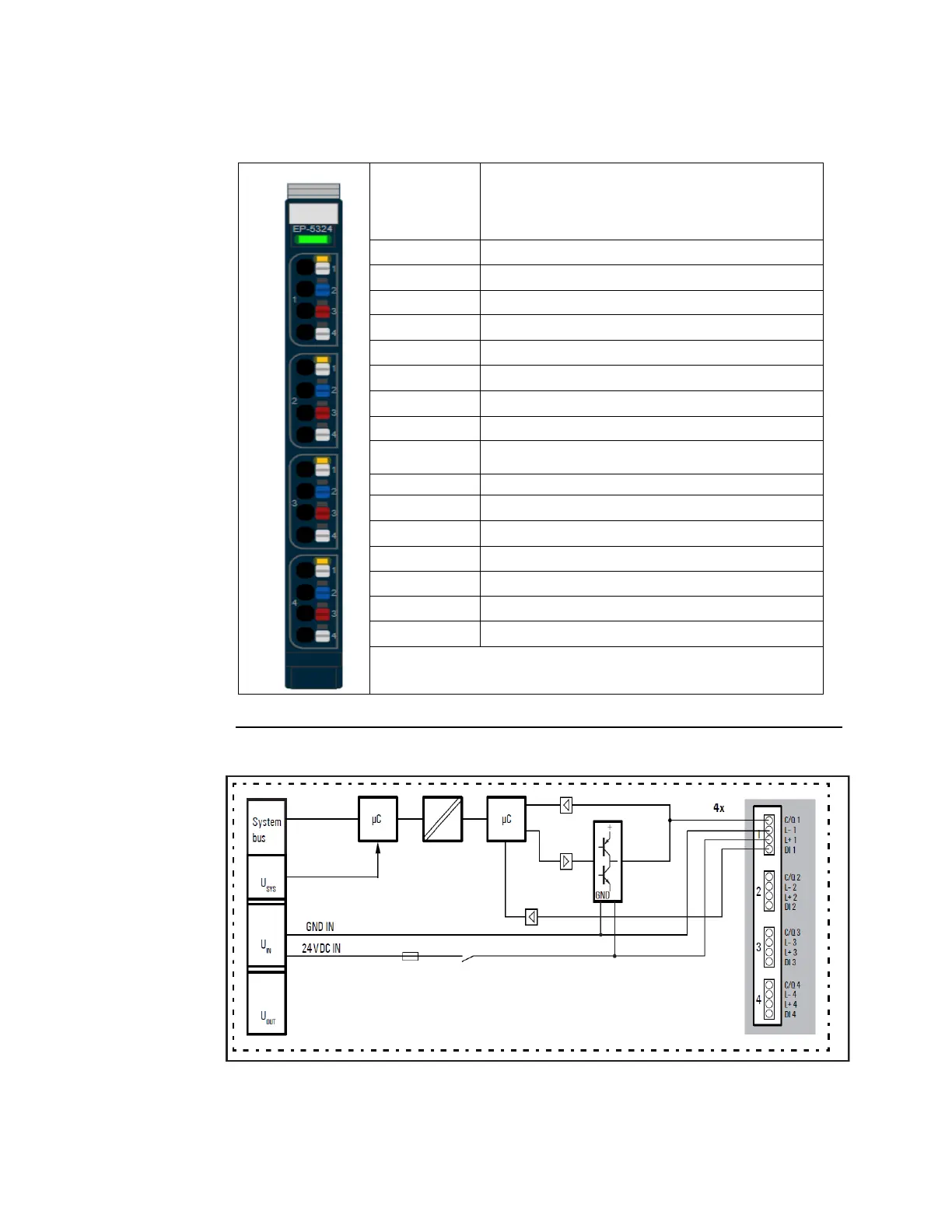

5.23.2 LED Indicators EP-5324
Module Status
Green: Communication over the system bus
Red: Module System Fault or Diagnostic Fault
1.1
Yellow: Status COM 1
1.2
Red: Error IO-Link port 1
1.3
1.4
Yellow: Status DI 1
2.1
Yellow: Status COM 2
2.2
Red: Error IO-Link port 2
2.3
2.4
Yellow: Status DI 2
3.1
Yellow: Status COM 3
3.2
Red: Error IO-Link port 3
3.3
3.4
Yellow: Status DI 3
4.1
Yellow: Status COM 4
4.2
Red: Error IO-Link port 4
4.3
4.4
Yellow: Status DI 4
Figure 168: Block Diagram EP-5324
