Detailed Description of I/O Modules 287
Attention
The module can be destroyed!
The Voltage between C/Q and L- Must not exceed the voltage between
L+ and L-
• If the connected I/O Link devices uses the C/Q input, you have
to support the I/O Link device via L+ and L- on same plug only.

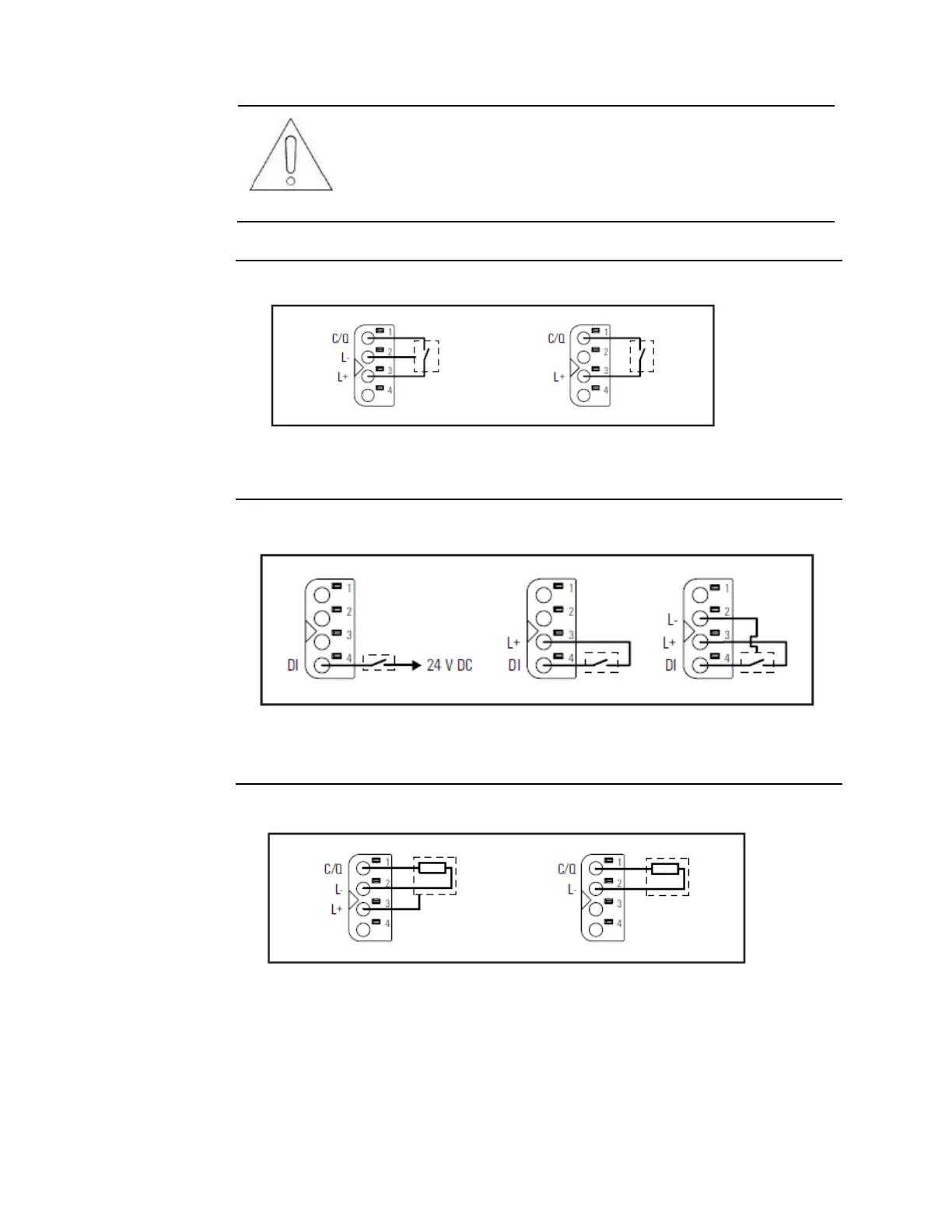

Connecting sensor to C/Q
Figure 165: Connecting sensor to C/Q
Connecting sensor to DI
Figure 166: Connecting sensor to DI
Connect load to C/Q
Figure 167: Connecting load to C/Q
