Emerson PACSystems RSTi-EP - Calculation of Space Requirements

User Manual Section 6
GFK-2958L May 2021
Installation 405

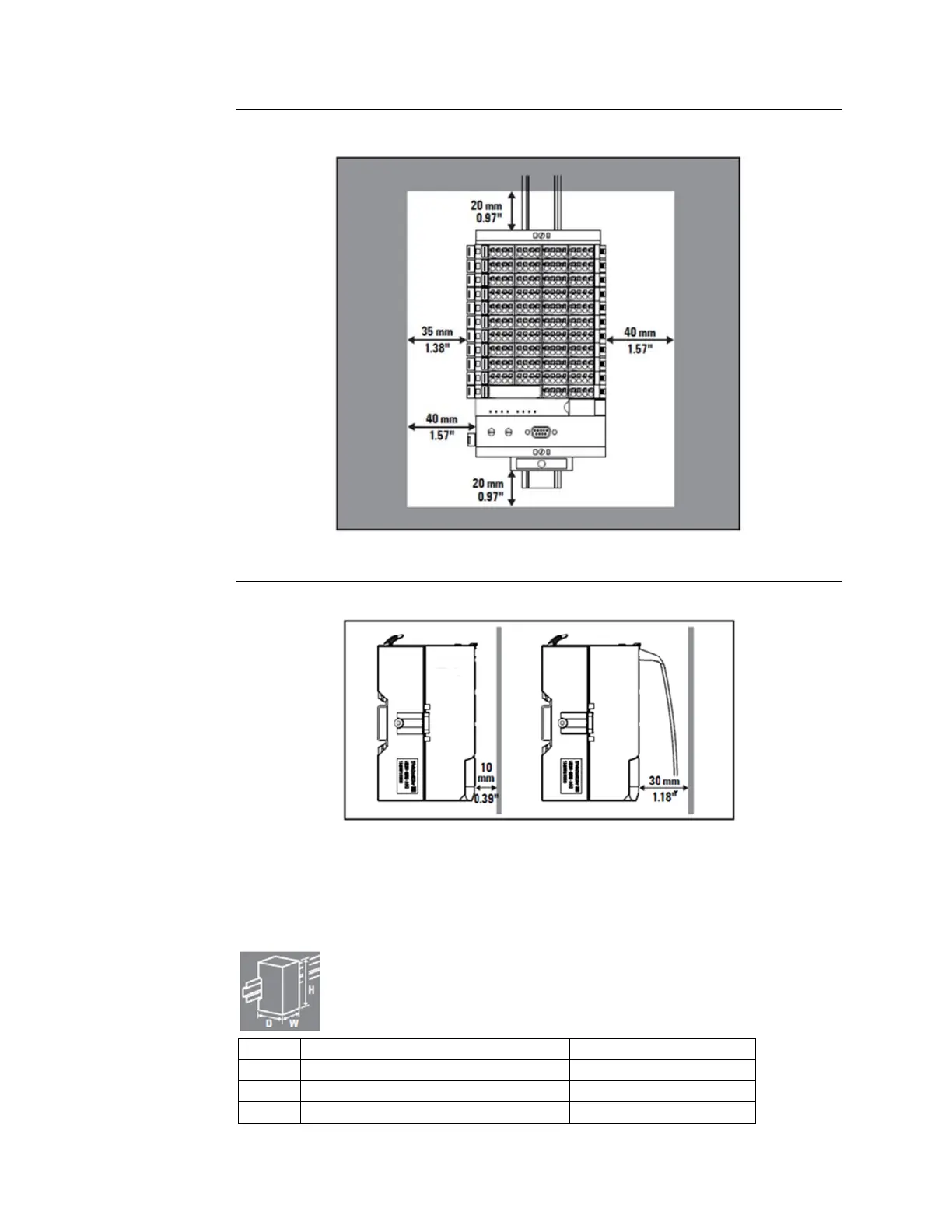

Figure 238: Clearances with Vertical Installation
Figure 239: Minimum Distance to Switch Cabinet Door (with/without Swivel Marker)
6.1.8 Calculation of Space Requirements
The space requirements for a RSTi-EP station with n modules (horizontal installation) is
calculated as follows:
Height:
120 mm (4.72”)
+ 2 x 40 mm (1.57”)
distances at top and bottom
= 200 mm (7.87”)
Width:
8 mm (1.57”)
end bracket
