Emerson PACSystems RSTi-EP - Configuring EPXMBE001;EPXMBE101; Configuring EPXEIP001

User Manual Section 8
GFK-2958L May 2021
Commissioning 446

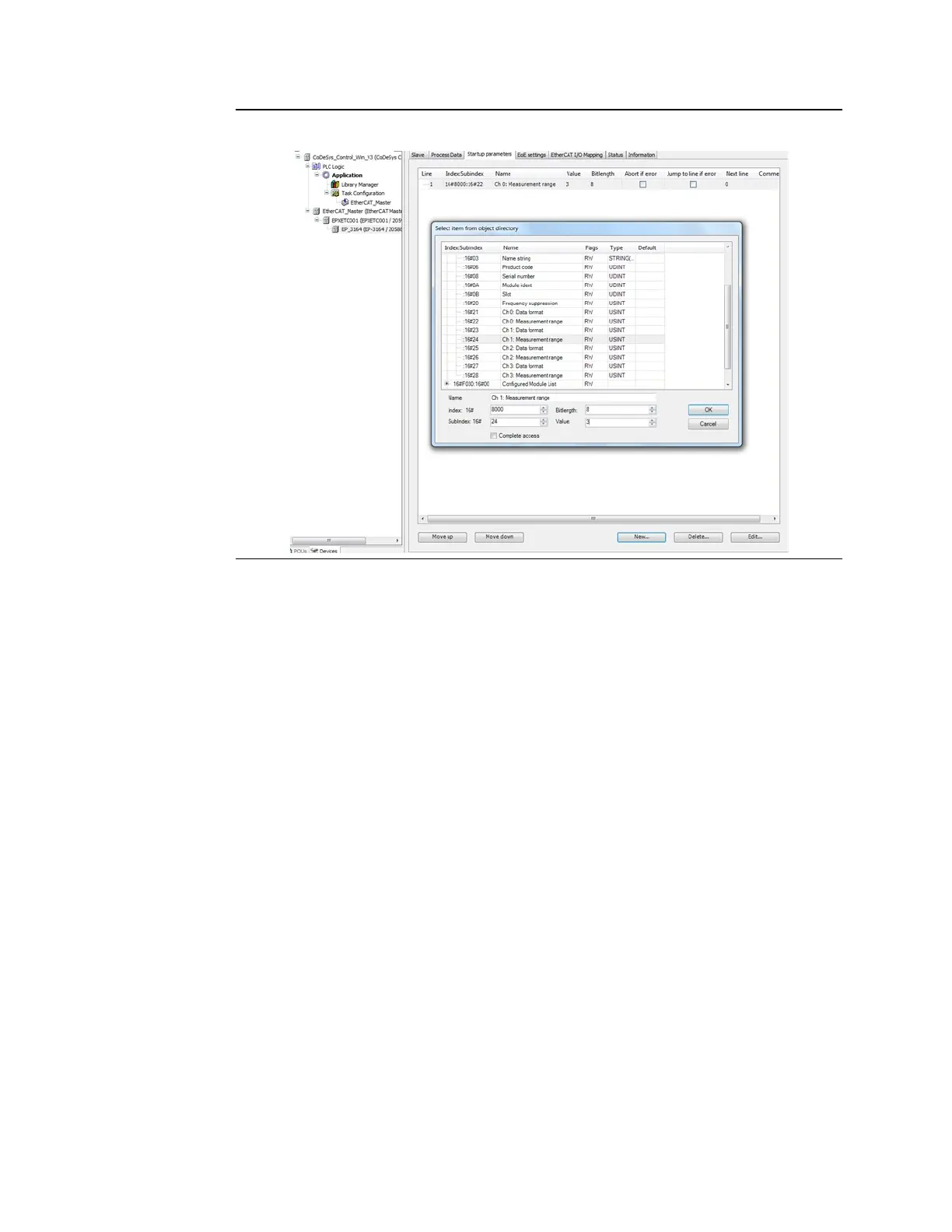

Figure 292
8.5 Configuring EPXMBE001/EPXMBE101
The Modbus/TCP Network Adapter, EPXMBE001/EPXMBE101, Modbus/TCP register
mapping is automatically determined by the I/O modules included in the physical
configuration. Network Adapter and I/O Module parameters are configured using the
Network Adapter Web Server interface. Refer to Section Modbus®TCP Network Adapter
EPXMBE001/EPXMBE101 for more information on the automatic Modbus/TCP register
mapping. Refer to Section 9: Web Server, for more information on editing the Web Server
interface of the Network Adapter and I/O Module parameters.
8.6 Configuring EPXEIP001
The RSTi-EP EtherNet/IP network adapter EPXEIP001 is configured as Generic Ethernet
Module under EtherNet/IP Scanner using the EDS (Electronic data sheet) file. Network
Adapter and I/O Module parameters are configured using the Network Adapter Web Server
interface. IP address of the network adapter and connection parameters should be
configured. Refer to section, Process data EPXEIP001 for more details.
Adapter is configured under EtherNet/IP Scanner as Generic Ethernet module using the
input assembly 101 and output assembly 102. The input and output data size for this
assembly are 2 bytes.
