User Manual Section 5
GFK-2958L May 2021
Detailed Description of I/O Modules 398
5.42 0-V Potential Distribution Module for Output
Current Path EP-750F

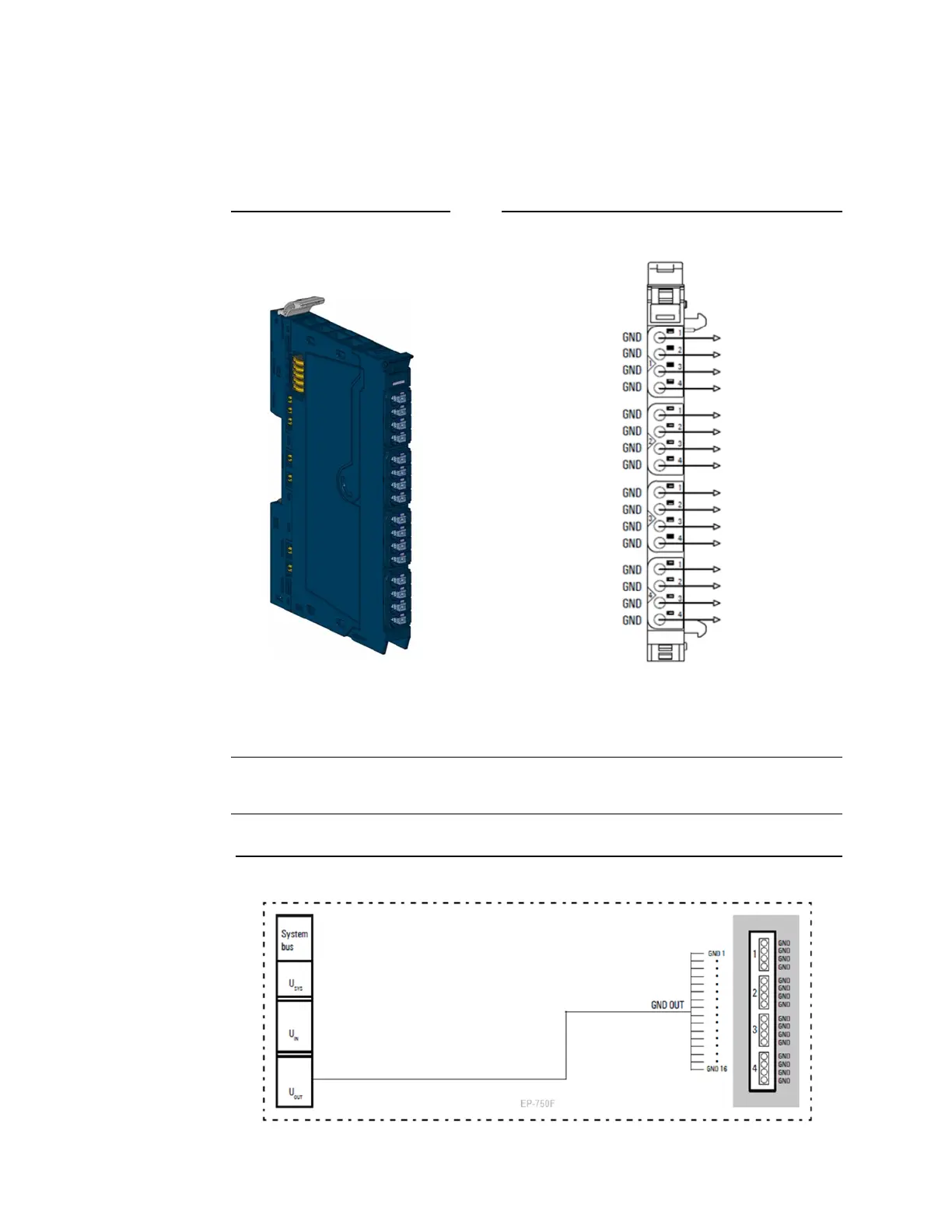

Figure 230: 0V Potential
Distribution Module for the
Output Current Path EP-750F
Figure 231: Connection Diagram EP-750F
The potential distribution module EP-750F provides 16 connections for ground from the
output current path. Potential distribution modules are passive modules without fieldbus
communication, therefore they are not considered during configuration.
Note: A maximum of three passive modules (power-feed module, potential distribution module, and
empty slot module) may be installed in succession, however the next module to be installed must be
an active module.
Figure 232: Block Diagram EP-750F
