User Manual Section 8
GFK-2958L May 2021
Commissioning 449
2. Profibus EPXPBS001
1.
To configure EPXPBS001 with latest GSD file refer to Section, “Configuring
EPXPBS001”
2.
Double-click the EPXPBS001 module in the module list.
The EPXPBS001 window opens.
3.
Double-click the EP-5324 module in the module list.
4.
Click on the Properties
5.
Select the General Parameters tab
The list of all parameters is displayed.

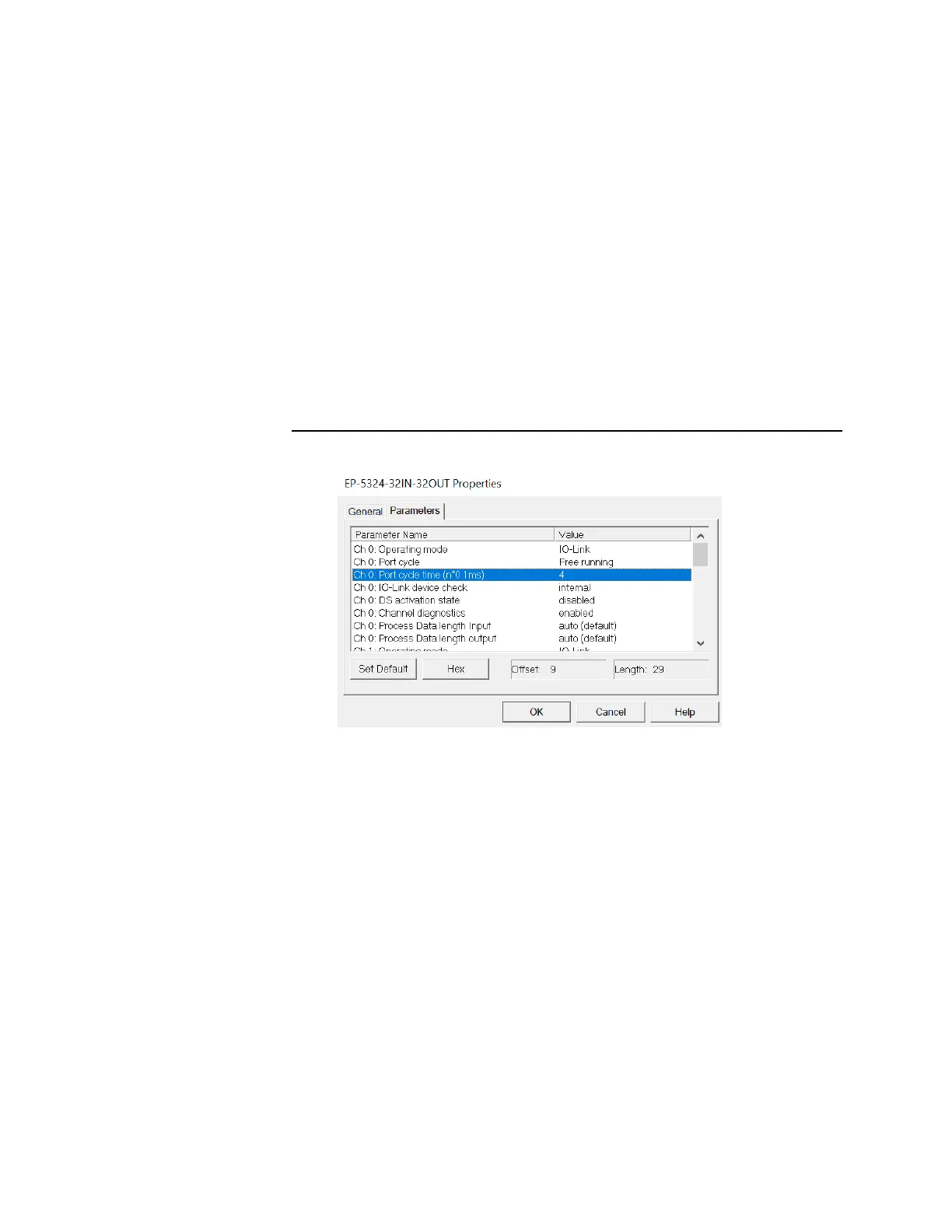

Figure 294 Editing module parameters
6.
Click the parameter that you would like to change and
7.
Set the “Operating mode” parameter of the IO-Link port to
8.
the value “IO-Link”.
9.
Set each of the parameters “Process data length input”
10.
and “Process data length output” to the value “auto”.
11.
Use this method to edit all of the parameters that you
12.
want to change.
13.
Click OK to save the settings.
All settings only take effect once they have been loaded into the component.
3. Modbus EPXMBE001/EPXMBE101
1.
To configure the Modbus network adapter, Refer to Section, “Configuring
EPXMBS001/EPXMBE101”
