Detailed Description of I/O Modules 196

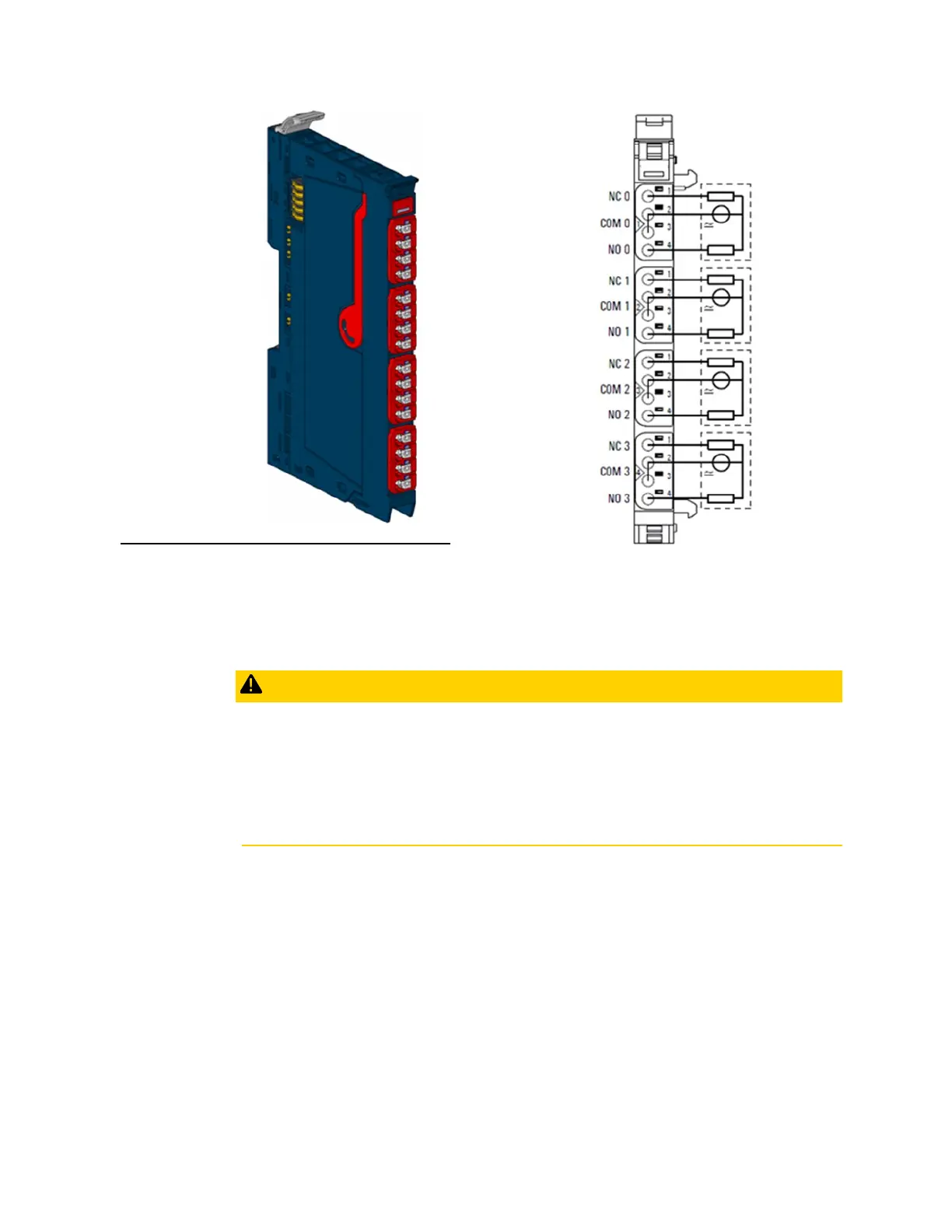

Figure 100: Connection Diagram EP-2714
The digital relay output module EP-2714 can control up to 4 discrete outputs, each with a
maximum of 6A. Each connector features a potential-free changeover contact. The relay
coils are supplied with power from the output current path (I
OUT
).
CAUTION
When using relay modules EP-2714 in explosive atmosphere:
•
Condensation shall be avoided.
•
If the switching voltage exceeds 63 V, a transient protection device shall be
provided that, limits the transients to a peak voltage of 500V or less.
