Introduction 9

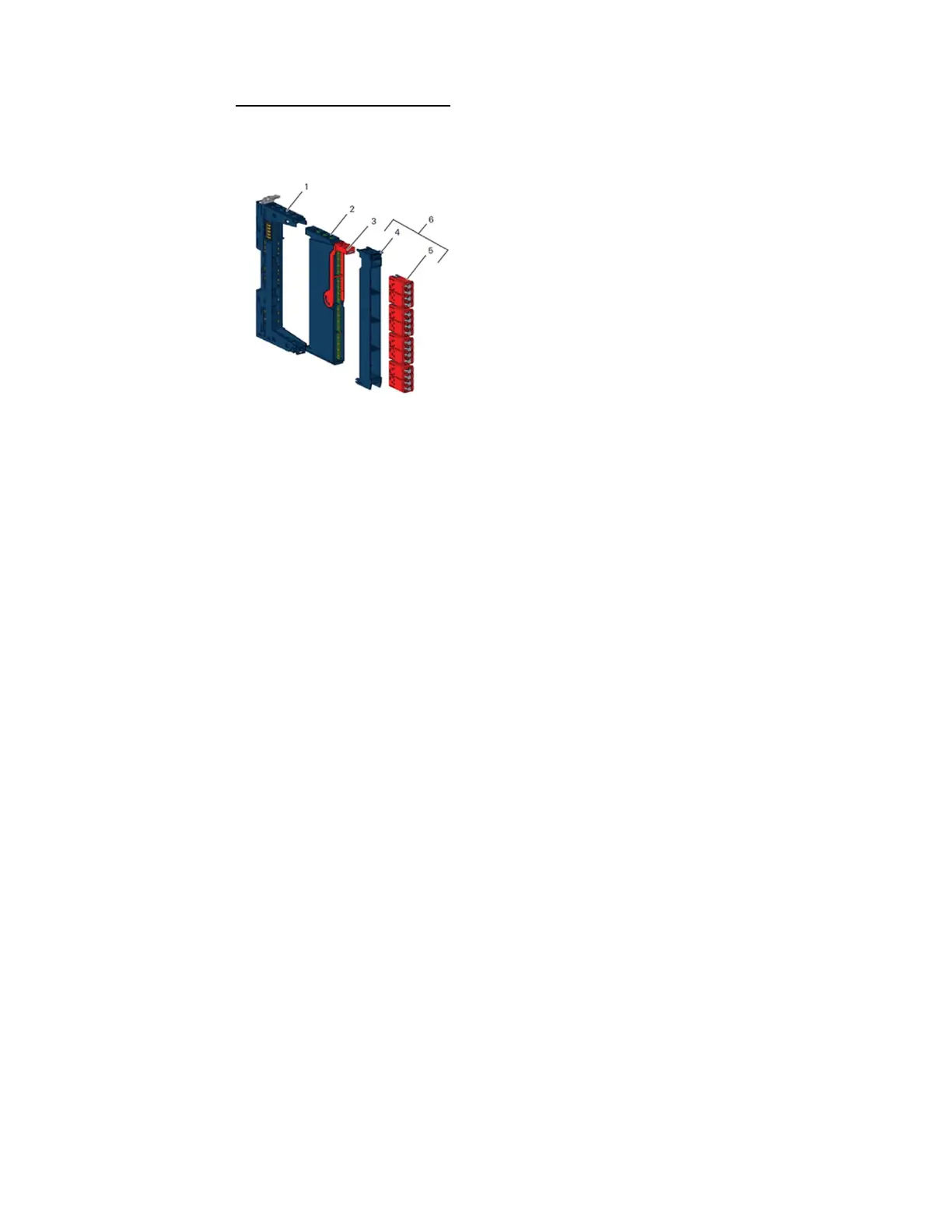

Figure 3: I/O Module
Components
1. Basic module
2. Electronic unit
3. Removal lever for electronic unit
4. Connector frame
5. Connector
6. Plug-in unit
Color Coding
The removal levers for the electronic unit and the connectors are color-coded as follows:
•
Blue standard
•
White power supply
•
Red 230 V
•
Yellow SIL products
A detailed description of the individual module types is available under Section 5, Detailed
Description of I/O Modules.
