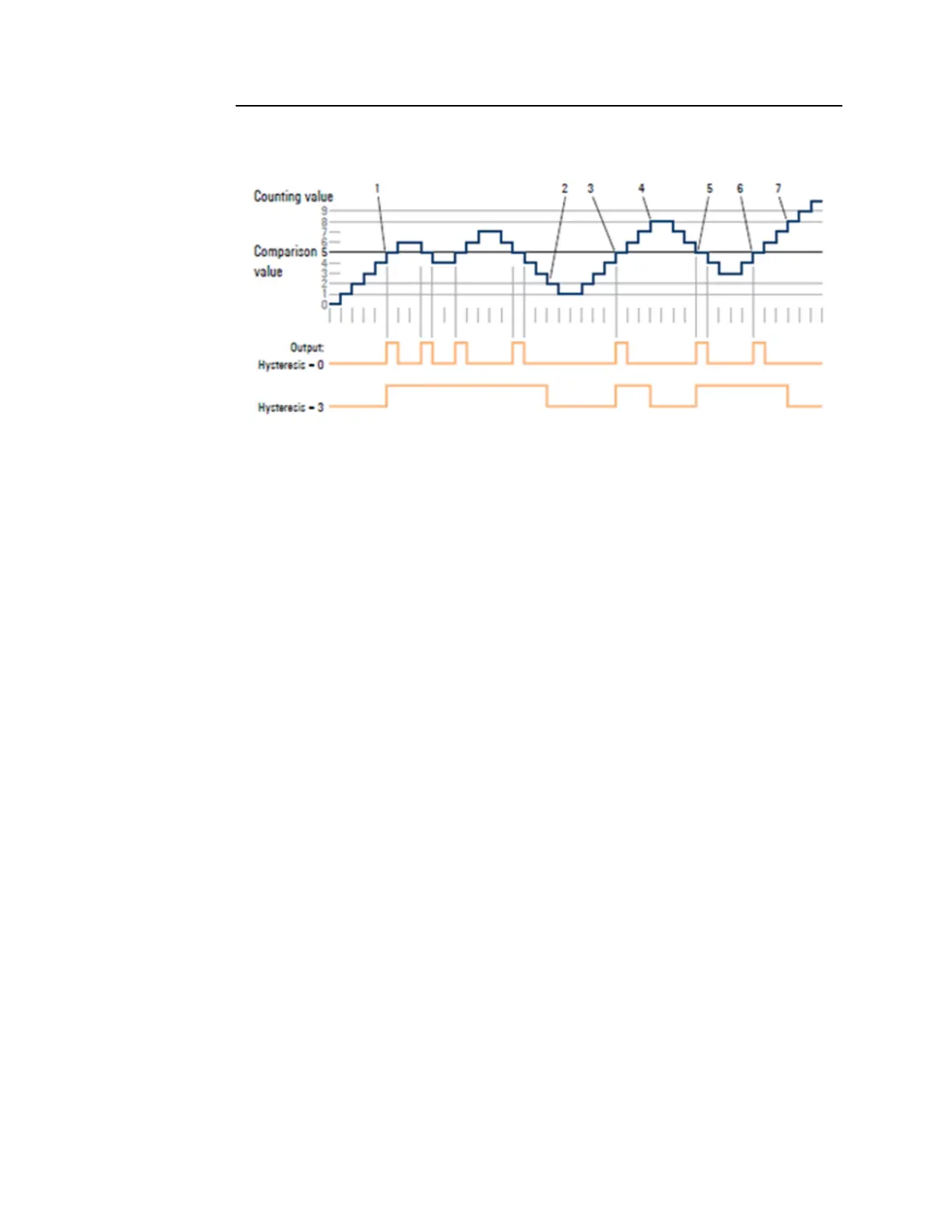

Figure 136: Operating Principle of the Hysteresis with Counter Value = Comparison
Value
1.
Comparison condition met
➝
status bit is set and hysteresis activated
2.
Comparison condition not met, leaving the hysteresis range
➝
status bit is reset
3.
Comparison condition met
➝
status bit is set and hysteresis activated
4.
Leaving the hysteresis range and comparison condition not met
➝
status bit is
reset
5.
Comparison condition met
➝
status bit is set and hysteresis activated
6.
Comparison condition met and hysteresis active
➝
status bit remains set
7.
Leaving the hysteresis range and comparison condition no longer met
➝
status
bit is reset
