User Manual Section 8
GFK-2958L May 2021
Commissioning 436
2.

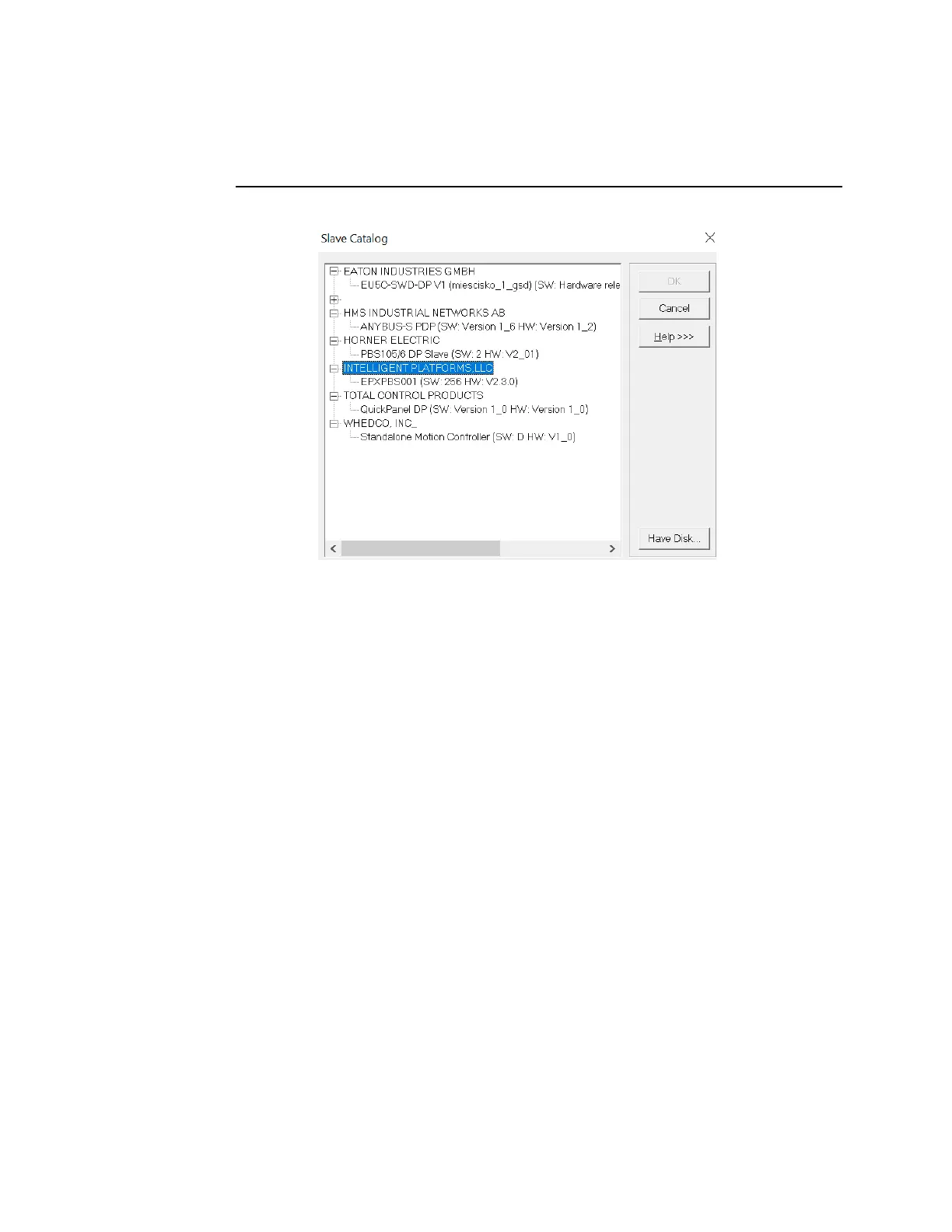

In the Navigator window, right-click the EPXPBS001 and select Add Slave. The Slave
Catalog dialog box displays. This dialog box lists the slave devices that are available
to configure in the PROFIBUS network.
Figure 279
3.
Select a slave device and click OK. The Slave Properties dialog box displays.
Note: If the slave module is not in the list but you have a GSD file for it, click Have Disk.
