User Manual Section 10
GFK-2958L May 2021
Replacing Components 484

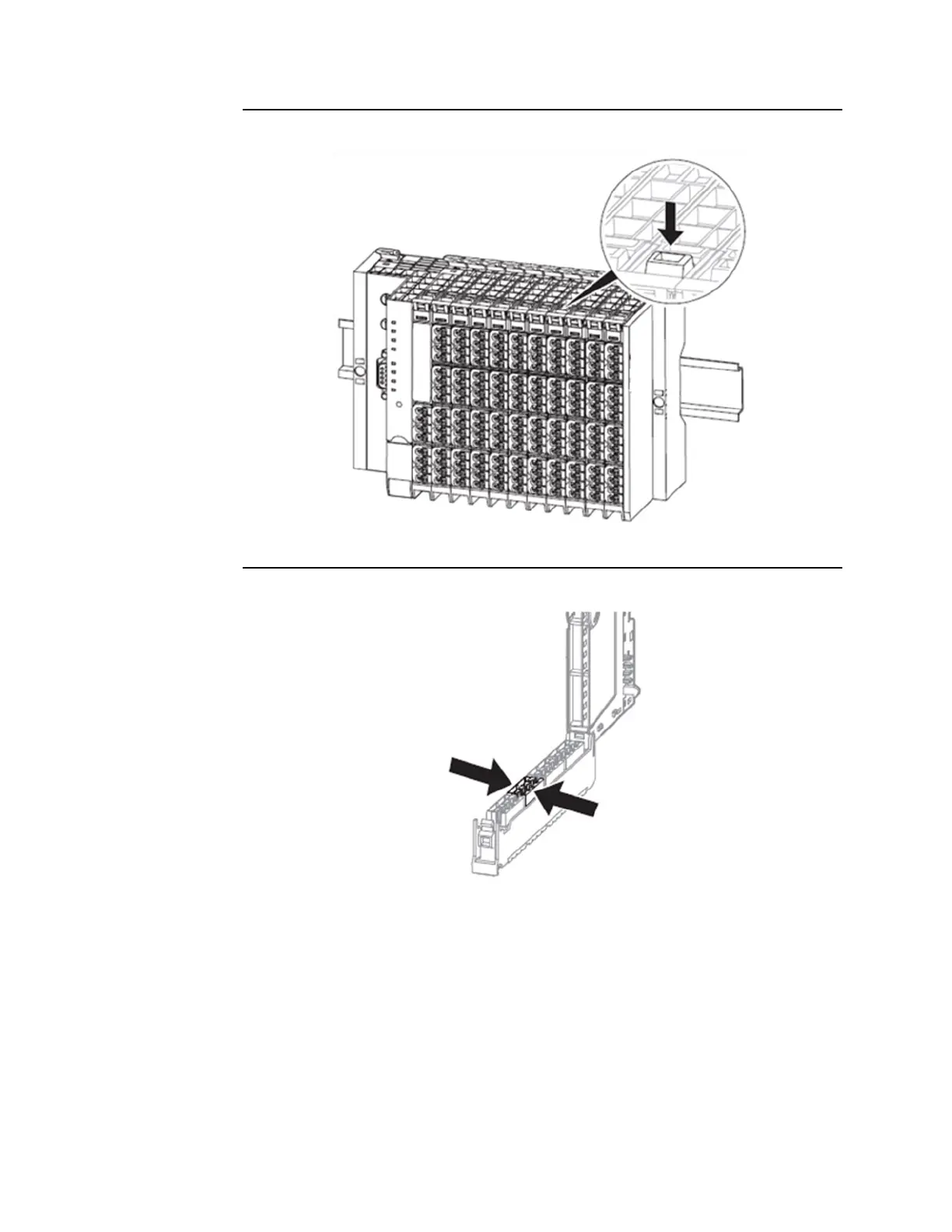

Figure 340: Access the Connector
2.
Press both sides of the connector together so that it can be slid off the frame.
Figure 341: Remove the Connector
3.
Remove the connector by pulling it off.
4.
Insert the new connector in the frame so that it audibly clicks into place.
5.
Swivel the plug-in unit upwards until the connector frame clicks into place
