ETC Element 2 User Manual

Patch 193
•
Labels
•
Open
•
Open/Color N
•
Blackout
•
Animation
•
Animation N
•
Color
•
Color N
•
Color M/N
•
Color N/Open
•
Effect
•
Effect N
•
Gobo
•
Gobo N
•
(clear)
Units are used to add a degree or percentage symbol to the end of a label when it displays in
the encoder display or MLcontrols. If you want to remove a unit, select (none).
Labels are used to replace the text for all of the ranges. Labels that have an Nafter them will
display the appropriate number in the encoder display or MLcontrols. For example, Gobo N
will display the number of the gobo. Select (clear) to remove the labels.
Modes

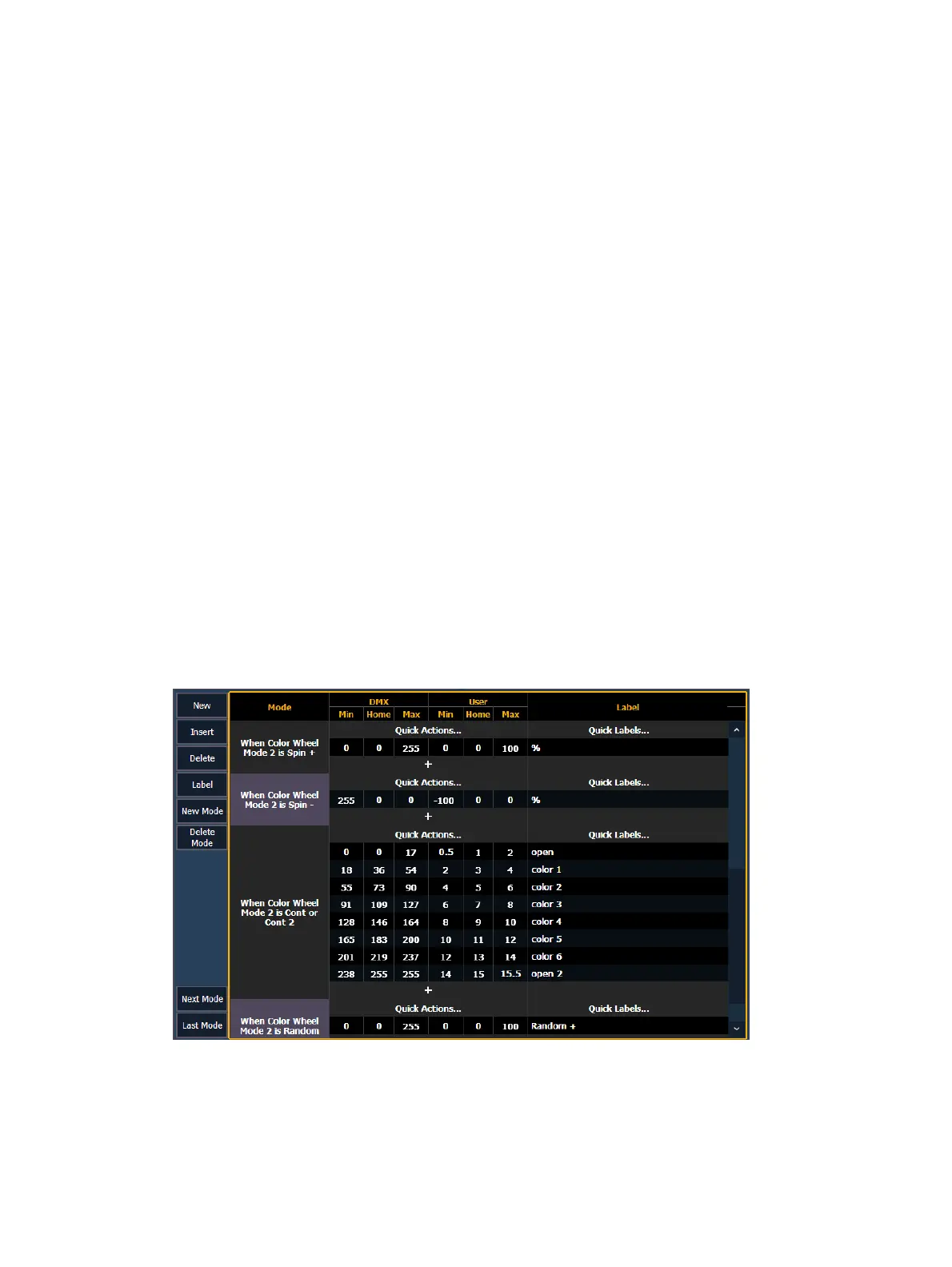

A mode is a collection of ranges that will display in the encoder display and in MLcontrols
when the mode's conditions are true. These ranges are part of one DMXaddress that is used
to control two or more different by related functions, such as gobo index and rotate.
Examples of mode conditions are "When Gobo Mode is Indexed" or "When Strobe Mode is
Random". Multiple conditions can be assigned. An example of this would be "When Gobo
Wheel Mode is Index or Index Scan".
When viewing a fixture profile, the parameters that have modes will display the number of
modes in the ranges column.

ETC Element 2 Specifications

General

DMX Outputs	2
Touchscreen	Yes
Networking	Ethernet
Type	Lighting Control Console
Master Faders	2
Encoders	4
Ethernet Ports	2
USB Ports	4
Video Output	DisplayPort
Power Input	100-240VAC, 50/60Hz
Power Supply	Internal
Control Channels	6144
Output	Art-Net
Display	Multi-Touch LCD
Storage	Solid State Drive (SSD)
