ETC Element 2 User Manual

24 Eos Apex, Eos Ti, Gio, Gio @5, Ion Xe, Ion Xe 20, and Element 2 User Manual
Record Targets
•
10,000 Groups
•
10,000 x 4 Palettes (Intensity, Focus, Color and Beam)
•
10,000 Presets
•
10,000 Effects
•
99,999 Macros
•
10,000 Snapshots
•
10,000 Curves
•
10,000 Color Paths
Faders
•
1 dedicated motorized master playback pair, with Go and Stop/Back
•
10 motorized fader slots configurable as playbacks, submasters, grandmasters, timing
masters, effects masters, targets, or target lists
•
100 virtual pages of 10 faders each
•
200 configurable cue playbacks, with Go and Stop /Back
•
999 configurable submasters, with Bump and Assert/ channel select
Eos Apex 20 Overview
This page provides an overview of the physical layout, components, and capacities of the Eos
Apex 20 console.

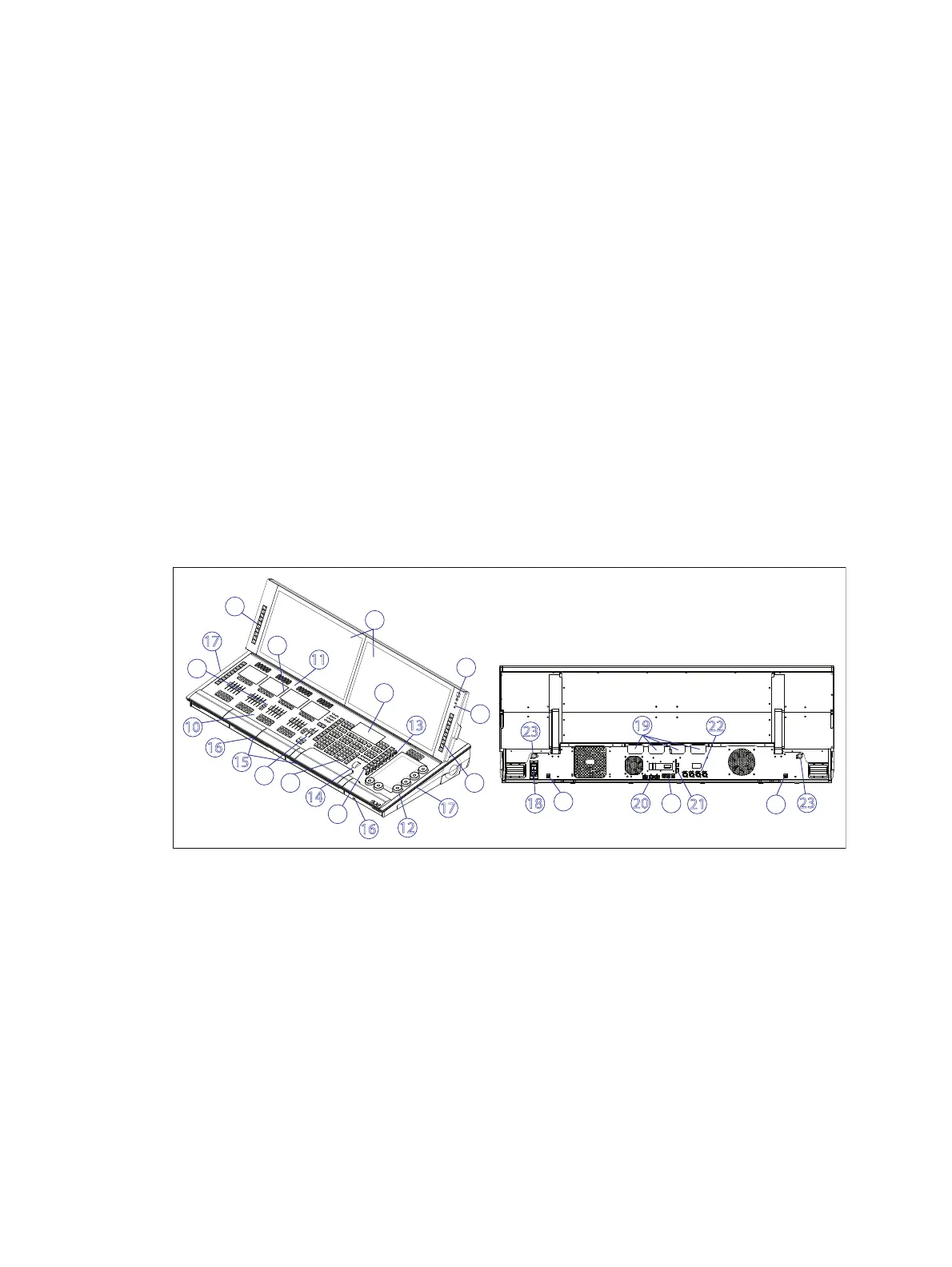

Eos Apex 20 Layout
2
21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
19
20
18
22
23
6
6
16
2
23
2
•
1. Power button
•
2. USB-A&USB-C (data)
•
3. Internal touchscreen
•
4. Keypad
•
5. Keypad touchscreen
•
6. Target keys
•
7. Main playbacks
•
8. Motorized faders
•
9. Fader touchscreen
•
10. Configurable fader buttons
•
11. Endless fader wheels
•
12. Encoders
•
13. Mini encoders
•
14. Level wheel
•
15. Keyboard / accessory tray
•
16. USB-A (power only)
•
17. Book lights
•
18. Hard power switch /IECsocket
•
19. IOgarage
•
20. Display Port
•
21. SFP+
•
22. Ethernet
•
23. Littlite

ETC Element 2 Specifications

General

DMX Outputs	2
Touchscreen	Yes
Networking	Ethernet
Type	Lighting Control Console
Master Faders	2
Encoders	4
Ethernet Ports	2
USB Ports	4
Video Output	DisplayPort
Power Input	100-240VAC, 50/60Hz
Power Supply	Internal
Control Channels	6144
Output	Art-Net
Display	Multi-Touch LCD
Storage	Solid State Drive (SSD)
