Rotate Tool
Allows you to rotate objects around the X/Y/Z axes.
Local Tool
Toggles Move and Rotate object tools between global XYZ orientation and object
XYZorientation. Scale is always performed relative to the object's Local
XYZorientation.
•

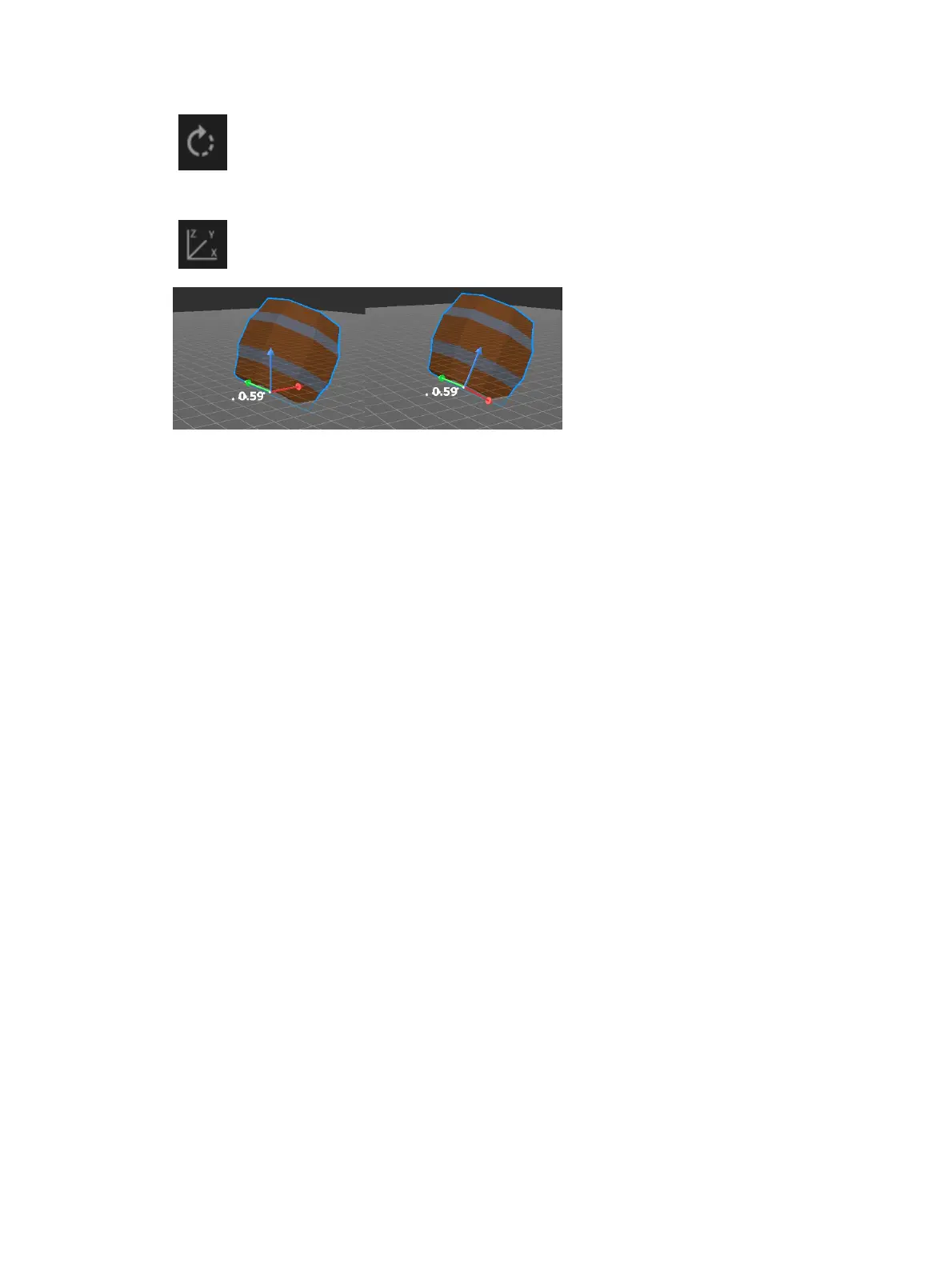

On the left barrel, Local is toggled off, so the Move tool orients itself based on the
Augment3d model.
•
On the right, Local is toggled on, so the Move tool orients itself relative to the position
of the barrel itself.
Performance Indicator
This color-coded dot on the toolbar indicates Augment3d's current quality and performance
level.
•
High - 25 FPS and higher
•
Medium - 20 to 24 FPS
•
Low - 15 to 19 FPS
•
Very Low - 10 to 14 FPS
•
Poor - 10 FPS and lower

ETC Element 2 Specifications

General

DMX Outputs	2
Touchscreen	Yes
Networking	Ethernet
Type	Lighting Control Console
Master Faders	2
Encoders	4
Ethernet Ports	2
USB Ports	4
Video Output	DisplayPort
Power Input	100-240VAC, 50/60Hz
Power Supply	Internal
Control Channels	6144
Output	Art-Net
Display	Multi-Touch LCD
Storage	Solid State Drive (SSD)
