Issue 4.5 August 2005 Hand-Held Terminal (HHT) 10-10
Pr ess
to remove user codes from
controller and transfer to HHT.

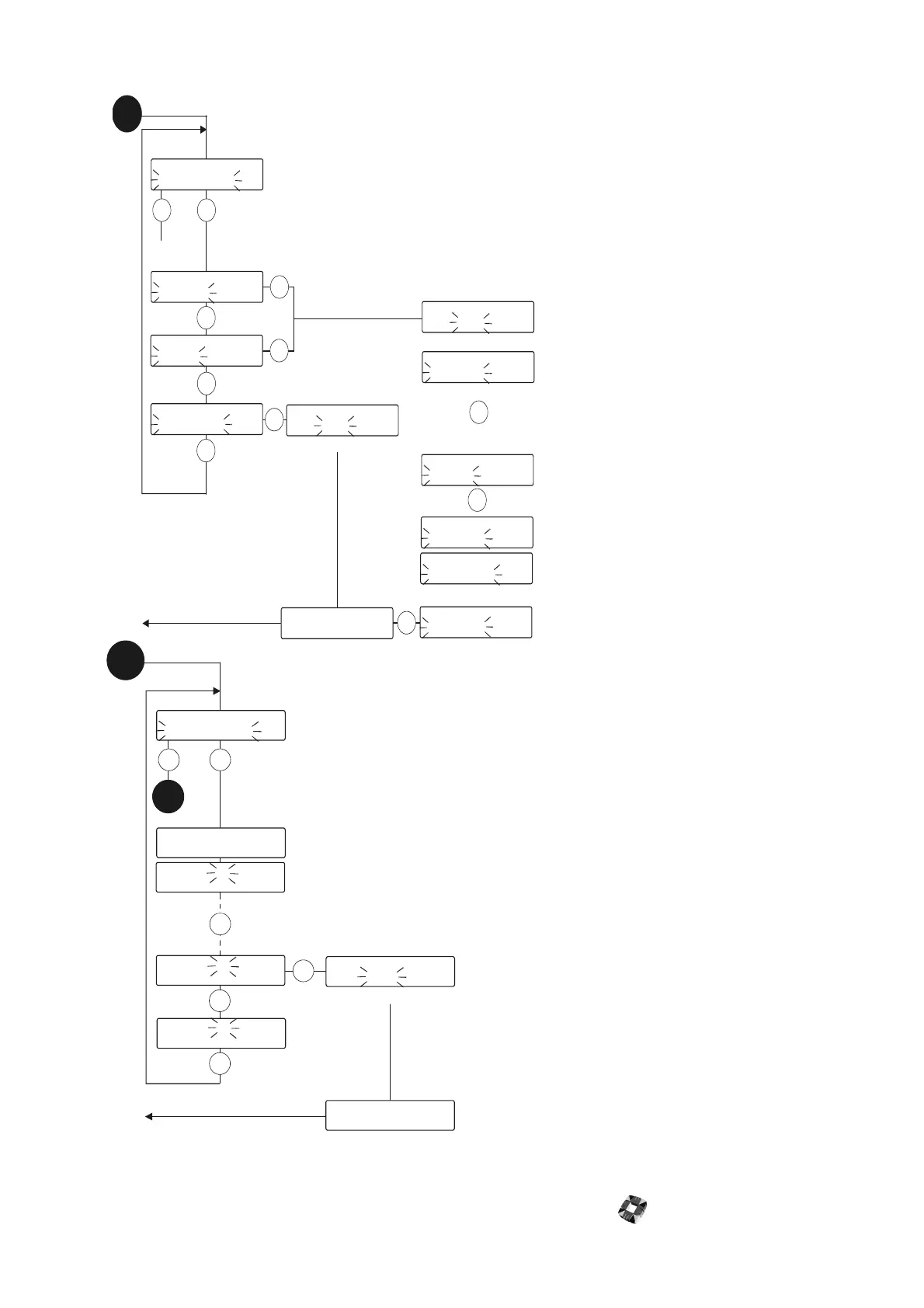

FILE FROM PANEL:
S-PORT = 2400 EVEN 8 1 ?
3GS PANEL ON-LINE !
NORMAL UPLOAD ?
3GS PANEL ON-LINE !
DESCRIPTIONS UPLOAD ?
UPLOAD IN PROGRESS
FILE 7 LITERAL x
UPLOAD IN PROGRESS
FILE 7 LITERAL x
UPLOAD IN PROGRESS
READ/WIPE CODES ?
UPLOAD IN PROGRESS
ARE YOU SURE ?
UPLOAD IN PROGRESS
FILE 7 USER OPTION x
UPLOAD IN PROGRESS
CLEARI NG PANEL CODES x
UPLOAD IN PROGRESS
FILE 7 UPLOADED OK !
NO
UNSET
UNSET
YES
YES
UNSET
YES
YES
YES
3GS PANEL ON-LINE !
FULL UPLOAD ?
3GS PANEL ON-LINE !
NODE DATA UPLOAD ?
(where x = number of user options/codes)
(where x = literal files)
(where x = literal file number)
YES
YES
Up
FILE TO PANEL:
S-PORT = 2400 EVEN 8 1 ?
3GS PANEL ON-LINE !
DOWNLOAD TO PANEL
FILE 2 LITERAL x
DOWNLOAD TO PANEL
FILE 2 DOWNLOADED OK!
NO
UNSET
YES
UNSET
(where x = literal files)
YES
DOWNLOAD FILE 1 ?
DESCRIPTI ONS 0. 9K
UNSET
DOWNLOAD FILE 2 ?
PRINTOUT 46.4K
DOWNLOAD FILE 3 ?
NORMAL UPLOAD 4.7K
Pr ess
to scroll through files:
Down
Utilities
