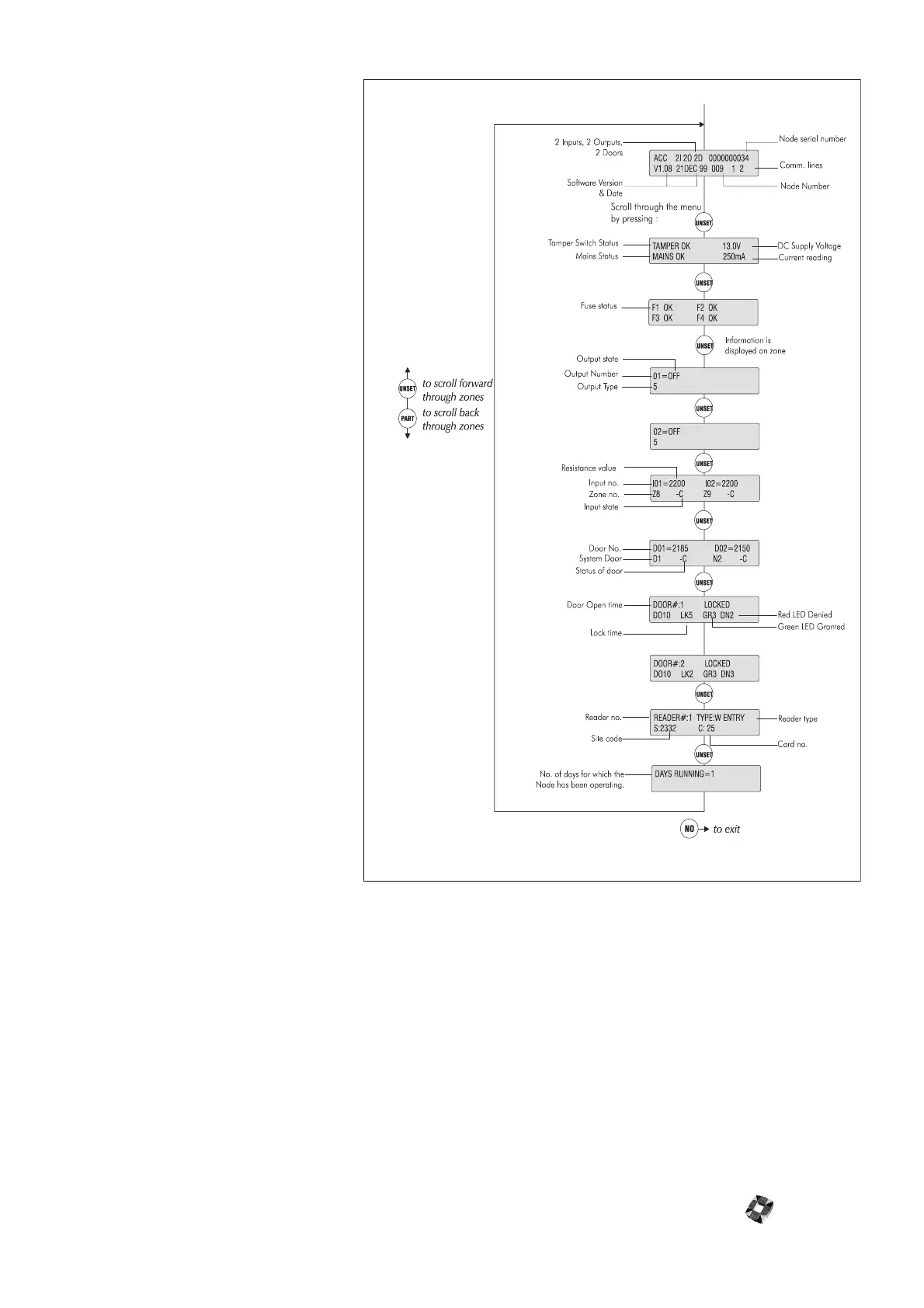

Diagnostic Menu: Access
Control Node
This menu provides you with data on
the access node’s current
configuration and allows monitoring
of node and PSU parameters. This
information includes inputs, outputs,
door inputs, door outputs, cards,
fuse, and tamper status.
It can be utilised to interrogate the
status of the node without having to
remove the cabinet lid, thus avoiding
interfering with cables and the need
to use a voltmeter for measuring
node voltage and currents.
It can be accessed using the HHT
infrared. Alternatively, the same node
information can be accessed through
the Node Configure menu - Monitor
submenu. See Node Configure-
>Nodes->Information->Monitor in
3GS Programming for further
information.
Note For further information on
HHT menus, see Hand Held
Terminal in 3GS Peripherals.
